Tractor · 2006Unverified

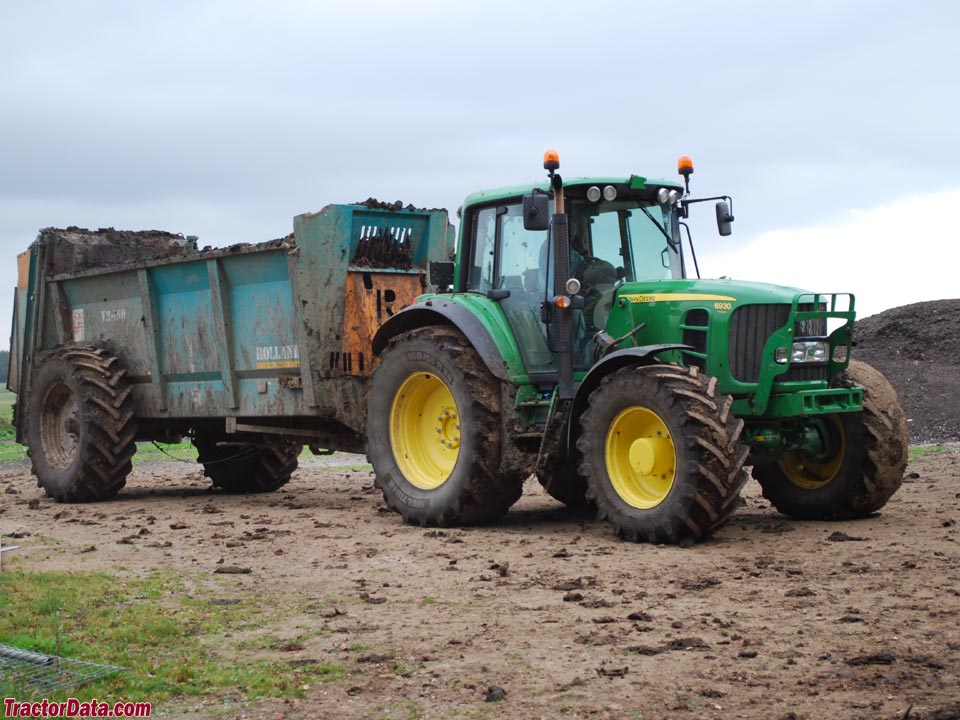

John Deere 6930

Name: John Deere 6930
Brand: John Deere

John Deere 6930 — Model year 2006-20082009-2011 · 155 hp. Reference specifications; pending source verification.

The John Deere 6930 is a tractor model with a rating of 155 hp, categorising it among the higher-powered machines in its class. It was produced from 2006 to 2011. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power through four-wheel drive via a powershift transmission. Its listed weight is 5633 kg, and it is suited for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Max power

163 hp

Weight

5633 kg

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

155 hp

Recorded weight

5633 kg

Transmissions

20-speed partial power shift

Production years

2006-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Four-wheel driveReference

Differential lockrear electro-hydraulic wet discReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine (gross)115.6 kWReference

Engine (net)111.9 kWReference

Engine (max)121.5 kWReference

John Deere 6068HL281Reference

turbocharged dieselReference

6-cylinder 12-valveReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier IIIReference

Rated Power (net)111.9 kWReference

Rated Power (gross)115.6 kWReference

Maximum Power (net)117.8 kWReference

Maximum Power (gross)121.5 kWReference

Fuel systemhigh-pressure common rail injectionReference

Cooling systemviscous fanReference

Air cleanerdry elementReference

Rated RPM2100Reference

Idle RPM850-2250Reference

Operating RPM1500-2100Reference

Torque695.6 NmReference

Torque RPM1500Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity19.5 LReference

Oil change500 hReference

Coolant capacity28.0 LReference

Coolant change3000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Emissions complianceTier IIIReference

Bore and stroke4.19x5.00 inchesReference

Interval for engine oil change500 hReference

Interval for engine coolant change3,000 hReference

Transmission

20-speed partial power shiftReference

32-speed partial power shiftReference

TransmissionJohn Deere PowrQuad PlusReference

Typepartial power shiftReference

Gears20 forward and reverseReference

Clutchdual 225mm wet disc PermaClutchReference

Oil capacity50.0 LReference

Four gears (1-4) in five ranges (A-E) with left-hand shuttle lever. Push-button power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are about 4% faster than corresponding forward speeds.Reference

TransmissionJohn Deere PowrQuad Plus CreeperReference

Gears32 forward and reverseReference

Optional creeper adds an additional twelve speeds to the PowrQuad transmission in ranges A-C.Reference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)100.7 kWReference

Hydraulic system50.0 LReference

Typeconstant flowReference

Typepressure and flow compensated optional (PFC)Reference

Capacity50.0 LReference

Pressure200.0 barReference

Pump flow81.0 lpmReference

PFC Pump flow110.1 lpmReference

Rear TypeII/IIINReference

Controlload and depth control with electronic lower-link sensingReference

Rear lift7588 kgReference

Rear lift8563 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1995Reference

Engine RPM540E@1743Reference

Engine RPM1000@1995Reference

Front PTO Type1000Reference

Capacities

Fuel249.8 LReference

Optional Fuel325.1 LReference

Max capacity10500 kgReference

Fuel tank325.2 LReference

Crankcase oil volume20.6 qtsReference

Dimensions

Wheelbase264 cmReference

Weight5633 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length475 cmReference

Width238 cmReference

Height292 cmReference

Front tread162 to 211 cmReference

Rear tread162 to 202 cmReference

Shipping5633 kgReference

Max rear axle7500 kgReference

6930 Serial Numbers

Location:Front-right side of main tractor frame, above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Optional Charging amps154Reference

Battery volts12Reference

General

Make & ModelJohn DeereReference

SCV controlJoystickReference

Hydraulics

Capacity Valves12 valvesReference

Hydraulics Typeconstant flow | pressure and flow compensated (PFC) optionalReference

Maximum operating pressure2,901 psiReference

Rear Hitch category (SAE designation)Category II/IIINReference

Rear Hitch maximum lift capacity7,670.2 kgReference

Rear Hitch Sensing Typeload and depth control with electronic lower-link sensingReference

Power

Max Power163 hpReference

Rated Power155 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Dimensions & weight

Overall Height292.4 cmReference

Overall Length475.7 cmReference

Overall Width238.3 cmReference

Wheels & tyres

Rear Wheel Type20.8R38Reference

Rear wheel tread range63.9 to 79.6 inchesReference

Front Wheel Type16.9R28Reference

Front Wheel tread range63.9 to 83.3 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning.Reference
