Tractor · 2022Unverified

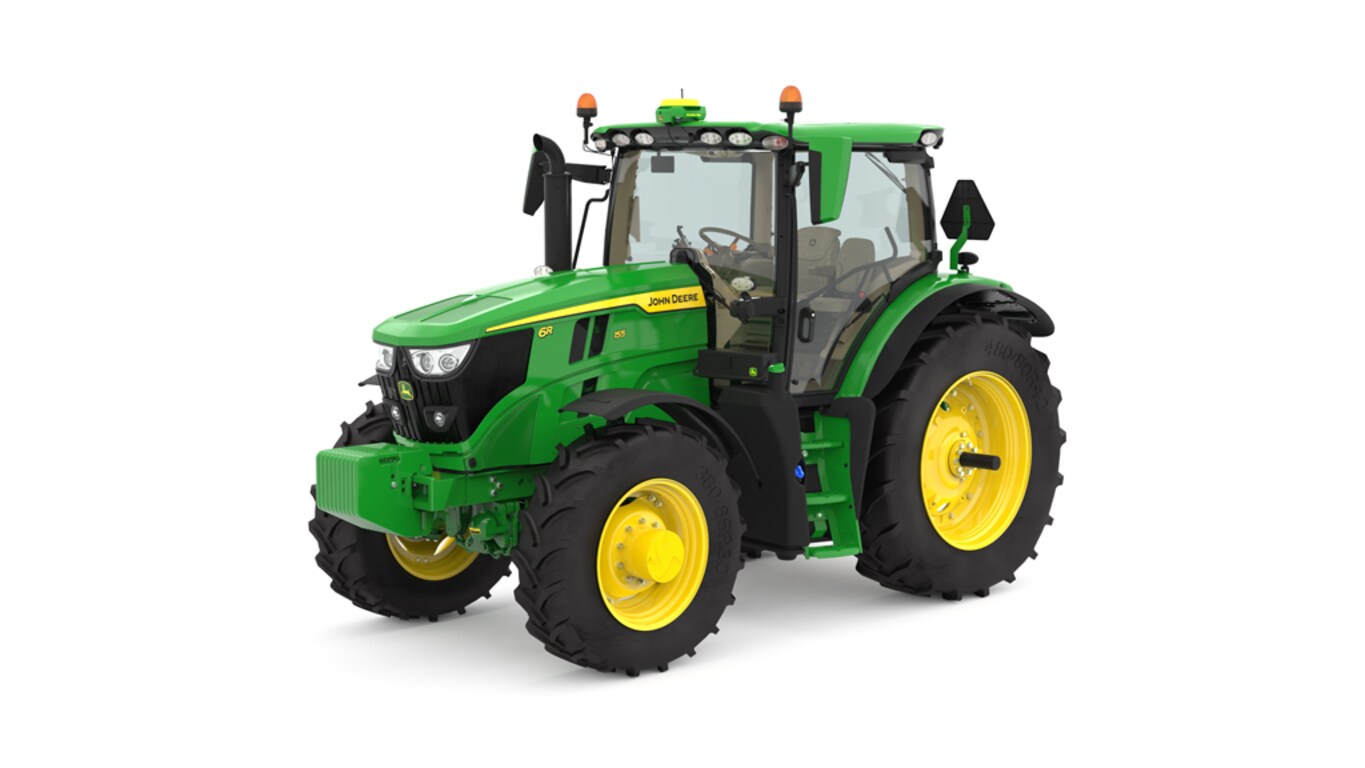

John Deere 6R 155

Name: John Deere 6R 155
Brand: John Deere

John Deere 6R 155 — 6R Series · 153 hp. Reference specifications; pending source verification.

The John Deere 6R 155 is a tractor rated at 153 hp, placing it at the powerful end of its class. It was produced in 2022. Key features include a 6-cylinder turbocharged diesel liquid-cooled engine and a four-wheel drive powershift transmission. The tractor has an operating weight of 7100 kg and is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

153 hp

Max power

168 hp

Weight

7100 kg

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

153 hp

Recorded weight

7100 kg

Transmissions

24-speed 4-speed power shift

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-conditioning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine (gross)114.0 kWReference

Engine (max)125.0 kWReference

John Deere PowerTech PVSReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IVReference

Rated Power (gross)114.0 kWReference

Maximum Power (gross)125.0 kWReference

Torque722.7 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders6Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speedOption 1: 2,100 rpm\\nOption 2: 724 NmReference

Interval for engine oil change750 hoursReference

Interval for engine coolant change6,000 hoursReference

Cooling system28 LReference

Transmission

continuously-variable transmissionReference

24-speed 4-speed power shiftReference

24-speed 8-speed power shiftReference

TransmissionJohn Deere IVTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

TransmissionJohn Deere AutoQuad Plus EcoReference

Type4-speed power shiftReference

Gears24 forward and reverseReference

TransmissionJohn Deere Direct DriveReference

Type8-speed power shiftReference

Transmission TypePower QuadReference

forward and reverse optionsIVTReference

Wheel DriveMFWDReference

Rear Axle Drive TypeInboard planetary three pinionReference

Interval for hydraulic/transmission oil change1,500 hoursReference

PTO & Hydraulics

PTO (claimed)91.0 kWReference

Typeclosed-center PFCReference

Pump flow113.6 lpmReference

Pump flow155.2 lpmReference

Rear TypeIII/IIINReference

Rear lift4169 kgReference

Front HitchIIINReference

Front lift3299 kgReference

Dimensions

Wheelbase276 cmReference

Weight7100 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Alternator size200 ampReference

Battery options12 VReference

Total cold cranking amps1,230 CCA\\nWith cold weather package or IVT: 1,400 CCAReference

General

Make & ModelNJDXL06.8,324Reference

CreeperAvailable with AutoQuadReference

SCV controlJoystick: AvailableReference

Drawbar categoryCategory 2Reference

Drawbar Maximum vertical load3,085-5,400 lbReference

Rear Axle Differential LockElectrohydraulicReference

RadioStandardReference

Country of manufacturerGermanyReference

Type of headlight bulbStandard: 65-W halogen W\\nOptional: LEDReference

Capacities

Capacity415 cu. in.Reference

Fuel tank270 LReference

Diesel exhaust fluid (DEF) tank16 LReference

Crankcase oil volume6.2 U.S. galReference

Power

Max Power168 hpReference

Rated Power155 hpReference

Power boost10 percentReference

PTO

PTO Power122 hpReference

PTO torque rise40 percentReference

Rear PTO PowerAvailableReference

Rear PTO ControlElectrical modulationReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Hydraulics

Pump Rated Output (total)155 l/minReference

Remote Valves8Reference

Number of rear selective control valves (SCVs)fiveReference

Rear Hitch category (SAE designation)3/3NReference

Rear Hitch maximum lift capacity9,193Reference

Rear Hitch Sensing TypeElectrohydraulicReference

Front Hitch category (SAE designation)Category 3NReference

Front Hitch lift capacity beyond lift pointsAt hook ends: 3,300 kg\\n7,275 lbReference

Dimensions & weight

Overall Width1,662 mmReference

Overall weight7,100.1 kgReference

Wheels & tyres

Rear Wheel Type480/80R42 R1/R1W RadialReference

Rear wheel tread rangeMFWD: 1,524-2,235 mm 60-88 in.\\nTLS: 1,524-2,235 mm 60-88 in.Reference

Operator station

Cab AvailabilityAvailableReference

Cab glass area65.77 sq ftReference

Cab space117.59 cu ftReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typeHydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
