Tractor · 2005Unverified

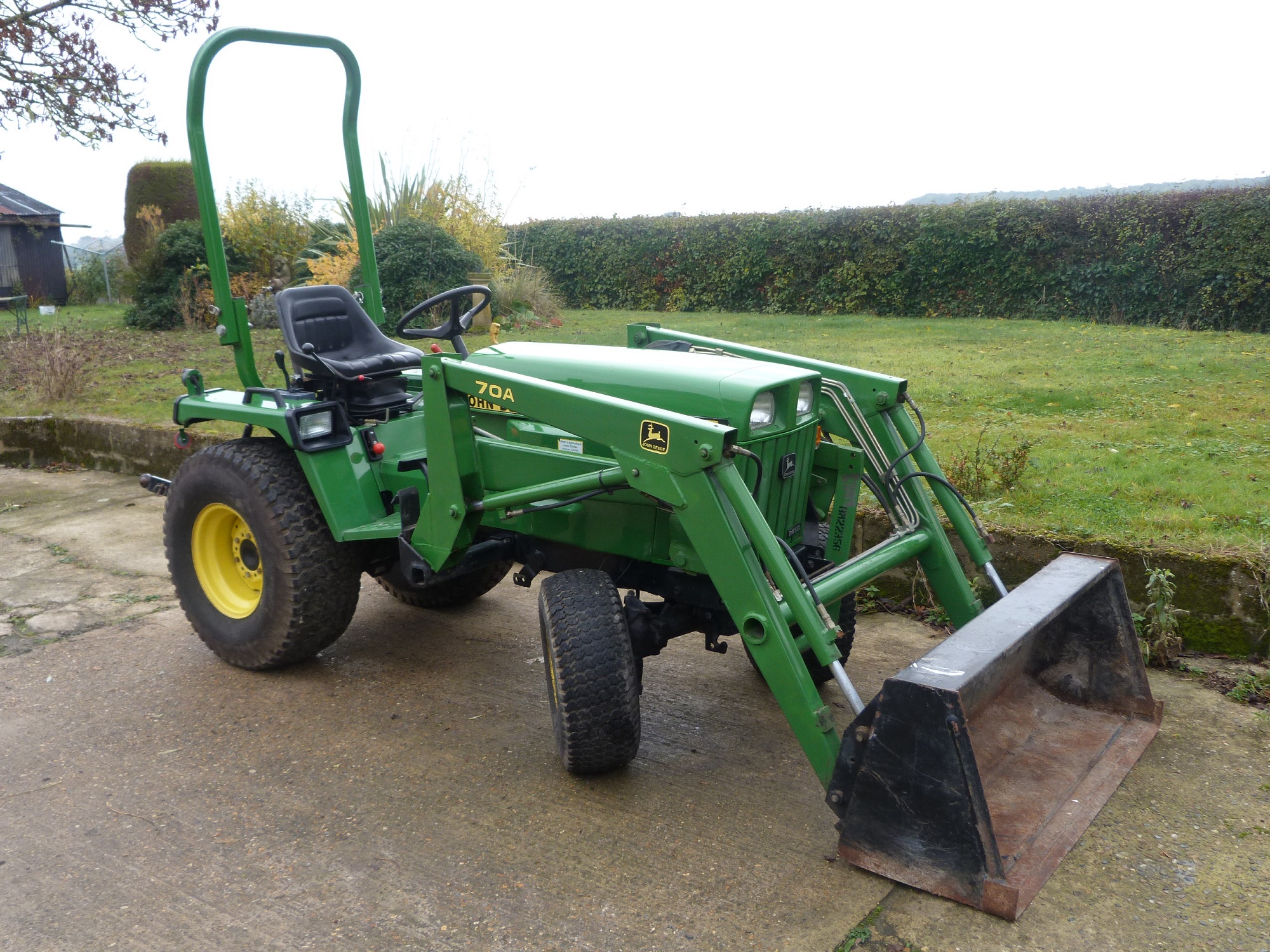

John Deere 70A

Name: John Deere 70A
Brand: John Deere

John Deere 70A — Milenio A Series · 68 hp. Reference specifications; pending source verification.

The John Deere 70A is a tractor with a power rating of approximately 68 hp, typical of a mid-range model in its class. It was manufactured from 2005 to 2015. The 70A is equipped with a 3-cylinder turbocharged diesel engine, which is liquid-cooled and paired with four-wheel drive and a 12-speed gearbox. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

68 hp

Max power

68 hp

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

68 hp

Transmissions

12-speed

Production years

2005-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerGoldiniReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Four-wheel driveReference

Two-post mid-mount folding ROPS.Reference

Engine

VM Motori 2.1L 3-cyl dieselReference

Engine50.7 kWReference

VM Motori D703TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.1 LReference

Bore/Stroke94 x 100 mmReference

Power50.7 kWReference

Air cleanerdryReference

Rated RPM2600Reference

Torque219.7 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Engine torque at rated speed73.5 kgReference

Bore and stroke3.70x3.94 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

Clutchhydraulic dry discReference

forward and reverse options12 F and 4 RReference

Wheel Drive4 WDReference

PTO & Hydraulics

Pressure180.0 barReference

Pump flow49.6 lpmReference

Rear PTO Type540/540EReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelGoldiniReference

Rollover protective structureTwo-post mid-mount folding ROPS.Reference

Country of manufacturerItalyReference

Capacities

Capacity127.1 ciReference

Power

Max Power68 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Hydraulics

Maximum operating pressure2,611 psiReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
