Tractor · 2007Unverified

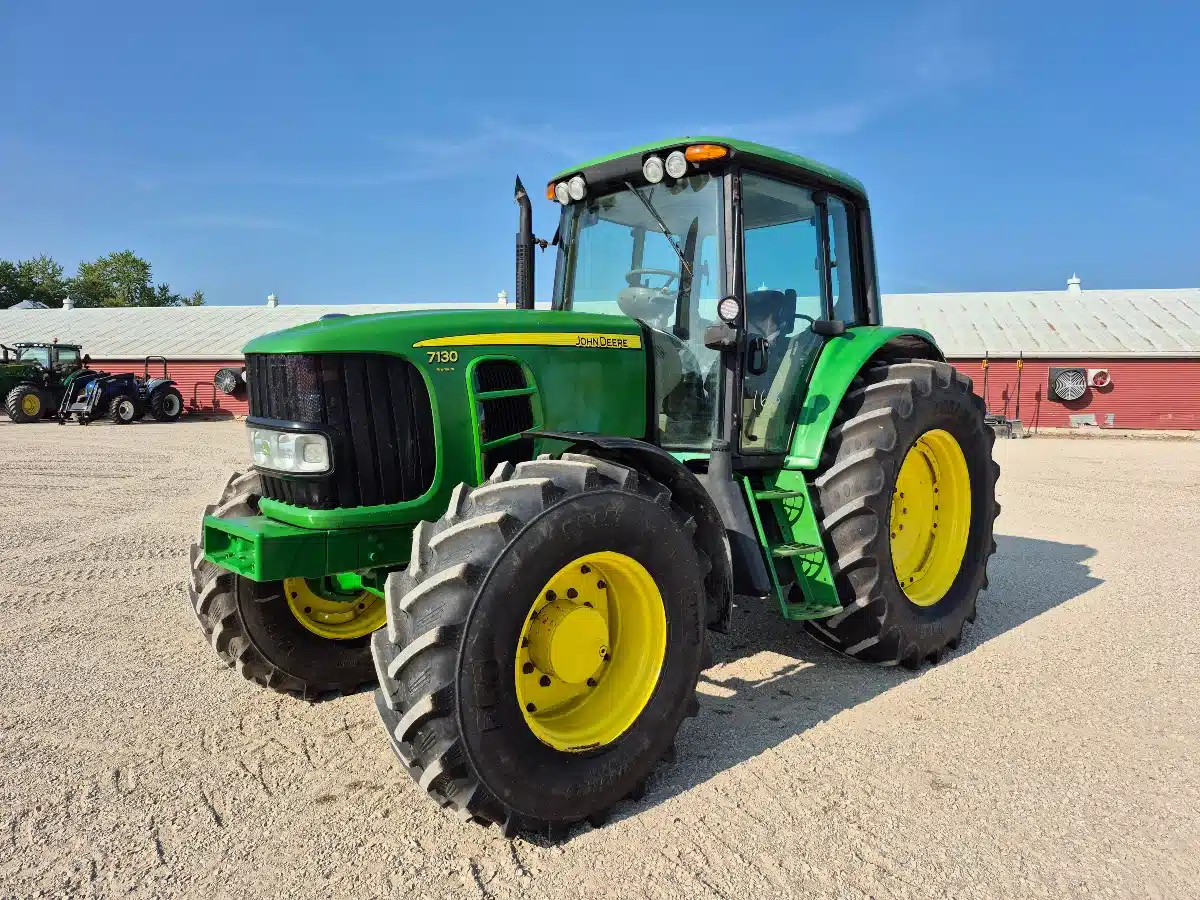

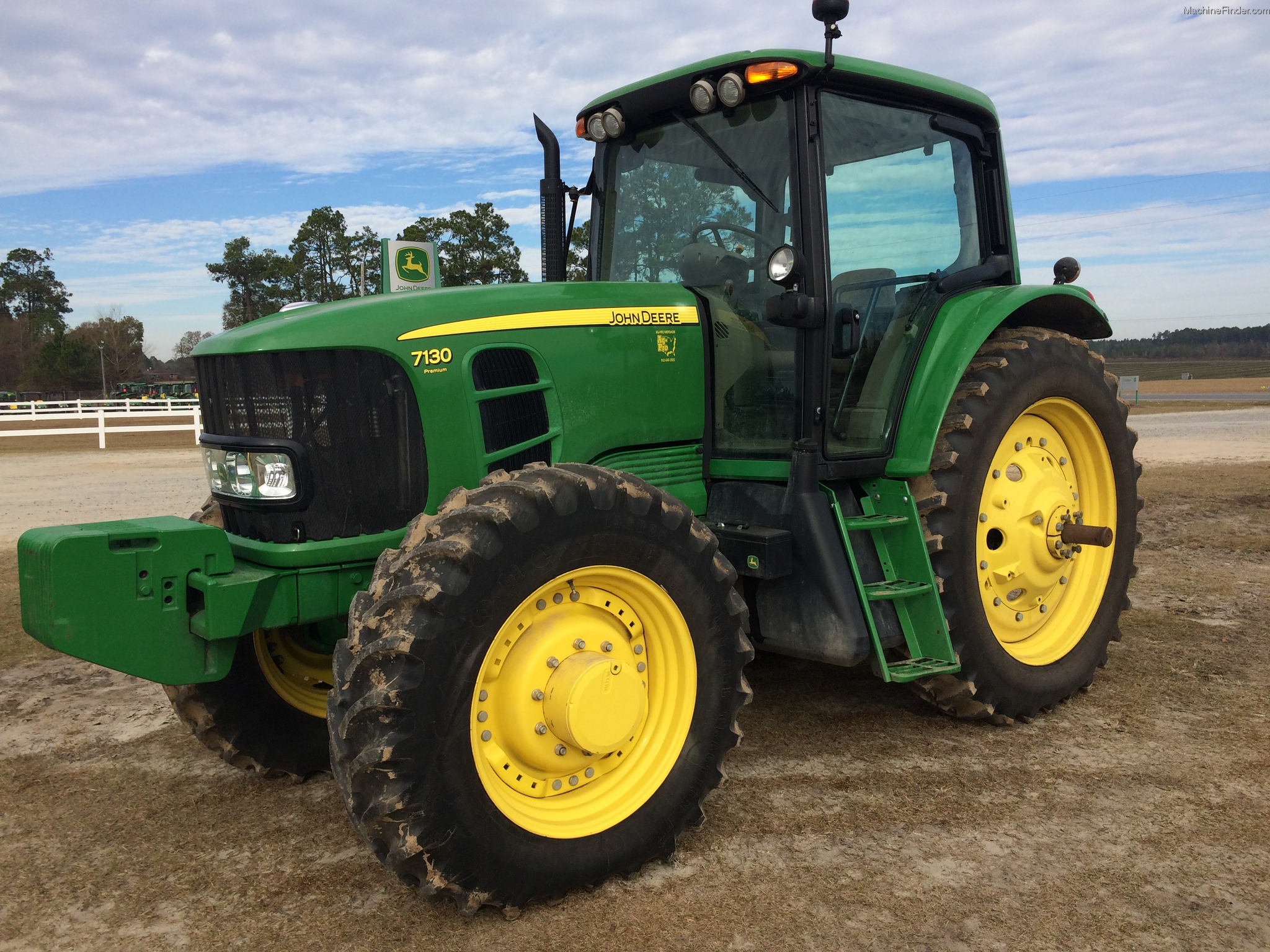

John Deere 7130
John Deere 7130 — Row-Crop tractor · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
9657 to 12340 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
The basic Deere 7130 was available a basic cab or open-operator station with ROPS. Upgraded hydraulics and hitch were optional on open-operator station models. Upgraded systems with a cab were only available on the 7130 Premium.Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Two-post Roll-Gard ROPS. Cab optional.Reference
Variants
7130base tractorReference
7130 Premiumdeluxe tractorReference
Engine
John Deere 6.8L 6-cyl dieselReference
John Deere 4.5L 4-cyl dieselReference
Engine (gross)93.2 kWReference
John Deere 6068HL280Reference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Rated Power (gross)90.2 kWReference
Air cleanerdual paper elementsReference
Rated RPM2300Reference
Idle RPM850-2460Reference
Operating RPM1600-2300Reference
Torque485.4 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.7 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere PowerTech E 4045HL288Reference
4-cylinder 8-valveReference
The Deere 7130 switched to a four-cylinder engine with the 2010 model year.Reference
Displacement4.5 LReference
Rated Power (gross)93.2 kWReference
Fuel systemhigh-pressure common railReference
Compression19:1Reference
Torque504.4 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
Oil capacity15.9 LReference
Transmission
12-speed full synchro shiftReference
16-speed full synchro shiftReference
16-speed partial power shiftReference
24-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefull synchro shiftReference
Gears12 forward and 4 reverseReference
Oil capacity51.9 LReference
Four ranges, each with four forward gears and reverse operated via a range shift lever and gear shift lever. Cluch must be used to change range or gear. Only avaialable with ROPS.Reference
TransmissionJohn Deere SyncroPlus PowrReverserReference
Gears16 forward and reverseReference
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range or gear.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
Gears24 forward and reverseReference
Six ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system51.9 LReference
Hydraulic system60.2 LReference
Typeconstant flow load sensingReference
Typeclosed-center load sensing (optional with ROPS)Reference
Capacity51.9 LReference
Capacity60.2 LReference
Pressure200.0 barReference
Valves1 to 4Reference
Pump flow79.9 lpmReference
Pump flow109.8 lpmReference
Rear TypeIIReference
Controlposition controlReference
Controlelectronic lower-link (optional with ROPS)Reference
Rear lift (at 24"/610mm)2683 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel207.0 LReference
Fuel249.8 LReference
Front axle8.3 LReference
Front hubs1.5 LReference
Max capacity8500 kgReference
Dimensions
Wheelbase270 cmReference
Wheelbase264 cmReference
Weight9657 to 12340 poundsReference
Front tire10.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R38 (4WD)Reference
Length475 cmReference
Width166 cmReference
Clearance (front axle)54 cmReference
Clearance (front axle)58 cmReference
Clearance (rear axle)71 cmReference
Clearance (drawbar)48 cmReference
Rear axle1663 mmReference
Rear axle78 by 2555 mmReference
Front tread151 to 217 cmReference
Front tread150 to 223 cmReference
Rear tread161 to 184 cmReference
Shipping4380 kgReference
Shipping4650 kgReference
Operating5597 kgReference
Max Drawbar2249 kgReference
Max front axle2050 kgReference
Max front axle4200 kgReference
Max front axle5000 kgReference
Max front axle6579 kgReference
Max rear axle6500 kgReference
7130 Serial Number Location
Right side of main frame above front axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
John Deere 7130 Height
ROPS292 cmReference
ROPS230 cmReference
Cab290 cmReference
Speeds
With 18.4R38 rear tires.Reference
With 18.4R38 rear tires. Reverse speeds are approximately 5% faster than listed forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
