Tractor · 2007Unverified

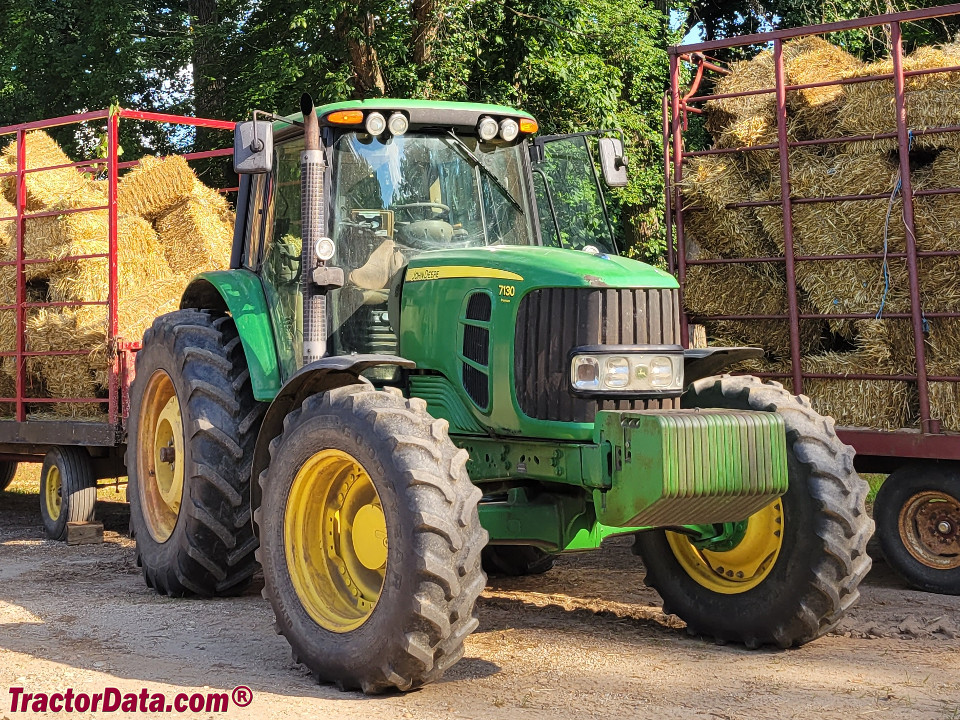

John Deere 7130 Premium
John Deere 7130 Premium — Row-Crop tractor · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Max power
87.6 kW
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension.Reference
Variants
7130base tractorReference
7130 Premiumdeluxe tractorReference
Engine
John Deere 6.8L 6-cyl dieselReference
John Deere 4.5L 4-cyl dieselReference
Engine (gross)90.2 kWReference
Drawbar (tested)70.7 kWReference
John Deere Power Tech Plus 6068HRW73Reference
variable geometry turbocharger dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)90.2 kWReference
Fuel systemhigh-pressure common railReference
Compression17:1Reference
Rated RPM2300Reference
Idle RPM850-2460Reference
Operating RPM1300-2300Reference
Torque516.6 NmReference
Torque RPM1700Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.7 LReference
Oil change250 hReference
Oil change500 h (premium oil)Reference
Coolant capacity33.7 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere Power Tech E 6068HRW72Reference
turbocharged dieselReference
6-cylinder 12-valveReference
The optional 2-valve PowerTech E engine elminates the exhaust-gas recirculation (EGR) and variable geometry turbocharger. When equipped with the PowerTech E, the 7130 Premium could only be fitted with the 16-speed PowrQuad Plus transmission.Reference
Compression19:1Reference
Torque505.8 NmReference
John Deere PowerTech Plus 4045HRW51Reference
4-cylinder 16-valveReference
liquid-cooledReference
Four-cylinder engine replaced the six-cylinder for the 2010 model year.Reference
Displacement4.5 LReference
Rated Power (gross)93.2 kWReference
John Deere PowerTech E 4045HRW50Reference
4-cylinder 8-valveReference
Four-cylinder engine replaced the six-cylinder for the 2010 model year. The optional 2-valve PowerTech E engine elminates the exhaust-gas recirculation (EGR) and variable geometry turbocharger. When equipped with the PowerTech E, the 7130 Premium could only be fitted with the 16-speed PowrQuad Plus transmission.Reference
Max power87.6 kWReference
Power at rated engine speed76.0 kWReference
Max power70.2 kWReference
Max power86.5 kWReference
Power at rated engine speed77.8 kWReference
Max power70.7 kWReference
Transmission
16-speed partial power shiftReference
24-speed partial power shiftReference
infinitely variable transmissionReference
28-speed partial power shiftReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Oil capacity51.9 LReference
Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
TransmissionJohn Deere AutoQuad PlusReference
Gears24 forward and reverseReference
Six ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.Reference
TransmissionJohn Deere IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity60.2 LReference
The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.Reference
TransmissionJohn Deere PowrQuad Plus CreeperReference
Gears28 forward and reverseReference
Oil capacity53.0 LReference
Optional creeper adds an additional 12 forward and reverse gears.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)87.6 kWReference
Hydraulic system51.9 LReference
Hydraulic system60.2 LReference
Typeclosed center pressure and flow compensated (PFC)Reference
Capacity51.9 LReference
Capacity60.2 LReference
Pressure200.0 barReference
Rear valves2 to 4Reference
Pump flow109.8 lpmReference
Rear Type2Reference
Rear Type2N/2 (optional)Reference
Controlelectronic lower linkReference
Rear lift (at 24"/610mm)2317 kgReference
Rear lift (at 24"/610mm)3747 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000 (optional)Reference
Engine RPM540@2143Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Power at rated PTO speed81.3 kWReference
Power at rated PTO speed82.2 kWReference
Capacities
Fuel207.0 LReference
Max capacity9500 kgReference
Dimensions
Wheelbase286 cmReference
Wheelbase264 cmReference
Length475 cmReference
Height (cab)290 cmReference
Clearance (front axle)54 cmReference
Clearance (rear axle)71 cmReference
Clearance (drawbar)48 cmReference
Rear axle85 by 2438 mmReference
Rear axle85 by 2806 mmReference
Rear axle1651 mmReference
Front tread151 to 217 cmReference
Front tread152 to 223 cmReference
Rear tread152/162/172/182/193/203 cmReference
Rear tread152 to 265 cmReference
Rear tread152 to 302 cmReference
Max Drawbar9500 kgReference
Max front axle2998 kgReference
Max front axle6500 kgReference
Max front axle4399 kgReference
Max front axle6579 kgReference
Max rear axle6799 kgReference
7130 Premium Serial Numbers
Location:Right side of main frame above front axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging volts14Reference
Battery volts12Reference
Test results
OECD 1921: 6-cyl diesel PowrQuad Plus 4WDReference
OECD 1989: 4-cyl diesel PowrQuad Plus 4WDReference
6-cyl diesel PowrQuad Plus 4WDMarch 26 - April 29, 2008Link: OCED Tractor Test 1921 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use25.4 l/hourReference
Fuel use25.0 l/hourReference
Drawbar performanceReference
Max pull4242 kgReference
4-cyl diesel PowrQuad Plus 4WDApril 28 - May 4, 2011Link: OCED Tractor Test 1989 fileReference
Fuel use24.6 l/hourReference
Fuel use23.5 l/hourReference
Fuel use23.8 l/hourReference
Max pull4977 kgReference
Speeds
With 18.4R38 rear tires.Reference
