Tractor · 2010Unverified

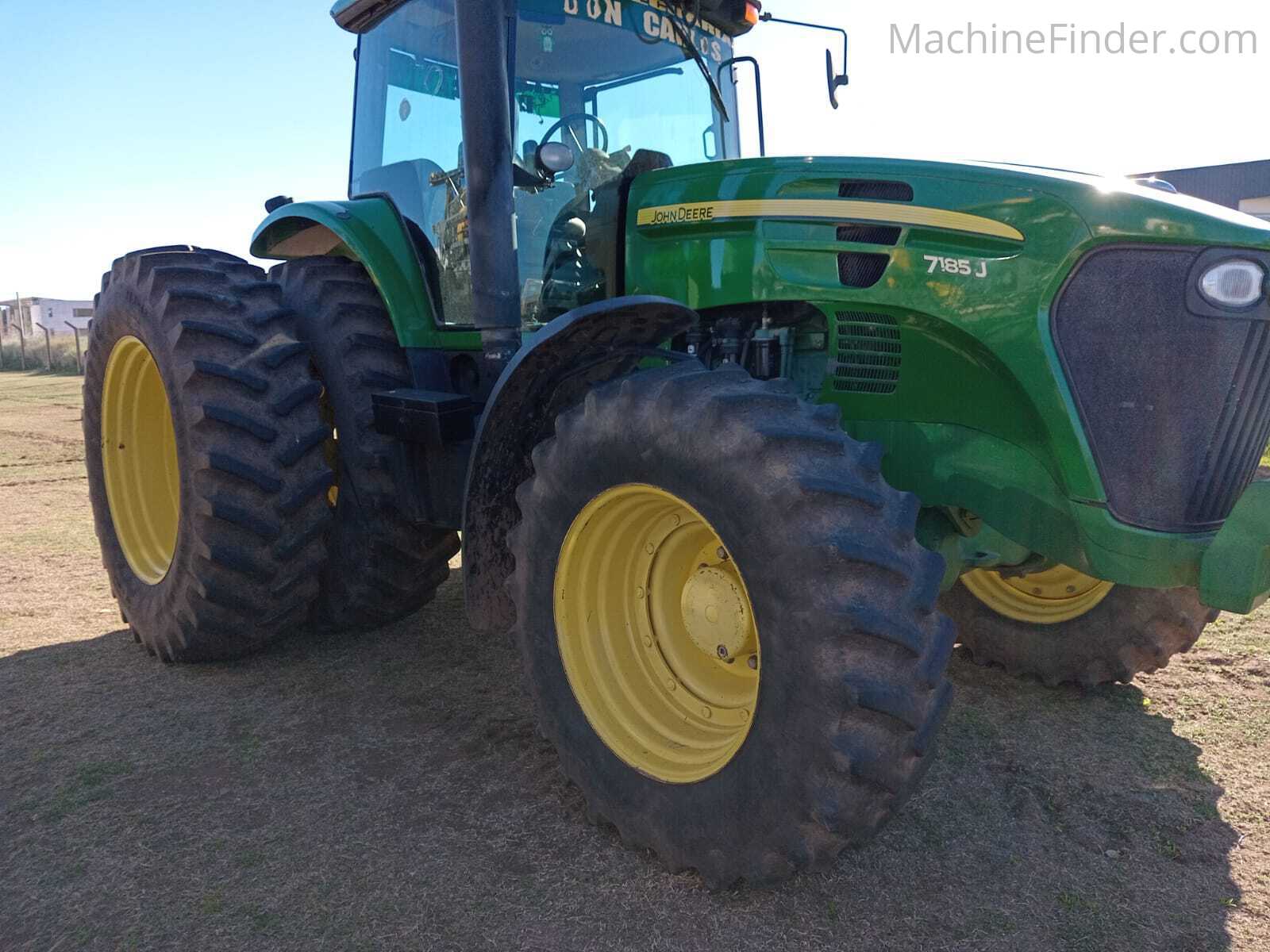

John Deere 7185J

Name: John Deere 7185J
Brand: John Deere

John Deere 7185J — 7J Series · 157 hp. Reference specifications; pending source verification.

The John Deere 7185J is a tractor model rated at 157 hp, categorising it as a high-powered machine in its class. Manufactured in 2010, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The tractor has a listed weight of 8101 kg and is suited to tasks involving around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

157 hp

Weight

8101 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

157 hp

Recorded weight

8101 kg

Transmissions

16-speed partial power shift

Production years

2010-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Montenegro, BrazilReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakesair brake optionalReference

Cab standard with air-conditoning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank391.7 LReference

Engine138.0 kWReference

John Deere 6068 PowertechReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power138.0 kWReference

Fuel systemmechanical injection pump with electronic governorReference

Rated RPM2100Reference

Torque826.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Transmission

16-speed partial power shiftReference

16-speedReference

TransmissionJohn Deere PowrQuad PlusReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Four gears (1-4) in four ranges (A-D) with left-hand power shuttle. Push-button power shifting between gears, synchronized range shifting using the clutch.Reference

TransmissionJohn Deere AutoQuadReference

PTO & Hydraulics

PTO (claimed)117.1 kWReference

Typeclosed centerReference

Pressure210.0 barReference

Valves2 to 4Reference

Pump flow121.1 lpmReference

Pump flow174.1 lpmReference

SCV flow113.9 lpmReference

SCV flow169.9 lpmReference

Rear Type3/3NReference

Controlelectronic lower-link sensingReference

Rear lift (at ends)7561 kgReference

Rear lift (at ends)10441 kgReference

Rear lift (at 24"/610mm)4599 kgReference

Rear lift (at 24"/610mm)6350 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@1950Reference

Engine RPM1000@1950Reference

Dimensions

Wheelbase286 cmReference

Weight8101 kgReference

Front tire16.9-30Reference

Rear tire20.8-42Reference

Standard tires (ag)Front: 16.9-30. Rear: 20.8-42Reference

Optional tires (ag)Front: 16.9R30. Rear: 20.8R42Reference

Optional tires (ag)Front: 600/65R28. Rear: 710/70R38Reference

Optional tires (ag)Front: 600/60R30.5. Rear: 850/60R38Reference

Optional tires (ag)Front: 18.4-26. Rear: 30.5L-32Reference

Optional tires (ag)Front: 480/70R28. Rear: 800/65R32Reference

Length610 cmReference

Height (cab)314 cmReference

Ballasted weight9902 kgReference

Clearance (front axle)53 cmReference

Rear axle99 by 2438 mmReference

Rear axle99 by 2806 mmReference

Front tread152 to 213 cmReference

Rear tread152 to 213 cmReference

Rear tread158 to 321 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Batteries2Reference

Battery volts12Reference

Battery AH100Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
