Tractor · 1993Unverified

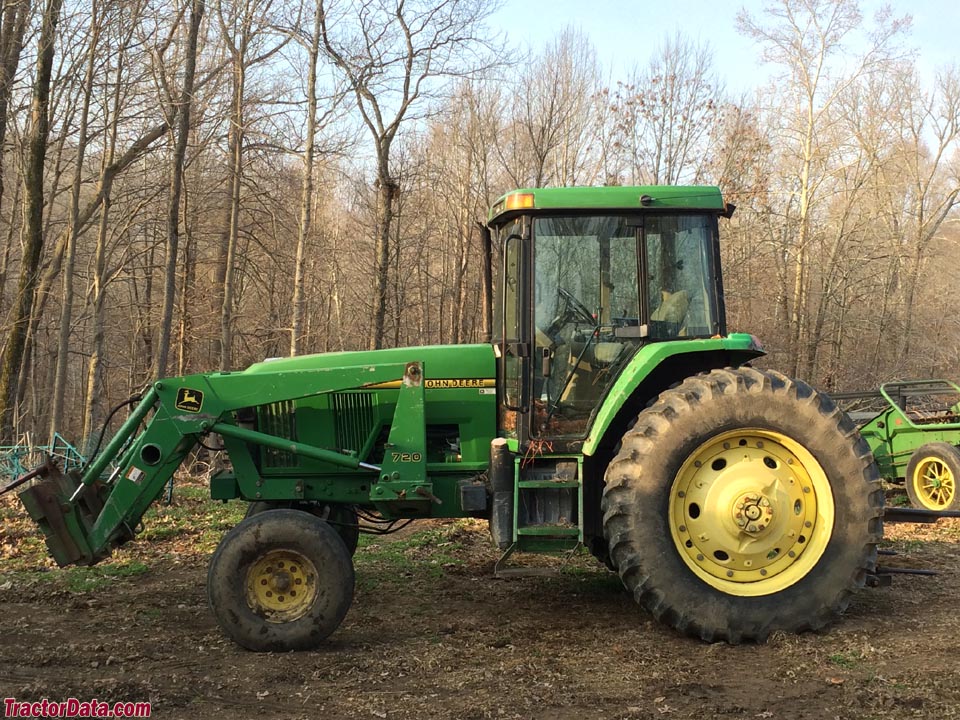

John Deere 7200
John Deere 7200 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Max power
70.9 kW
Weight
5750 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $50,000 in 1996Reference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Fuel tank204.4 LReference
Drawbar (tested)64.0 kWReference
John Deere 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Air cleanerdual paper elementsReference
Compression17.8:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power70.9 kWReference
Power at rated engine speed70.1 kWReference
Max power61.7 kWReference
Max power73.0 kWReference
Power at rated engine speed70.3 kWReference
Max power64.0 kWReference
Transmission
12-speed fully synchronizedReference
16-speed four-speed power shiftReference
TransmissionSyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Optional transmission. Three gears, plus reverse, in three ranges.Reference
TransmissionPowrQuadReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Standard transmission. Four power shift gears in three ranges.Reference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
PTO (tested)73.0 kWReference
Typeclosed centerReference
Valves2 or 3Reference
Rear Type2/3NReference
Rear lift (at 24"/610mm)3110 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase284 cmReference
Weight5750 kgReference
Front tire10.00x16Reference
Rear tire18.4x38Reference
Ag front10.00x16Reference
Ag rear18.4x38Reference
Operating weight5750 kgReference
7200 Serial Numbers
19941001Reference
19952595Reference
19964001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
OECD 1678: diesel SyncroPlus 4WDReference
OECD 1679: diesel PowrQuad 4WDReference
Diesel SyncroPlus 4WDMay 10 - June 1, 1994Link: OCED Tractor Test 1678 fileReference
PTO performanceReference
Fuel use19.7 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Max pull5558 kgReference
Diesel PowrQuad 4WDMay 11 - June 2, 1994Link: OCED Tractor Test 1679 fileReference
Fuel use20.8 l/hourReference
Fuel use21.2 l/hourReference
Max pull5642 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
