Tractor · 2011Unverified

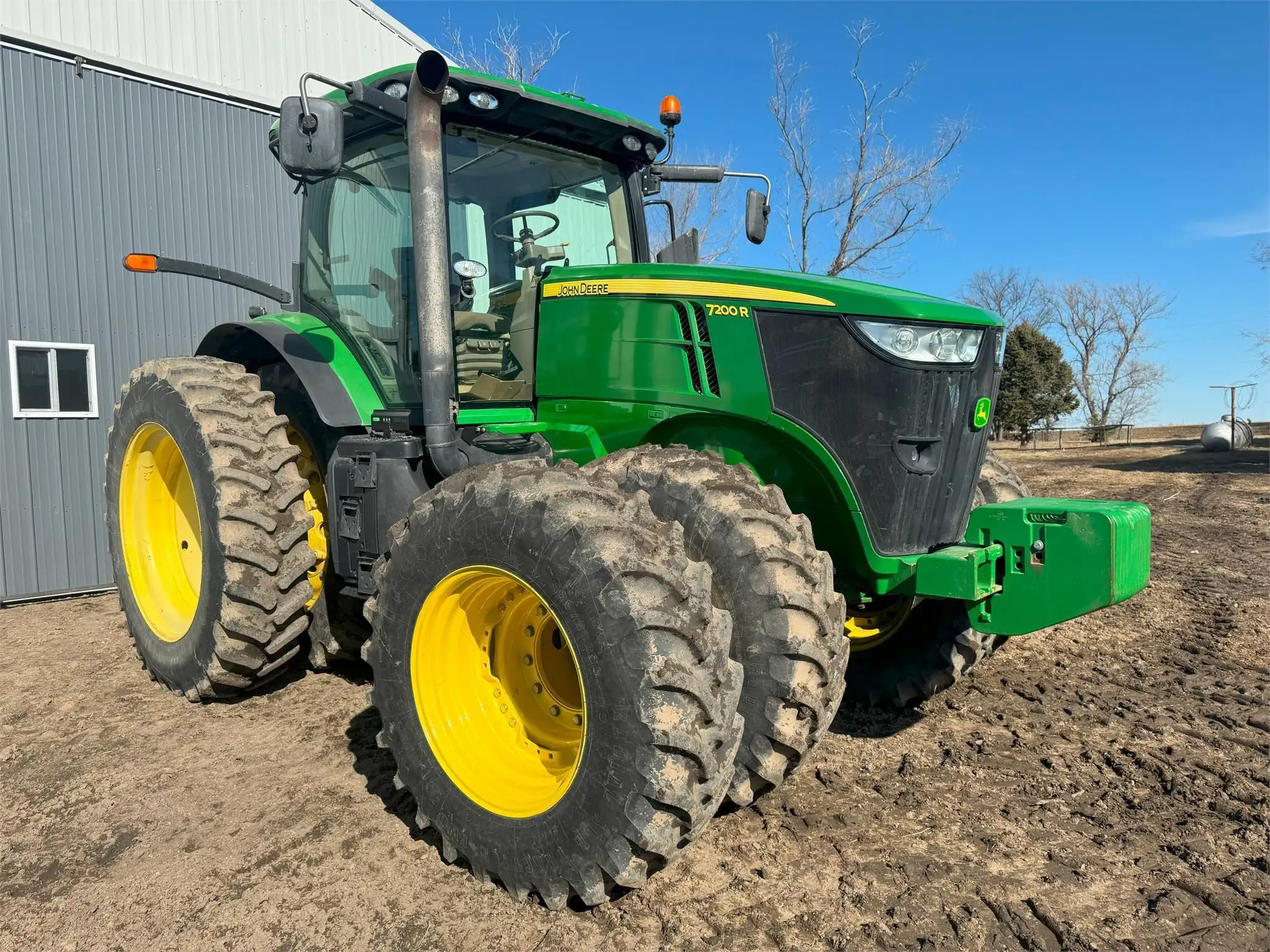

John Deere 7200R

Name: John Deere 7200R
Brand: John Deere

John Deere 7200R — 7R Series · 200 hp. Reference specifications; pending source verification.

The John Deere 7200R is a tractor model with a rated power output of 200 hp, categorising it among the more powerful machines in its class. It was produced between 2011 and 2013. The 7200R is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives the mechanical front-wheel drive via a hydrostatic transmission. The listed weight of the model ranges from 18104 to 26335 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Max power

146.9 kW

Weight

18104 to 26335 pounds

Catalogue coverage

Variants represented

Richest spec table

146 rows

Recorded power

200 hp

Transmissions

16-speed partial power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Drive4x2 2WD (optional)Reference

Drive4x4 MFWD 4WDReference

Differential lockfull-locking electrohydraulic rear. Limited slip 4WD front axle. Electrohydraulic on TLS Plus front axle with front brakes.Reference

Steeringhydrostatic powerReference

SteeringActiveCommand Steering optionalReference

CommandView II Cab. AutoTrac ready, except on 2WD. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank503.4 LReference

Fuel tank522.3 LReference

Engine (gross)149.1 kWReference

Engine (max)164.1 kWReference

Drawbar (tested)115.4 kWReference

John Deere PowerTech PSXReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier 4AReference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (gross)149.1 kWReference

Maximum Power (gross)164.1 kWReference

Fuel systemelectronic high-pressure common railReference

Air cleanerdual stage dryReference

Compression17.2:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power146.9 kWReference

Power at rated engine speed126.7 kWReference

Max power115.4 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier 4A | exhaust gas recirculation (EGR)Reference

Bore and stroke4.19x5.00 inchesReference

Compression ratio17.2:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speed partial power shiftReference

20-speed partial power shiftReference

20-speed power shiftReference

infinitely variable transmissionReference

TransmissionJohn Deere PowrQuad PlusReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.Reference

TransmissionJohn Deere AutoQuad PlusReference

Gears20 forward and reverseReference

The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.Reference

TransmissionJohn Deere CommandQuad EcoReference

Typepower shiftReference

The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.Reference

TransmissionJohn Deere AutoPowr IVTReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Clutchmultiple discReference

PTO & Hydraulics

PTO (claimed)122.3 kWReference

PTO (tested)146.9 kWReference

Typeclosed-center pressure and flow compensated (PFC)Reference

Pressure204.0 barReference

Rear valves6 (max)Reference

Mid valves0 to 2Reference

Pump flow121.1 lpmReference

Pump flow162.8 lpmReference

Pump flow223.3 lpmReference

SCV flow132.5 lpmReference

Rear Type3/3NReference

Controlelectrohydraulic sensingReference

Rear lift5443 kgReference

Rear lift6894 kgReference

Front Hitch3N (optional)Reference

Front lift5200 kgReference

DrawbarCategory 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional.Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375/1.75)Reference

Rear PTO Type540/540E/1000 (1.375/1.75)Reference

Rear PTO Type540/540E/1000/1000E (1.375/1.75)Reference

Engine RPM540@1950Reference

Engine RPM540E@1750Reference

Engine RPM1000@1950Reference

Engine RPM1000E@1950Reference

Front PTOoptionalReference

Front PTO Type1000 (1.375)Reference

Front PTO Type1000 (1.75)Reference

Power at rated PTO speed142.1 kWReference

Dimensions

2WD Wheelbase303 cmReference

4WD Wheelbase292 cmReference

Weight18104 to 26335 poundsReference

Front axle1150 Series standardReference

Front axleTriple-Link Suspension Plus optionalReference

Front axle50 mmReference

Standard axle rear axle100 by 3009 mmReference

Rear axle100 by 2550 mmReference

Rear axle100 by 2806 mmReference

Front tread152 to 223 cmReference

2WD8211 kgReference

4WD10469 kgReference

TLS Plus11945 kgReference

Max front axle6500 kgReference

Max rear axle10500 kgReference

John Deere 7200R attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Capacities

Max capacity14500 kgReference

Capacity414 ciReference

Test results

Diesel Autoquad Plus 4WDApril 26 - May 15, 2012Link: OCED Tractor Test 2021 fileReference

PTO performanceReference

Fuel use42.0 l/hourReference

Fuel use39.0 l/hourReference

Fuel use41.6 l/hourReference

Drawbar performanceReference

Fuel use38.6 l/hourReference

Max pull9363 kgReference

Speeds

With Group 47 rear tires.Reference

With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.Reference

General

Make & ModelJohn DeereReference

Drawbar categoryCategory 3 drawbar standard with 4,050 to 6,000 pound rating.Reference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves24 valveReference

Hydraulics Typeclosed-center pressure and flow compensated (PFC)Reference

Maximum operating pressure2,958 psiReference

Rear Hitch category (SAE designation)Category 3/3NReference

Rear Hitch maximum lift capacity6,894.6 kgReference

Rear Hitch Sensing Typeelectrohydraulic sensingReference

Front Hitch category (SAE designation)Category 3N (optional)Reference

Power

Rated Power200 hpReference

PTO

PTO Power164 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Dimensions & weight

Wheelbase303.3 cmReference

Overall weight10,468.9 kgReference

Wheels & tyres

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typehydrostatic power | ActiveCommand Steering optionalReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
