Tractor · 1997Unverified

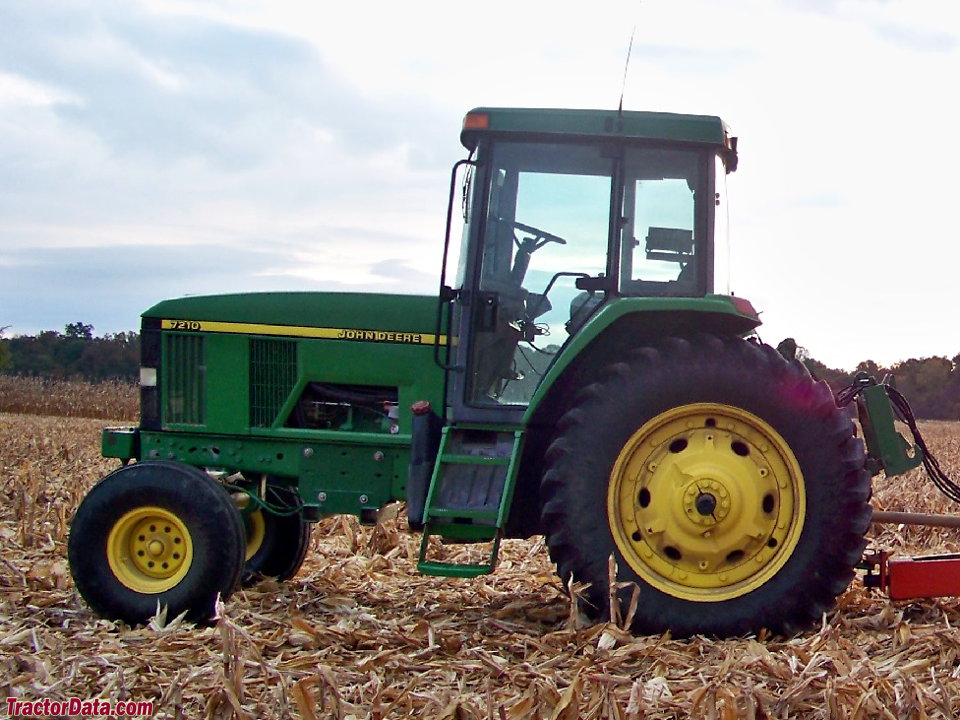

John Deere 7210
John Deere 7210 — Row-Crop tractor · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Max power
72.7 kW
Weight
11491 to 12785 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $52,000 in 1999Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
ComfortGard cab standard.Reference
Variants
7210row-cropReference
7210 Hi-Crophigh clearanceReference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine82.0 kWReference
Drawbar (tested)63.2 kWReference
John Deere PowerTech 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power82.0 kWReference
Compression17:1Reference
Rated RPM2100Reference
Torque450.2 NmReference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity18.9 LReference
Oil capacity18.9 LReference
Max power72.7 kWReference
Power at rated engine speed71.4 kWReference
Max power62.3 kWReference
Max power73.3 kWReference
Max power63.2 kWReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
20-speed partial power shiftReference
28-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
2WD Oil capacity56.8 LReference
4WD Oil capacity64.4 LReference
Oil typeJD Hy-GardReference
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.Reference
Gears20 forward and reverseReference
Four power shift speeds (1-4) in four synchronized ranges (A-E). Right- or left-hand power shuttle.Reference
TransmissionJohn Deere PowrQuad CreeperReference
Gears28 forward and reverseReference
2WD Oil capacity60.6 LReference
4WD Oil capacity68.1 LReference
Adds creeper range to the PowrQuad for ranges A-C. Also available on the 20-speed PowrQuad giving 32 speeds forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)73.3 kWReference
2WD Hydraulic system56.8 LReference
4WD Hydraulic system64.3 LReference
4WD Hydraulic system60.6 LReference
4WD Hydraulic system68.1 LReference
Typeclosed center pressure flow compensated (PFC)Reference
2WD Capacity56.8 LReference
4WD Capacity64.3 LReference
4WD Capacity60.6 LReference
4WD Capacity68.1 LReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow60.6 lpmReference
Pump flow98.4 lpmReference
Rear TypeIIIN/IIReference
2WD Rear lift3356 kgReference
4WD Rear lift3805 kgReference
Front HitchIIIN/IIReference
Front lift3492 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel189.2 LReference
Dimensions
2WD Wheelbase284 cmReference
4WD Wheelbase262 cmReference
Weight11491 to 12785 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
2WD Ag front11.00-16Reference
4WD Ag front13.6R28Reference
Ag rear18.4-38Reference
Length426 cmReference
Width243 cmReference
2WD Clearance (front axle)61 cmReference
4WD Clearance (front axle)53 cmReference
Rear axle80 by 2438 mmReference
Rear axle80 by 2806 mmReference
5747 kgReference
5799 kgReference
2WD Shipping5212 kgReference
4WD Shipping5598 kgReference
2WD Steering wheel221 cmReference
4WD Steering wheel220 cmReference
7210 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
7210 Serial Numbers
19971001Reference
199810001Reference
199920001Reference
200030001Reference
200150001Reference
200270004Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps120Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
John Deere 7210 Height
2WD Cab283 cmReference
4WD Cab282 cmReference
Test results
OECD 1738: diesel SyncroPlus 4WDReference
OECD 1739: diesel PowrQuad 4WDReference
Diesel SyncroPlus 4WDOctober 7 - 16, 1997Link: OCED Tractor Test 1738 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Fuel use21.6 l/hourReference
Max pull6019 kgReference
Diesel PowrQuad 4WDOctober 6 - 21, 1997Link: OCED Tractor Test 1739 fileReference
Fuel use20.8 l/hourReference
Max pull5887 kgReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
