Tractor · 1997Unverified

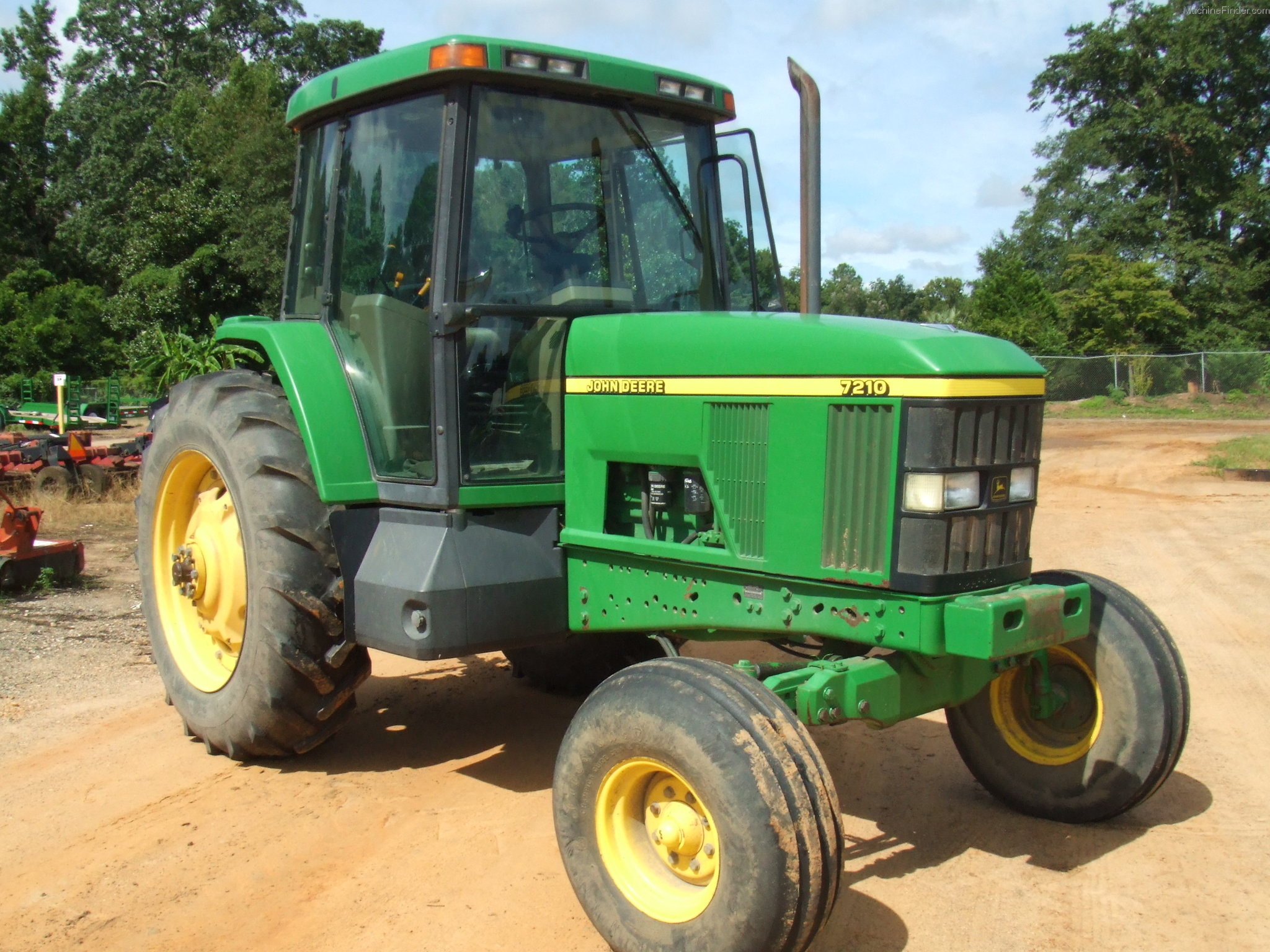

John Deere 7210 Hi-Crop
John Deere 7210 Hi-Crop — High-Clearance tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
The John Deere 7210 was available as in Hi-Crop or High-Clearance configurations. The High-Clearance used the row-crop axles with taller wheels. The Hi-Crop was equipped with drop-axle housings.Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
ComfortGard cab standard. Two-post ROPS optional.Reference
Variants
7210row-cropReference
7210 Hi-Crophigh clearanceReference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine82.0 kWReference
John Deere PowerTech 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power82.0 kWReference
Compression17:1Reference
Rated RPM2100Reference
Torque450.2 NmReference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity18.9 LReference
Oil capacity18.9 LReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
Oil capacity56.8 LReference
Oil capacity64.4 LReference
Oil typeJD Hy-GardReference
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Hydraulic system56.8 LReference
Hydraulic system64.3 LReference
Hydraulic system60.6 LReference
Hydraulic system68.1 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity56.8 LReference
Capacity64.3 LReference
Capacity60.6 LReference
Capacity68.1 LReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow98.4 lpmReference
Pump flow143.8 lpmReference
Total flow60.6 lpmReference
Rear Type2Reference
Rear Type3N/2Reference
Rear lift3356 kgReference
Rear lift3805 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel189.2 LReference
Dimensions
Wheelbase284 cmReference
Front tire290/95R34Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 290/95R34. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 320/90R46. Rear: 18.4-38Reference
Length457 cmReference
Ground clearance83 cmReference
Ground clearance84 cmReference
Ground clearance94 cmReference
Ground clearance93 cmReference
Clearance (front axle)83 cmReference
Clearance (front axle)66 cmReference
Clearance (rear axle)102 cmReference
Clearance (drawbar)74 cmReference
Flanged rear axleReference
Steering wheel251 cmReference
Electrical
GroundnegativeReference
Charging amps120Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
John Deere 7210 Hi-Crop Height
ROPS317 cmReference
ROPS272 cmReference
Cab313 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
