Tractor · 2014Unverified

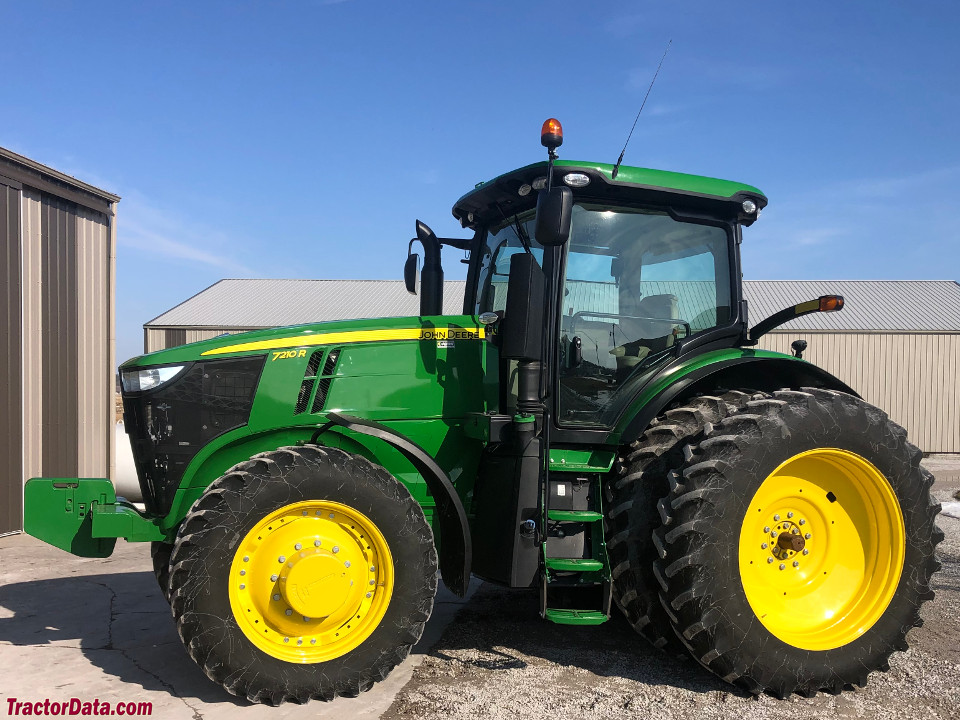

John Deere 7210R
John Deere 7210R — 7R Series · 210 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
210 hp
Max power
153.7 kW
Weight
11945 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $201,727 in 2014 with e23Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfull-locking electro-hydraulic rearReference
Differential locklimited slip frontReference
Differential lockelectro-hydraulic front (optional)Reference
Steeringhydrostatic powerReference
SteeringActiveCommand Steering optionalReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakesdual-line air (optional)Reference
CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (gross)156.6 kWReference
Engine (max)172.3 kWReference
Drawbar (tested)127.3 kWReference
John DeereReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)156.6 kWReference
Maximum Power (gross)172.3 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanertwo stage dryReference
Compression17.2:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power153.7 kWReference
Power at rated engine speed132.5 kWReference
Max power124.3 kWReference
Max power153.1 kWReference
Power at rated engine speed135.9 kWReference
Max power127.3 kWReference
Transmission
20-speed power shiftReference
23-speed full power shiftReference
infinitely variable transmissionReference
TransmissionJohn Deere CommandQuad EcoReference
Typepower shiftReference
Gears20 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser. Manual and automatic shift modes for range and gear.Reference
TransmissionJohn Deere e23Reference
Typefull power shiftReference
Gears23 forward and 11 reverseReference
Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions.Reference
TransmissionJohn Deere AutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.Reference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)153.7 kWReference
Hydraulic system65.1 LReference
Hydraulic system20.1 LReference
Typeclosed-center pressure and flow compensatedReference
Capacity65.1 LReference
Capacity20.1 LReference
Pressure204.0 barReference
Rear valves3 to 6Reference
Mid valves0 to 3Reference
Front valves0 to 2Reference
Pump flow121.1 lpmReference
Pump flow162.8 lpmReference
Pump flow223.3 lpmReference
Rear SCV flow132.5 lpmReference
Front SCV flow124.9 lpmReference
Rear TypeIII/IIINReference
Controlelectro-hydraulic draft sensingReference
Rear lift7299 kgReference
Rear lift10206 kgReference
Rear Armshydraulic center link (optional)Reference
Front HitchIIIN (optional)Reference
Front lift (at ends)5200 kgReference
DrawbarCat. 3 adjustable swinging drawbar. Optional heavy-duty support.Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Power at rated PTO speed149.0 kWReference
Power at rated PTO speed148.4 kWReference
Capacities
Fuel503.4 LReference
Fuel473.1 LReference
Fuel518.5 LReference
Exhaust fluid (DEF)25.7 LReference
Dimensions
Wheelbase292 cmReference
Weight11945 kgReference
Front tire380/80R38Reference
Rear tire480/80R50Reference
Standard tires (ag)Front: 380/80R38. Rear: 480/80R50Reference
Length551 cmReference
Height (cab)325 cmReference
Height (cab)335 cmReference
Clearance (front axle)60 cmReference
Clearance (front axle)63 cmReference
Clearance (rear axle)58 cmReference
Clearance (rear axle)63 cmReference
Clearance (drawbar)35 cmReference
Clearance (drawbar)43 cmReference
Front axle1150 MFWDReference
Front axleTriple-Link Suspension PlusReference
Rear axle100 by 2550 mmReference
Rear axle100 by 2806 mmReference
Rear axle100 by 3009 mmReference
Front tread152 to 223 cmReference
Rear tread196 to 254 cmReference
Rear tread220 to 277 cmReference
Rear tread241 to 298 cmReference
John Deere 7210R attachments
front-end loaderReference
7210R Serial Numbers
Location:Right side of tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240 (optional)Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
Test results
OECD 2082: diesel CommandQuad 4WDReference
OECD 2179: diesel e23 4WDReference
Diesel CommandQuad 4WDApril 2 - 14, 2014Link: OCED Tractor Test 2082 fileReference
PTO performanceReference
Fuel use42.8 l/hourReference
Fuel use39.0 l/hourReference
Fuel use42.4 l/hourReference
Drawbar performanceReference
Max pull9870 kgReference
Diesel e23 4WDSeptember 5 - 8, 2017Link: OCED Tractor Test 2179 fileReference
Fuel use41.6 l/hourReference
Fuel use39.4 l/hourReference
Gear 10 used for power test.Reference
Max pull9756 kgReference
Gear 5 used for pull test.Reference
Speeds
With Group 47 rear tires and 50 kph option. Reverse speeds about 4% faster. Speeds in E3/E4 locked in 40 KPH transmission.Reference
With Group 48 rear tires and 50 kph option.Reference
With 50 KPH speed option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
