Tractor · 2011Unverified

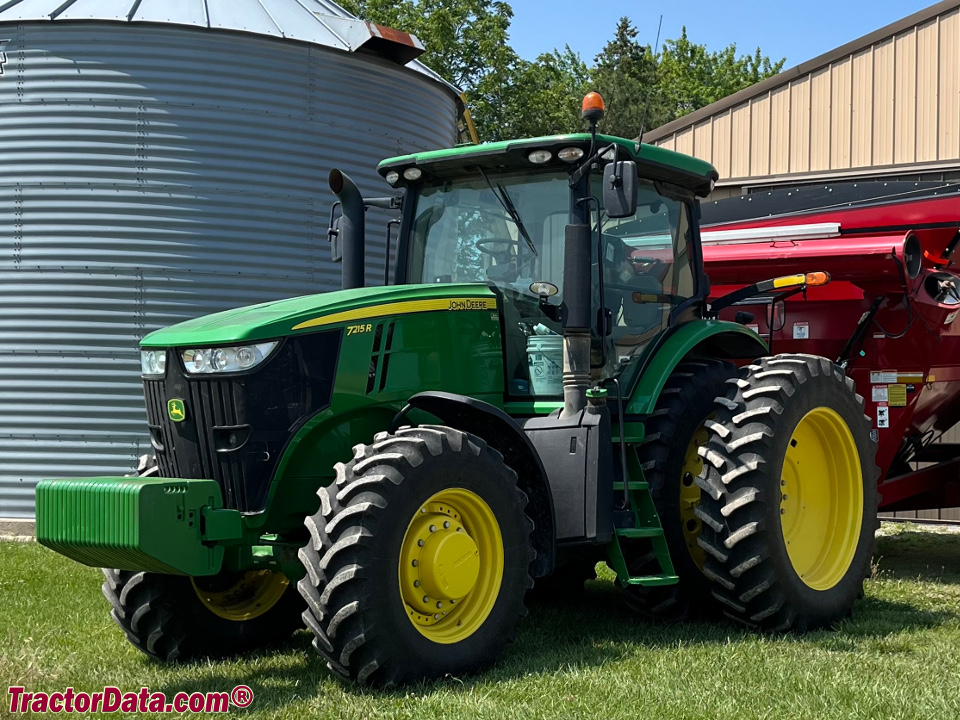

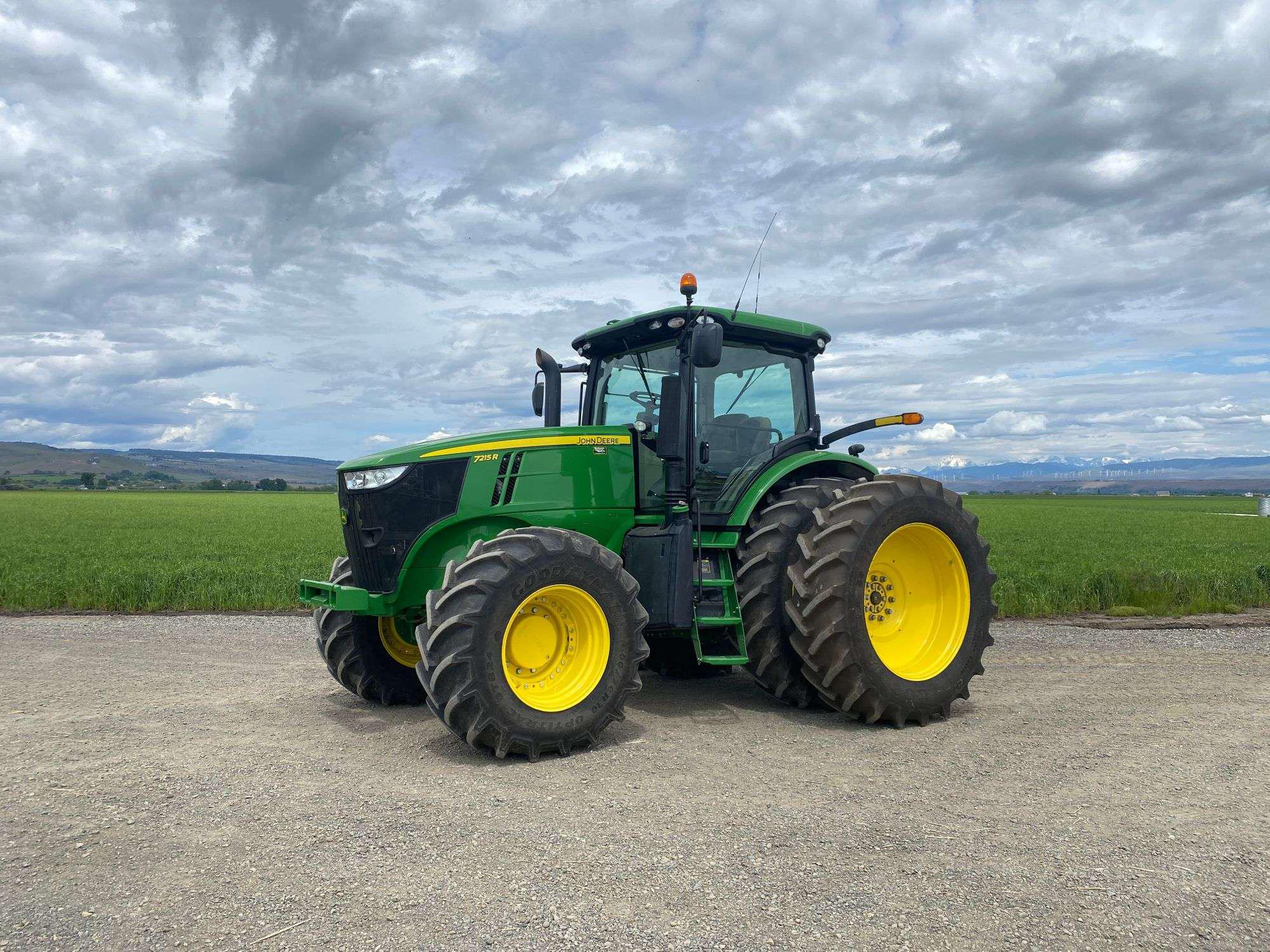

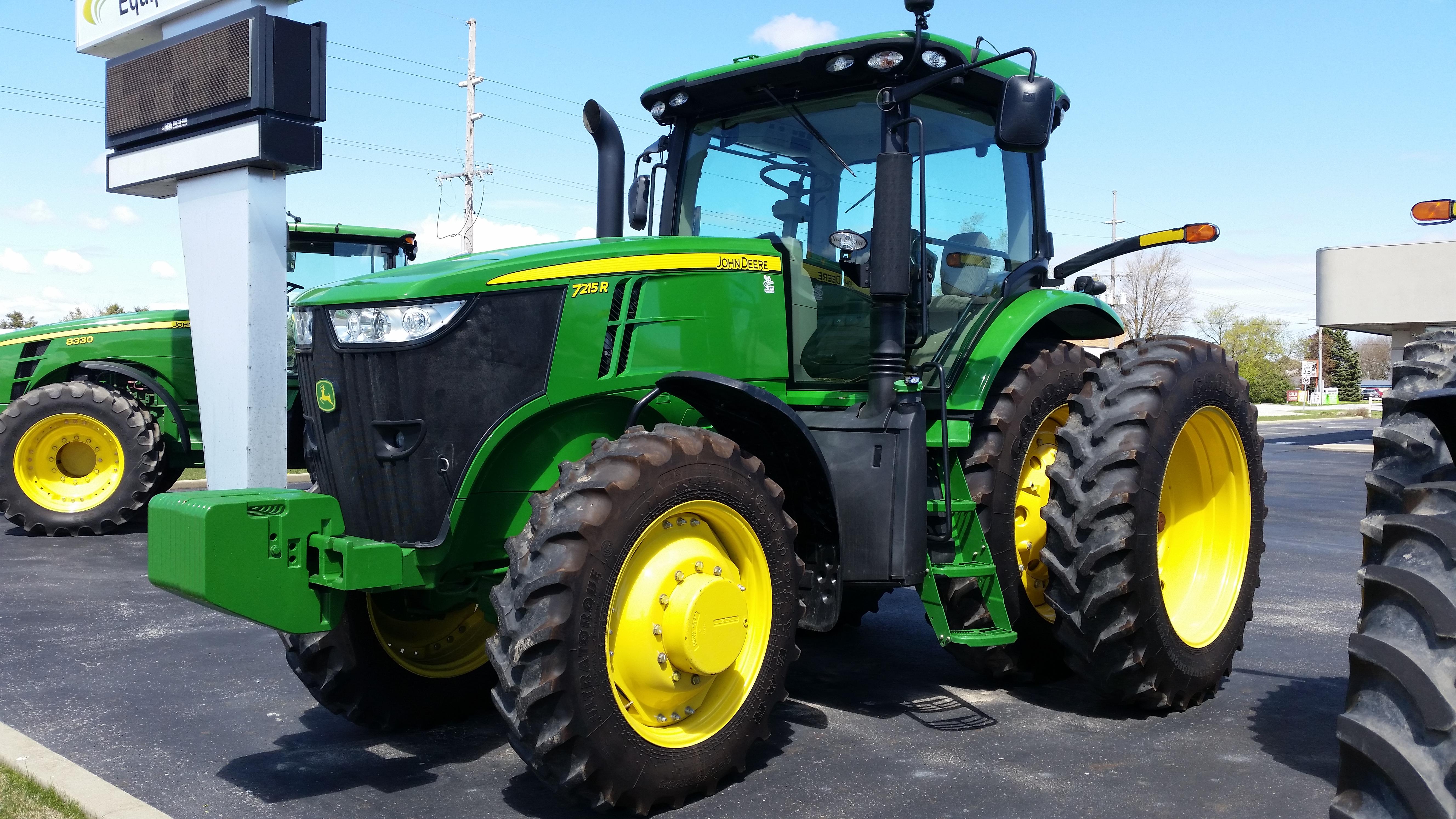

John Deere 7215R
John Deere 7215R — 7R Series · 215 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
215 hp
Max power
161.3 kW
Weight
23080 to 26335 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockfull-locking electrohydraulic rear. Limited slip front axle. Electrohydraulic on TLS Plus front axle with front brakes.Reference
Steeringhydrostatic powerReference
SteeringActiveCommand Steering optionalReference
CommandView II Cab. AutoTrac ready. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank503.4 LReference
Fuel tank522.3 LReference
Engine (gross)160.3 kWReference
Engine (max)176.7 kWReference
Drawbar (tested)128.5 kWReference
John Deere PowerTech PSXReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 4AReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)160.3 kWReference
Maximum Power (gross)176.7 kWReference
Fuel systemelectronic high-pressure common railReference
Air cleanerdual stage dryReference
Compression17.2:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power161.3 kWReference
Power at rated engine speed141.8 kWReference
Max power128.5 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
20-speed power shiftReference
infinitely variable transmissionReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.Reference
TransmissionJohn Deere AutoQuad PlusReference
Gears20 forward and reverseReference
The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.Reference
TransmissionJohn Deere CommandQuad EcoReference
Typepower shiftReference
The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.Reference
TransmissionJohn Deere AutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)132.7 kWReference
PTO (tested)161.3 kWReference
Typeclosed-center pressure and flow compensated (PFC)Reference
Pressure204.0 barReference
Rear valves6 (max)Reference
Mid valves0 to 2Reference
Pump flow121.1 lpmReference
Pump flow162.8 lpmReference
Pump flow223.3 lpmReference
SCV flow132.5 lpmReference
Rear Type3/3NReference
Controlelectrohydraulic sensingReference
Rear lift5443 kgReference
Rear lift6894 kgReference
Front Hitch3N (optional)Reference
Front lift5200 kgReference
DrawbarCategory 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional.Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375/1.75)Reference
Rear PTO Type540/540E/1000 (1.375/1.75)Reference
Rear PTO Type540/540E/1000/1000E (1.375/1.75)Reference
Engine RPM540@1950Reference
Engine RPM540E@1750Reference
Engine RPM1000@1950Reference
Engine RPM1000E@1950Reference
Front PTOoptionalReference
Front PTO Type1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Power at rated PTO speed158.9 kWReference
Dimensions
Wheelbase292 cmReference
Weight23080 to 26335 poundsReference
Front axle1150 Series standardReference
Front axleTriple-Link Suspension Plus optionalReference
Standard axle rear axle100 by 3009 mmReference
Rear axle100 by 2550 mmReference
Rear axle100 by 2806 mmReference
Front tread152 to 223 cmReference
10469 kgReference
TLS Plus11945 kgReference
Max front axle6500 kgReference
Max rear axle10500 kgReference
John Deere 7215R attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity14500 kgReference
Test results
Diesel CommandQuad 4WDOctober 12 - 14, 2011Link: OCED Tractor Test 2055 fileReference
PTO performanceReference
Fuel use44.3 l/hourReference
Fuel use40.9 l/hourReference
Drawbar performanceReference
Fuel use41.3 l/hourReference
Max pull9367 kgReference
Speeds
With Group 47 rear tires.Reference
With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
