Tractor · 2003Unverified

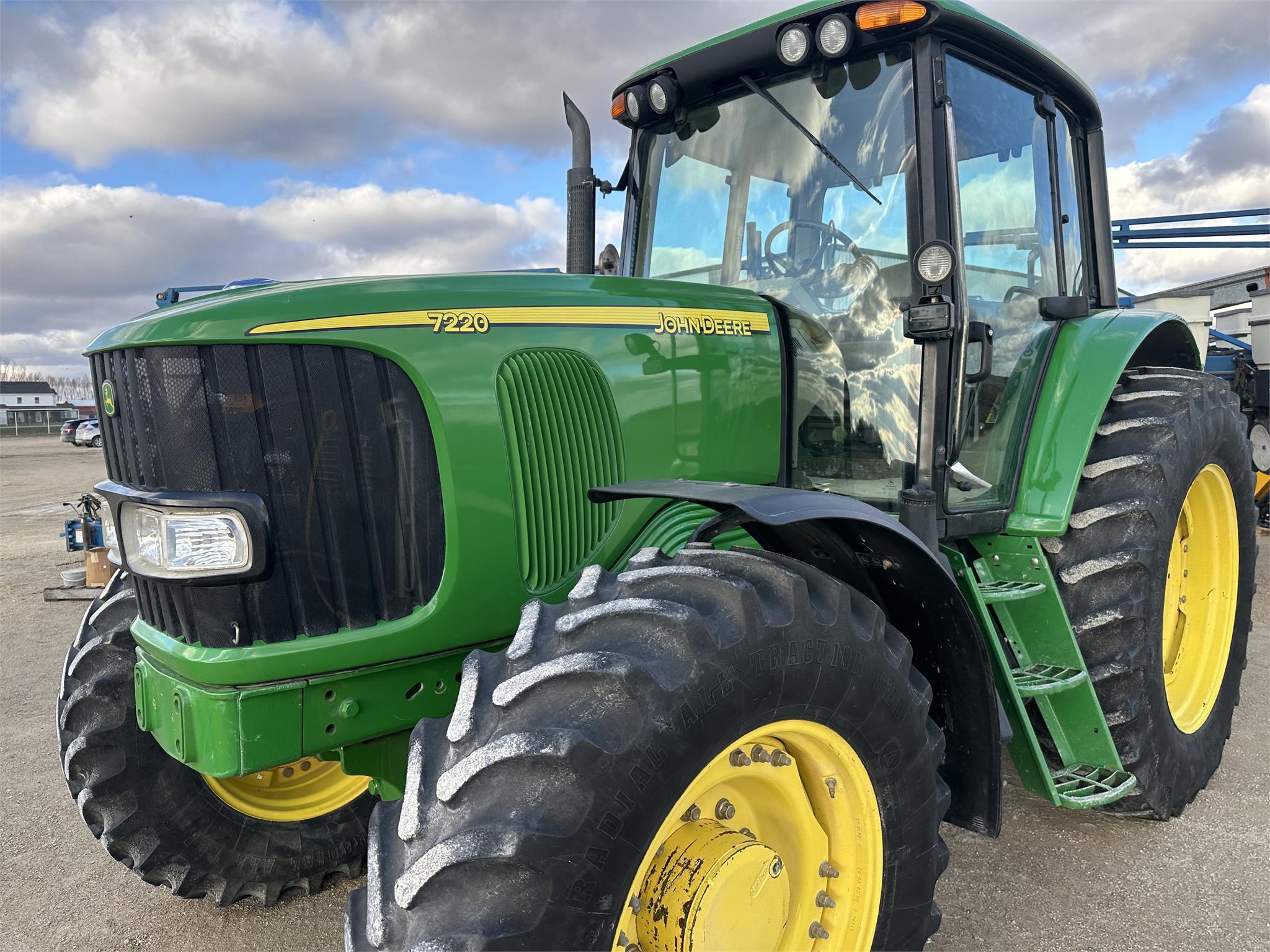

John Deere 7220

Name: John Deere 7220
Brand: John Deere

John Deere 7220 — Row-Crop tractor · 97 hp. Reference specifications; pending source verification.

The John Deere 7220 is a tractor model with a rated power output of 97 hp, which falls within the mid-range of its class. This model was manufactured from 2003 to 2007. It is powered by a 6-cylinder turbocharged diesel liquid-cooled engine and features mechanical front-wheel drive with a powershift transmission. The tractor has an operating weight of 5366 kg and is suitable for use on areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

97 hp

Max power

77.5 kW

Weight

5366 kg

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

97 hp

Recorded weight

5366 kg

Transmissions

16-speed partial power shift

Production years

2003-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

ComfortGard Cab standard with air-conditioning. Open station with two-post ROPS available.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank207.0 LReference

Engine82.0 kWReference

Drawbar (tested)65.5 kWReference

John Deere PowerTech 6068HF475Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power82.0 kWReference

Compression17:1Reference

Rated RPM2300Reference

Idle RPM850-2450Reference

Operating RPM1300-2300Reference

Torque433.9 NmReference

Torque RPM1500Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power3.1 kWReference

Oil capacity21.0 LReference

Coolant capacity15.5 LReference

Max power77.5 kWReference

Power at rated engine speed72.5 kWReference

Max power65.5 kWReference

Transmission

16-speed partial power shiftReference

24-speedReference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Oil capacity51.9 LReference

Four power shift speeds (1-4) in four ranges (A-D) with left-hand reverser.Reference

TransmissionAutoQuadReference

Gears24 forward and reverseReference

TransmissionInfinitely Variable Transmission (IVT)Reference

Gearsinfinite forward and reverseReference

IVT available with MFWD only.Reference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)77.5 kWReference

Typeclosed-center PFCReference

Pressure200.0 barReference

Valves4Reference

Pump flow101.1 lpmReference

Rear TypeIIReference

Rear lift3379 kgReference

Rear lift3946 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed75.2 kWReference

Dimensions

2WD Wheelbase286 cmReference

4WD Wheelbase264 cmReference

Weight5366 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length513 cmReference

Width243 cmReference

Height285 cmReference

4WD Clearance (front axle)52 cmReference

Flanged rear axle1663 mmReference

Rack-and-pinion rear axle86 by 2438 mmReference

Rack-and-pinion rear axle86 by 2806 mmReference

2WD Front tread151 to 222 cmReference

4WD Front tread150 to 211 cmReference

Rear tread152 to 223 cmReference

Rear tread193 to 243 cmReference

Rear tread152 to 265 cmReference

Rear tread152 to 302 cmReference

Operating5366 kgReference

Max Drawbar2247 kgReference

Max front axle3597 kgReference

Max front axle6849 kgReference

Max rear axle6500 kgReference

John Deere 7220 attachments

front-end loaderReference

7220 Serial Numbers

Location:On the main tractor frame, right side, above the front axle.Reference

20031001Reference

200410001Reference

200530001Reference

200645001Reference

200760001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps115Reference

Charging amps150Reference

Battery CCA850Reference

Battery volts12Reference

Capacities

Max capacity7994 kgReference

Test results

Diesel PowerQuad 4WDMay 27 - June 2, 2003Link: OCED Tractor Test 1816 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use23.5 l/hourReference

Drawbar performanceReference

Max pull5367 kgReference

Speeds

With 20.8-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
