Tractor · 2010Unverified

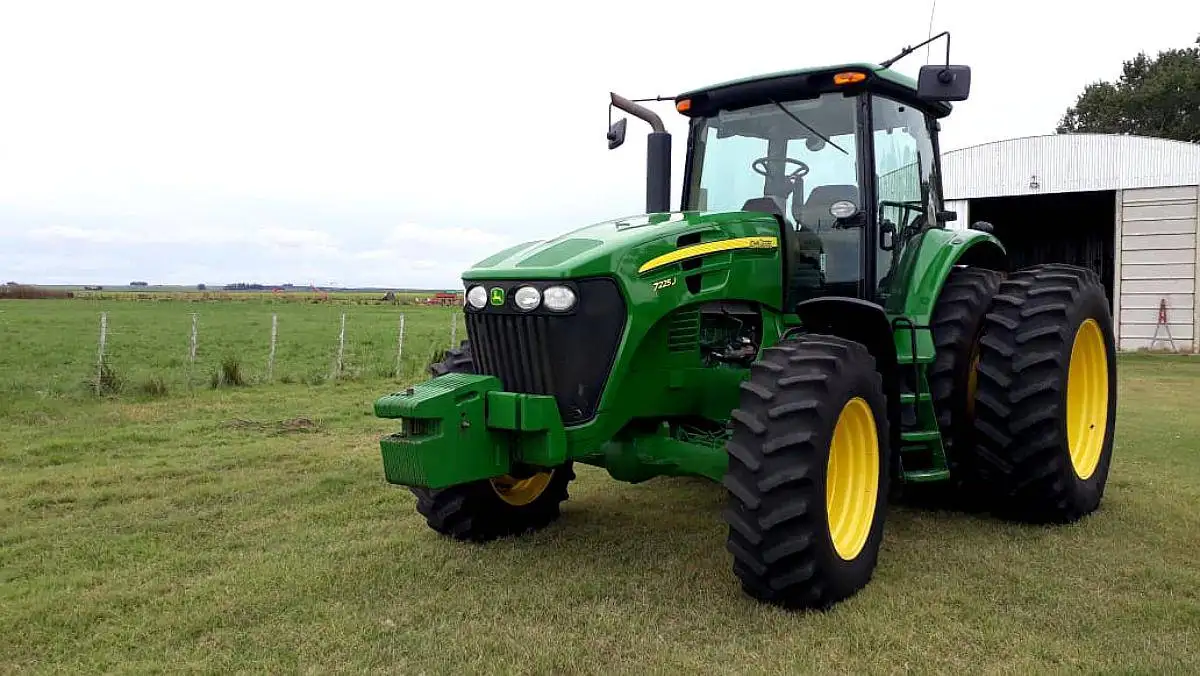

John Deere 7225J
John Deere 7225J — 7J Series · 191 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
191 hp
Weight
8101 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakesair brake optionalReference
Cab standard with air-conditoning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank391.7 LReference
Engine167.8 kWReference
John Deere 6068 PowertechReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power167.8 kWReference
Fuel systemelectronic injection common railReference
Rated RPM2100Reference
Torque1023.1 NmReference
Torque RPM1600Reference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
16-speedReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four gears (1-4) in four ranges (A-D) with left-hand power shuttle. Push-button power shifting between gears, synchronized range shifting using the clutch.Reference
TransmissionJohn Deere AutoQuadReference
PTO & Hydraulics
PTO (claimed)142.4 kWReference
Typeclosed centerReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow121.1 lpmReference
Pump flow174.1 lpmReference
SCV flow113.9 lpmReference
SCV flow169.9 lpmReference
Rear Type3/3NReference
Controlelectronic lower-link sensingReference
Rear lift (at ends)10441 kgReference
Rear lift (at 24"/610mm)4599 kgReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@1950Reference
Engine RPM1000@1950Reference
Dimensions
Wheelbase286 cmReference
Weight8101 kgReference
Front tire16.9-30Reference
Rear tire20.8-42Reference
Standard tires (ag)Front: 16.9-30. Rear: 20.8-42Reference
Optional tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Optional tires (ag)Front: 600/65R28. Rear: 710/70R38Reference
Optional tires (ag)Front: 600/60R30.5. Rear: 850/60R38Reference
Optional tires (ag)Front: 18.4-26. Rear: 30.5L-32Reference
Optional tires (ag)Front: 480/70R28. Rear: 800/65R32Reference
Length610 cmReference
Height (cab)314 cmReference
Ballasted weight12401 kgReference
Clearance (front axle)53 cmReference
Rear axle99 by 2438 mmReference
Rear axle99 by 2806 mmReference
Front tread152 to 213 cmReference
Rear tread152 to 213 cmReference
Rear tread158 to 321 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
