Tractor · 2007Unverified

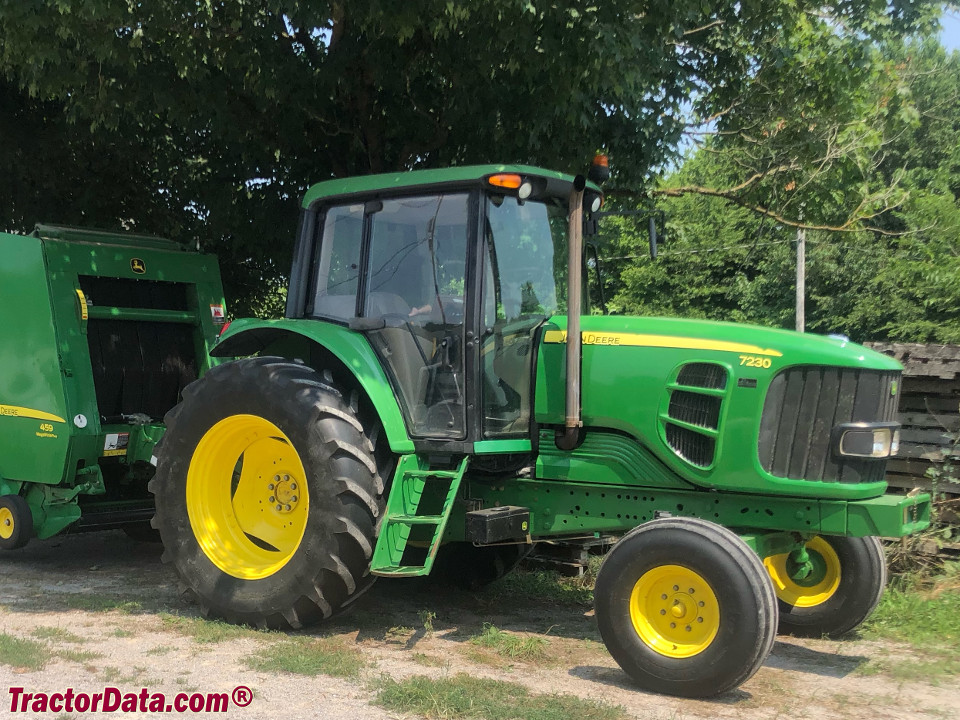

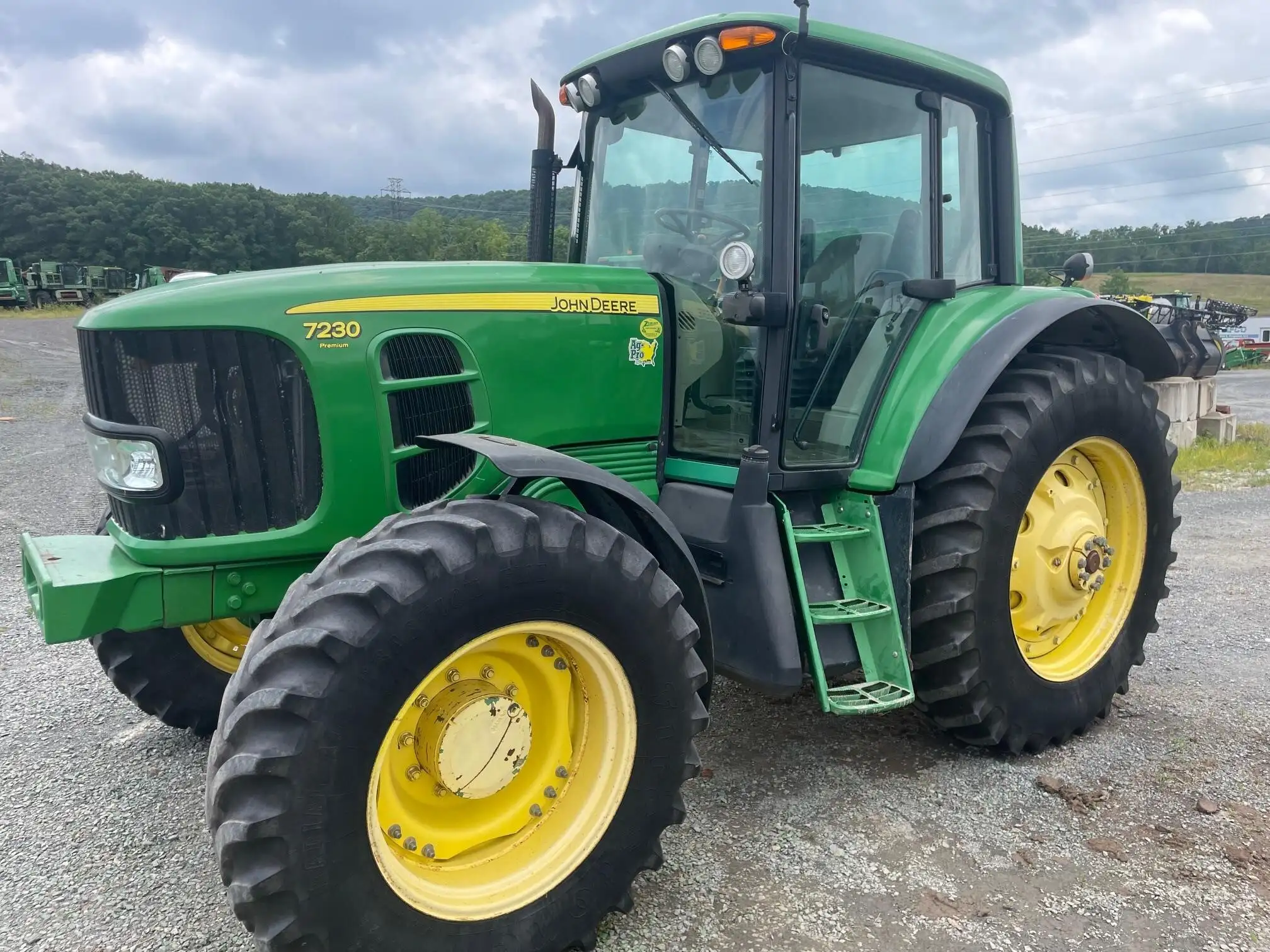

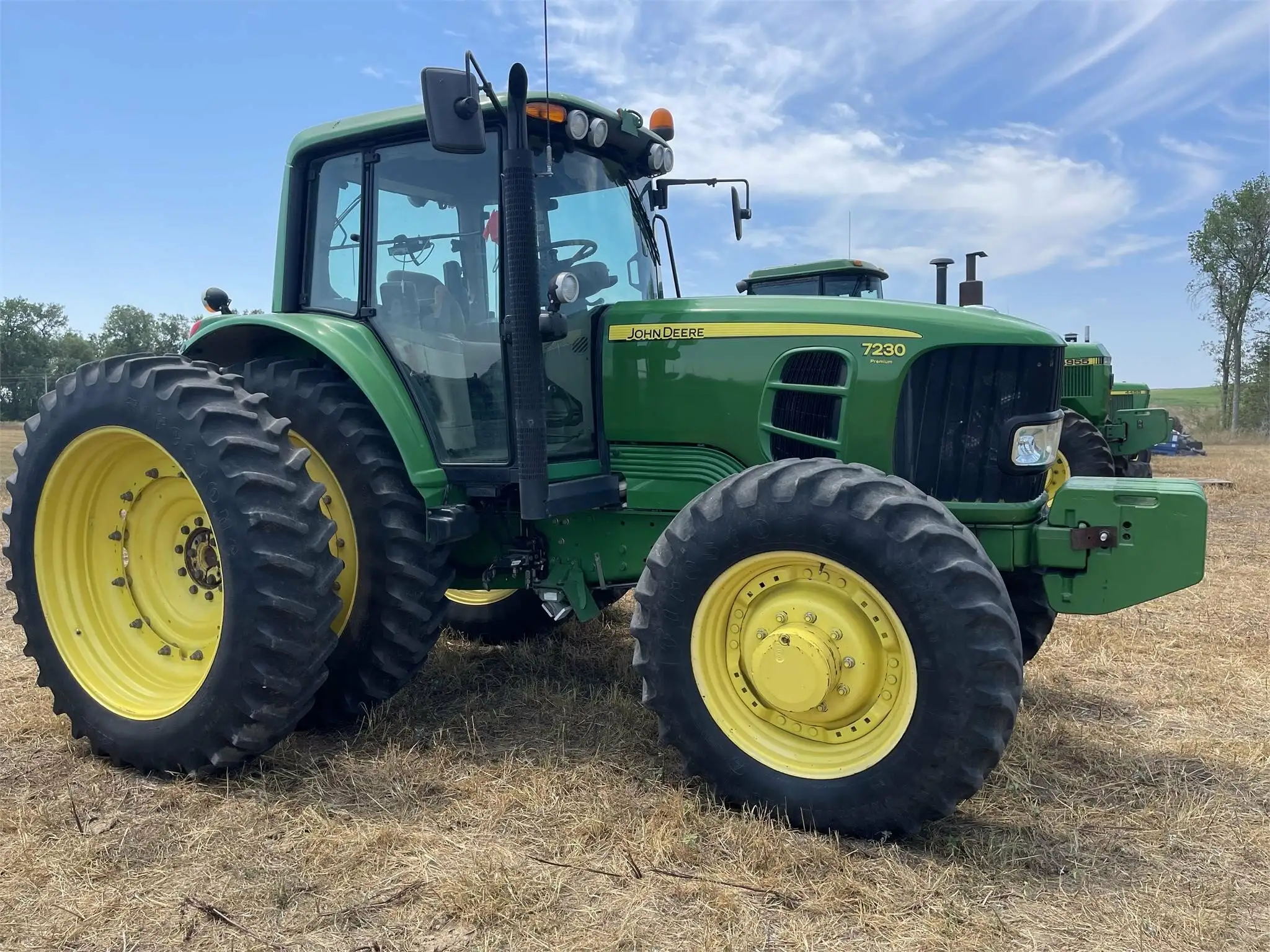

John Deere 7230

Name: John Deere 7230
Brand: John Deere

John Deere 7230 — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.

The John Deere 7230 is a tractor with a rated output of 135 hp, positioning it among the higher-powered machines in its class. Manufactured from 2007 to 2011, it features a 6-cylinder turbocharged diesel liquid-cooled engine, transmitting power to four-wheel drive via a powershift transmission. The listed weight of the John Deere 7230 ranges from 9657 to 12755 pounds. It is designed for use in areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

135 hp

Weight

9657 to 12755 pounds

Catalogue coverage

Variants represented

Richest spec table

158 rows

Recorded power

135 hp

Transmissions

12-speed full synchro shift

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Original price was $69,616 in 2011Reference

The basic 7230 was available with ROPS or a basic cab. Upgraded hydraulics and hitch were optional with ROPS. Upgraded systems with a cab were only available on the 7230 Premium model.Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Two-post Roll-Gard ROPS. Cab optional.Reference

Variants

7230base tractorReference

7230 Premiumdeluxe tractorReference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine (gross)100.7 kWReference

Engine100.7 kWReference

John Deere 6068HL280Reference

turbocharged dieselReference

6-cylinder 12-valveReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power100.7 kWReference

Air cleanerdual paper elementsReference

Rated RPM2300Reference

Idle RPM850-2460Reference

Operating RPM1500-2300Reference

Torque527.5 NmReference

Torque RPM1500Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity19.7 LReference

ROPS Coolant capacity31.0 LReference

Cab Coolant capacity33.7 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

John Deere 6068HL282Reference

Rated Power (gross)100.7 kWReference

Torque541.0 NmReference

Coolant capacity31.0 LReference

Coolant capacity33.7 LReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,300 RPMReference

Engine torque at rated speed181 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed full synchro shiftReference

16-speed full synchro shiftReference

16-speed partial power shiftReference

24-speed partial power shiftReference

TransmissionJohn Deere SyncroPlusReference

Typefull synchro shiftReference

Gears12 forward and 4 reverseReference

Oil capacity51.9 LReference

Four ranges, each with four forward gears and reverse operated via a range shift lever and gear shift lever. Cluch must be used to change range or gear. Only avaialable with ROPS.Reference

TransmissionJohn Deere SyncroPlus PowrReverserReference

Gears16 forward and reverseReference

Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range or gear.Reference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference

Gears24 forward and reverseReference

Six ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference

Transmission TypeSync ShuttleReference

Wheel Drive2WDReference

PTO & Hydraulics

PTO (claimed)82.0 kWReference

Hydraulic system51.9 LReference

Typeconstant flow load sensingReference

Typeclosed-center load sensing (optional ROPS)Reference

Capacity51.9 LReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow79.9 lpmReference

Pump flow109.8 lpmReference

Rear TypeIIReference

Controlposition controlReference

Controlelectronic lower-link (optional ROPS)Reference

Rear lift (at 24"/610mm)2683 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Engine RPM540@2124Reference

Engine RPM540@2143 (reversible)Reference

Engine RPM1000@2208Reference

Capacities

Fuel207.0 LReference

Fuel249.8 LReference

Front axle8.3 LReference

Front hubs1.5 LReference

Max capacity9500 kgReference

Fuel tank249.8 LReference

Crankcase oil volume20.8 qtsReference

Dimensions

2WD Wheelbase270 cmReference

4WD Wheelbase264 cmReference

Weight9657 to 12755 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R24. Rear: 18.4R38Reference

Length475 cmReference

Width166 cmReference

Height (ROPS)292 cmReference

Height (Folded ROPS)230 cmReference

Height (cab)290 cmReference

2WD Clearance (front axle)54 cmReference

4WD Clearance (front axle)58 cmReference

Clearance (rear axle)71 cmReference

Clearance (drawbar)48 cmReference

Flange rear axle1663 mmReference

Bar rear axle78 by 2555 mmReference

2WD Front tread151 to 217 cmReference

4WD Front tread150 to 223 cmReference

Rear tread161 to 184 cmReference

2WD Shipping4380 kgReference

4WD Shipping4650 kgReference

4WD Operating5785 kgReference

Ballasted6838 kgReference

Max Drawbar2249 kgReference

2WD Max front axle2050 kgReference

4WD Max front axle4499 kgReference

4WD Max front axle5000 kgReference

4WD Max front axle6579 kgReference

Max rear axle6899 kgReference

7230 Serial Number Location

Right side of main frame above front axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Battery volts12Reference

Speeds

With 18.4R38 rear tires.Reference

With 18.4R38 rear tires. Reverse speeds are approximately 5% faster than listed forward speeds.Reference

General

Make & ModelJohn DeereReference

Rear Axle TypeFlange | BarReference

Rollover protective structureTwo-post Roll-Gard ROPSReference

Country of manufacturerGermanyReference

Hydraulics

Capacity Valves12 valvesReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition control | electronic lower-link (optional ROPS)Reference

Power

Max Power135 hpReference

PTO

PTO Power110 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@2,124 RPMReference

Steering & brakes

BrakesDifferential hydraulic wet discReference

Steering typePowerReference

Dimensions & weight

Wheelbase270 cmReference

Height Over Cab290.6 cmReference

Height Over ROPS292.6 cmReference

Overall Length475.7 cmReference

Overall Width166.4 cmReference

Front axle clearance58.4 cmReference

Drawbar clearance48.3 cmReference

Overall weight4,650.2 kgReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Rear wheel tread range63.5 to 72.5 inchesReference

Front Wheel Type14.9R24Reference

Front Wheel tread range59.5 to 85.5 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
