Tractor · 2014Unverified

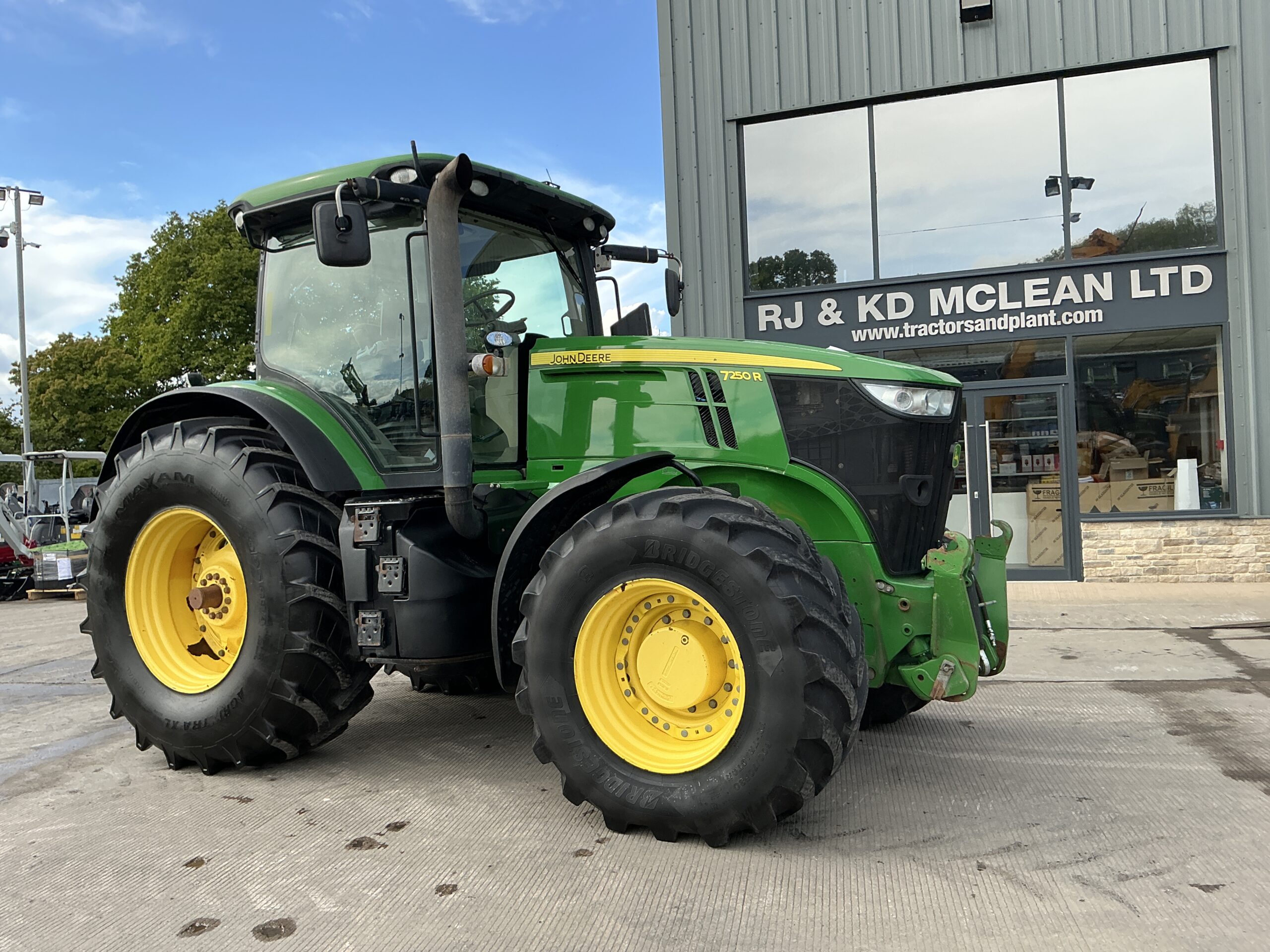

John Deere 7250R

Name: John Deere 7250R
Brand: John Deere

John Deere 7250R — 7R Series · 250 hp. Reference specifications; pending source verification.

The John Deere 7250R is a high-powered tractor with a rating of 250 hp, positioning it among the more powerful machines in its class. Manufactured from 2014 to 2019, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power through a mechanical front-wheel drive system coupled with a hydrostatic transmission. The listed weight of the 7250R is 12058 kg, and it is designed for use on large areas of approximately 1,500 acres and above.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

250 hp

Max power

180.4 kW

Weight

12058 kg

Catalogue coverage

Variants represented

Richest spec table

170 rows

Recorded power

250 hp

Recorded weight

12058 kg

Transmissions

23-speed full power shift

Production years

2014-2019

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Original price was $229,338 in 2014 with e23Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockfull-locking electro-hydraulic rearReference

Differential locklimited slip frontReference

Differential lockelectro-hydraulic front (optional)Reference

Steeringhydrostatic powerReference

SteeringActiveCommand Steering optionalReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakesdual-line air (optional)Reference

CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine (gross)186.4 kWReference

Engine (max)205.1 kWReference

Drawbar (tested)142.6 kWReference

John DeereReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)186.4 kWReference

Maximum Power (gross)205.1 kWReference

Fuel systemelectronic high pressure common railReference

Air cleanertwo stage dryReference

Compression16.7:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power180.4 kWReference

Power at rated engine speed160.0 kWReference

Max power142.6 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier 4 | selective catalytic reduction (SCR)Reference

Bore and stroke4.19x5.00 inchesReference

Compression ratio16.7:1Reference

Cooling systemliquid-cooledReference

Transmission

23-speed full power shiftReference

infinitely variable transmissionReference

TransmissionJohn Deere e23Reference

Typefull power shiftReference

Gears23 forward and 11 reverseReference

Clutchhydraulic wet discReference

Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions.Reference

TransmissionJohn Deere AutoPowr IVTReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.Reference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift - 23F x 11R | IVT -infinite forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)152.9 kWReference

PTO (tested)180.4 kWReference

Hydraulic system65.1 LReference

Hydraulic system20.1 LReference

Typeclosed-center pressure and flow compensatedReference

Capacity65.1 LReference

Capacity20.1 LReference

Pressure204.0 barReference

Rear valves3 to 6Reference

Mid valves0 to 3Reference

Front valves0 to 2Reference

Pump flow162.8 lpmReference

Pump flow223.3 lpmReference

Rear SCV flow132.5 lpmReference

Front SCV flow124.9 lpmReference

Rear TypeIII/IIINReference

Controlelectro-hydraulic draft sensingReference

Rear lift10206 kgReference

Rear Armshydraulic center link (optional)Reference

Front HitchIIIN (optional)Reference

Front lift (at ends)5200 kgReference

DrawbarCat. 3 adjustable swinging drawbar. Optional heavy-duty support.Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Front PTO Type1000 (1.75)Reference

Power at rated PTO speed176.2 kWReference

Capacities

Fuel473.1 LReference

Fuel495.8 LReference

Fuel518.5 LReference

Fuel541.3 LReference

Exhaust fluid (DEF)25.7 LReference

Dimensions

Wheelbase292 cmReference

Weight12058 kgReference

Front tire380/80R38Reference

Rear tire480/80R50Reference

Standard tires (ag)Front: 380/80R38. Rear: 480/80R50Reference

Length551 cmReference

Height (cab)325 cmReference

Height (cab)335 cmReference

Clearance (front axle)60 cmReference

Clearance (front axle)63 cmReference

Clearance (rear axle)58 cmReference

Clearance (rear axle)63 cmReference

Clearance (drawbar)35 cmReference

Clearance (drawbar)43 cmReference

Front axle1300 MFWDReference

Front axleTriple-Link Suspension PlusReference

Rear axle109 by 2550 mmReference

Rear axle109 by 3009 mmReference

Rear axle119 by 2550 mmReference

Rear axle119 by 3009 mmReference

Front tread152 to 223 cmReference

Rear tread196 to 254 cmReference

Rear tread220 to 277 cmReference

Rear tread241 to 298 cmReference

John Deere 7250R attachments

front-end loaderReference

7250R Serial Numbers

Location:Right side of tractor frame above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging amps240 (optional)Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Battery Group31Reference

Total cold cranking amps925 CCAReference

Test results

Diesel e23 4WDApril 24 - 30, 2014Link: OCED Tractor Test 2085 fileReference

PTO performanceReference

Fuel use50.3 l/hourReference

Fuel use46.2 l/hourReference

Fuel use50.0 l/hourReference

Drawbar performanceReference

Fuel use45.8 l/hourReference

Gear 9 used for power test.Reference

Max pull10235 kgReference

Gear 7 used for pull test.Reference

Speeds

With Group 48 rear tires and 50 kph option.Reference

With 50 KPH speed option.Reference

General

Make & ModelJohn DeereReference

SCV controlJoystickReference

Drawbar categoryCat. 3 adjustable swinging drawbar. Optional heavy-duty support.Reference

Front Axle Type1,300 MFWD | Triple-Link Suspension PlusReference

Country of manufacturerWaterloo, Iowa, USAReference

Hydraulics

Capacity Valves24 valveReference

Pump Rated Output (total)59 gpmReference

Hydraulics Typeclosed-center pressure and flow compensatedReference

Maximum operating pressure2,958 psiReference

Number of rear selective control valves (SCVs)3 to 6 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Rear Hitch maximum lift capacity10,205.8 kgReference

Rear Hitch Sensing Typeelectro-hydraulic draft sensingReference

Front Hitch category (SAE designation)Category IIIN (optional)Reference

Power

Rated Power250 hpReference

PTO

PTO Power205 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic power, ActiveCommand Steering optionalReference

Dimensions & weight

Height Over Cab335.3 cmReference

Overall Length551.2 cmReference

Front axle clearance63.5 cmReference

Drawbar clearance43.2 cmReference

Overall weight12,058.7 kgReference

Wheels & tyres

Rear wheel tread range95 to 117.4 inchesReference

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
