Tractor · 2011Unverified

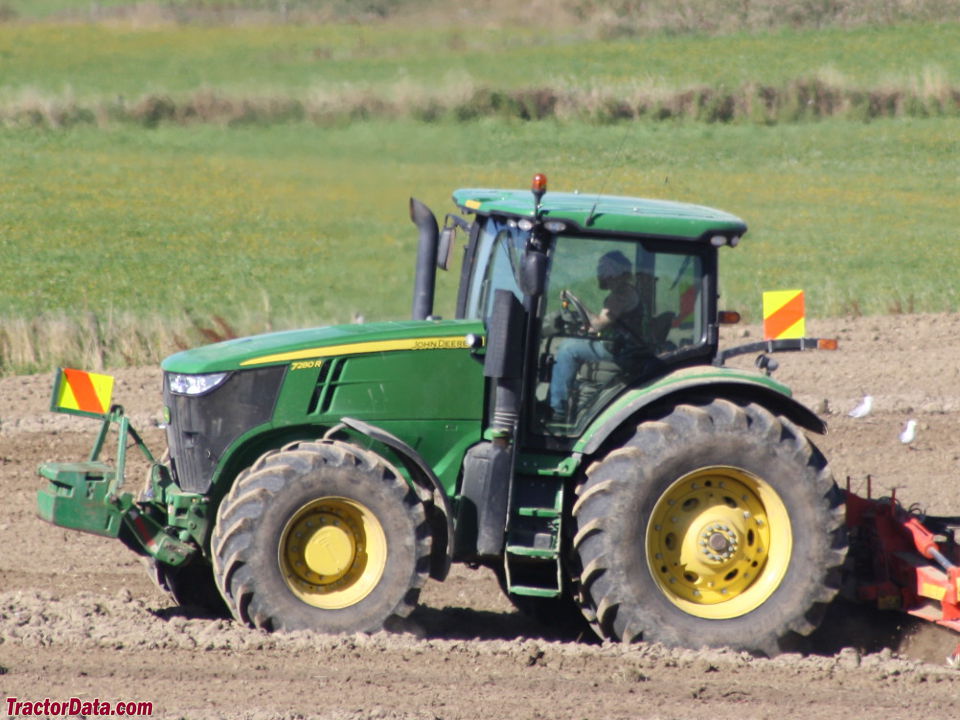

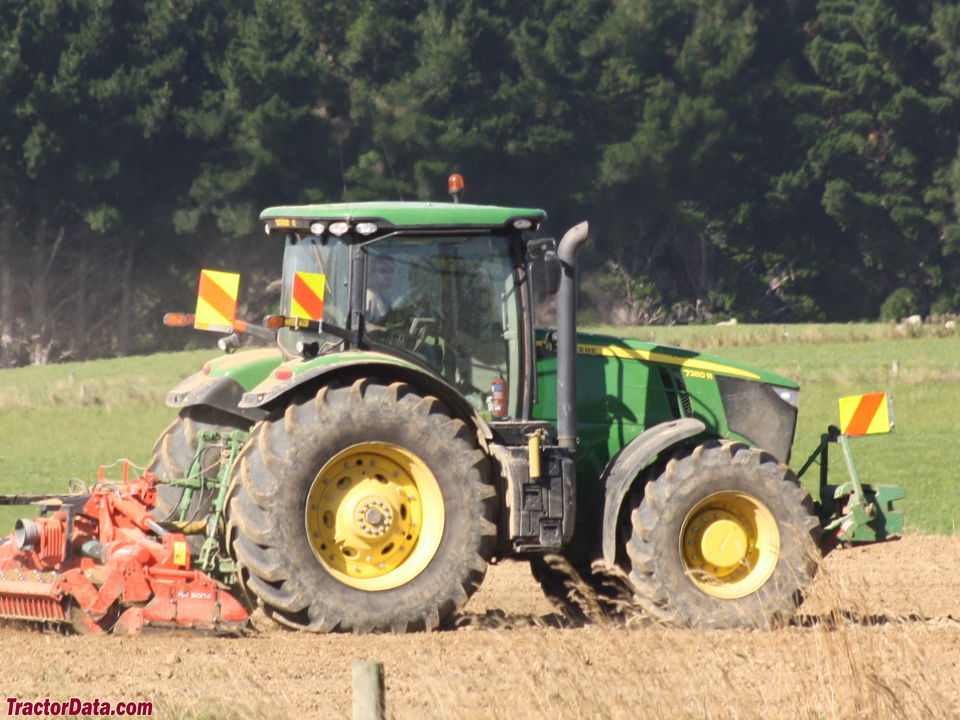

John Deere 7280R
John Deere 7280R — 7R Series · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Max power
205.7 kW
Weight
12328 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockfull-locking electrohydraulic rear. Limited slip front axle. Electrohydraulic on TLS Plus front axle with front brakes.Reference
Steeringhydrostatic powerReference
SteeringActiveCommand Steering optionalReference
CommandView II Cab. AutoTrac ready. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available.Reference
Engine
John Deere 9.0L 6-cyl dieselReference
Fuel tank522.3 LReference
Fuel tank545.0 LReference
Engine (gross)208.8 kWReference
Engine (max)229.7 kWReference
Drawbar (tested)148.3 kWReference
John Deere PowerTech PVXReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 4AReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)208.8 kWReference
Maximum Power (gross)229.7 kWReference
Fuel systemelectronic high-pressure common railReference
Air cleanerdual stage dryReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power205.7 kWReference
Power at rated engine speed177.5 kWReference
Max power148.3 kWReference
Transmission
infinitely variable transmissionReference
TransmissionJohn Deere IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)173.0 kWReference
PTO (tested)205.7 kWReference
Typeclosed-center pressure and flow compensated (PFC)Reference
Pressure204.0 barReference
Rear valves6 (max)Reference
Mid valves0 to 2Reference
Pump flow162.8 lpmReference
Pump flow223.3 lpmReference
SCV flow132.5 lpmReference
Rear Type3/3NReference
Controlelectrohydraulic sensingReference
Rear lift6894 kgReference
Rear lift7847 kgReference
Front Hitch3N (optional)Reference
Front lift5200 kgReference
DrawbarCategory 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional.Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375/1.75)Reference
Rear PTO Type540/540E/1000 (1.375/1.75)Reference
Rear PTO Type540/540E/1000/1000E (1.375/1.75)Reference
Engine RPM540@1950Reference
Engine RPM540E@1750Reference
Engine RPM1000@1950Reference
Engine RPM1000E@1950Reference
Front PTOoptionalReference
Front PTO Type1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Power at rated PTO speed199.3 kWReference
Dimensions
Wheelbase292 cmReference
Weight12328 kgReference
Front axle1300 Series standardReference
Front axleTriple-Link Suspension Plus optionalReference
Standard axle rear axle109 by 2550 mmReference
Rear axle109 by 3009 mmReference
Rear axle119 by 2550 mmReference
Rear axle119 by 3009 mmReference
Front tread152 to 223 cmReference
12328 kgReference
Max front axle6500 kgReference
Max rear axle11000 kgReference
John Deere 7280R attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity16000 kgReference
Test results
Diesel IVT 4WDApril 27 - May 15, 2012Link: OCED Tractor Test 2024 fileReference
PTO performanceReference
Fuel use56.4 l/hourReference
Fuel use51.9 l/hourReference
Fuel use56.0 l/hourReference
Drawbar performanceReference
Fuel use52.2 l/hourReference
Pull at 9.0 KPHReference
Max pull10730 kgReference
Pull at 4.5 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
