John Deere 7310R
John Deere 7310R — 7R Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Max power
231.0 kW
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfull-locking electro-hydraulic rearReference
Differential locklimited slip frontReference
Differential lockelectro-hydraulic front (optional)Reference
Steeringhydrostatic powerReference
SteeringActiveCommand Steering optionalReference

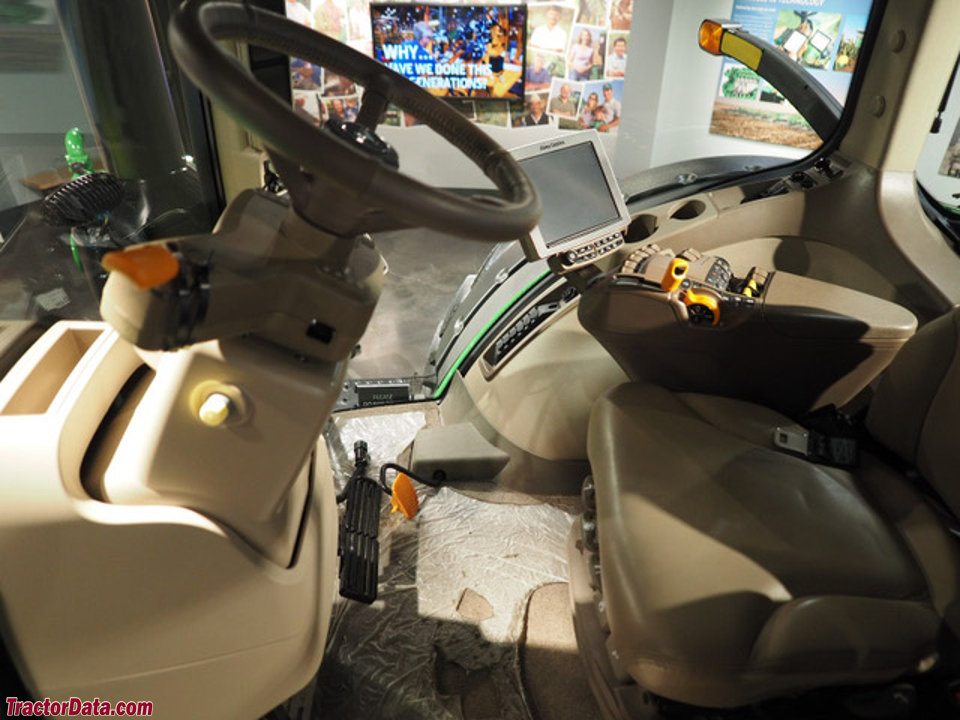

CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.Reference
Engine
John Deere 9.0L 6-cyl dieselReference
Exhaust fluid (DEF)25.7 LReference
Engine (gross)231.2 kWReference
Drawbar (tested)190.6 kWReference
John DeereReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 4Reference
Rated Power (gross)231.2 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanertwo stage dryReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power231.0 kWReference
Power at rated engine speed203.1 kWReference
Max power190.6 kWReference
Transmission
23-speed full power shiftReference
infinitely variable transmissionReference
TransmissionJohn Deere e23Reference
Typefull power shiftReference
Gears23 forward and 11 reverseReference
Clutchhydraulic wet discReference
Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions.Reference
TransmissionJohn Deere AutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.Reference
PTO & Hydraulics
PTO (claimed)193.9 kWReference
PTO (tested)231.0 kWReference
Typeclosed-center pressure and flow compensatedReference
Pressure204.0 barReference
Rear valves3 to 6Reference
Pump flow162.8 lpmReference
Pump flow223.3 lpmReference
Rear SCV flow132.5 lpmReference
Front SCV flow124.9 lpmReference
Rear TypeIII/IIINReference
Controlelectro-hydraulic draft sensingReference
Rear lift10206 kgReference
Rear Armshydraulic center link (optional)Reference
Front HitchIIIN (optional)Reference
Front lift (at ends)5200 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Power at rated PTO speed225.5 kWReference
Dimensions
Wheelbase292 cmReference
Length553 cmReference
Clearance (front axle)60 cmReference
Clearance (front axle)63 cmReference
Clearance (front axle)66 cmReference
Clearance (rear axle)58 cmReference
Clearance (rear axle)63 cmReference
Clearance (rear axle)68 cmReference
Clearance (drawbar)35 cmReference
Clearance (drawbar)43 cmReference
Clearance (drawbar)45 cmReference
Front axle1300 MFWDReference
Front axleTriple-Link Suspension PlusReference
Rear axle109 by 2550 mmReference
Rear axle109 by 3009 mmReference
Rear axle119 by 2550 mmReference
Rear axle119 by 3009 mmReference
Front tread152 to 223 cmReference
John Deere 7310R attachments
front-end loaderReference
7310R Serial Numbers
Location:Right side of tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240 (optional)Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
John Deere 7310R Height
Cab325 cmReference
Cab335 cmReference
Cab345 cmReference
Test results
Diesel e23 4WDMarch 23 - April 2, 2015Link: OCED Tractor Test 2113 fileReference
PTO performanceReference
Fuel use60.6 l/hourReference
Fuel use56.0 l/hourReference
Drawbar performanceReference
Gear 11 used for power test.Reference
Max pull103 kgReference
Gear 8 used for pull test.Reference
Speeds
With Group 48 rear tires and 50 kph option.Reference
With 50 KPH speed option.Reference
