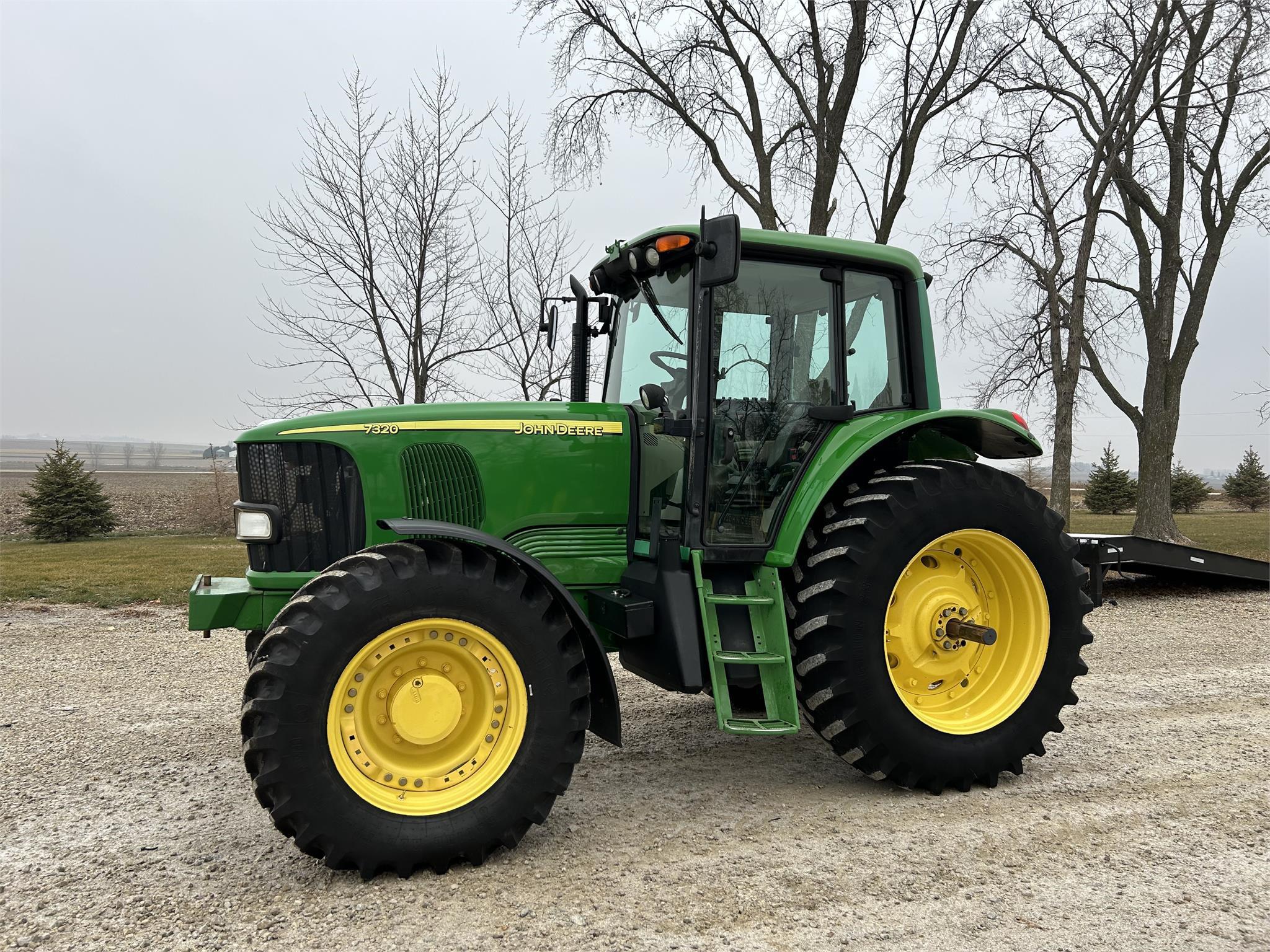

John Deere 7320
John Deere 7320 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Max power
87.3 kW
Weight
5899 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
ComfortGard Cab standard with air-conditioning. Open station with two-post ROPS available.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank207.0 LReference
Engine93.2 kWReference
Drawbar (tested)69.6 kWReference
John Deere PowerTech 6068HF475Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power93.2 kWReference
Compression16.9:1Reference
Rated RPM2300Reference
Idle RPM850-2450Reference
Operating RPM1300-2300Reference
Torque508.5 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.1 kWReference
Oil capacity21.0 LReference
Coolant capacity23.8 LReference
Max power87.3 kWReference
Power at rated engine speed81.9 kWReference
Max power69.6 kWReference
Transmission
16-speed partial power shiftReference
24-speedReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity51.9 LReference
Four power shift speeds (1-4) in four ranges (A-D) with left-hand reverser.Reference
TransmissionAutoQuadReference
Gears24 forward and reverseReference
TransmissionInfinitely Variable Transmission (IVT)Reference
Gearsinfinite forward and reverseReference
available with MFWD onlyReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)87.3 kWReference
Typeclosed-center PFCReference
Valves4Reference
Pump flow101.1 lpmReference
Rear Type2Reference
Rear lift3379 kgReference
Rear lift3946 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2143Reference
Engine RPM1000@2143Reference
Front PTOindependentReference
Front PTO Type1000 (6-spline)Reference
Front PTO Type1000 (21-spline)Reference
Engine RPM1000@2185Reference
Power at rated PTO speed86.0 kWReference
Dimensions
2WD Wheelbase286 cmReference
4WD Wheelbase264 cmReference
Weight5899 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length513 cmReference
Width243 cmReference
Height285 cmReference
4WD Clearance (front axle)52 cmReference
Flanged rear axle1663 mmReference
Rack-and-pinion rear axle86 by 2438 mmReference
Rack-and-pinion rear axle86 by 2806 mmReference
Front tread151 to 222 cmReference
Front tread150 to 211 cmReference
Rear tread152 to 223 cmReference
Rear tread193 to 243 cmReference
Rear tread152 to 265 cmReference
Rear tread152 to 302 cmReference
Operating5899 kgReference
Max Drawbar2247 kgReference
Max front axle3796 kgReference
Max front axle6849 kgReference
Max rear axle6699 kgReference
John Deere 7320 attachments
front-end loaderReference
7320 Serial Numbers
Location:On the main tractor frame, right side, above the front axle.Reference
20031001Reference
200410001Reference
200530001Reference
200645001Reference
200760001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps115Reference
Charging amps150Reference
Battery CCA850Reference
Battery volts12Reference
Capacities
Max capacity8495 kgReference
Test results
Diesel AutoQuad 4WDMay 2002 - July 2002, Link: OCED Tractor Test 2038 fileReference
PTO performanceReference
Fuel use24.6 l/hourReference
Fuel use25.4 l/hourReference
Drawbar performanceReference
Fuel use25.0 l/hourReference
Max pull5955 kgReference
Speeds
With 20.8-38 rear tires.Reference
