Tractor · 2007Unverified

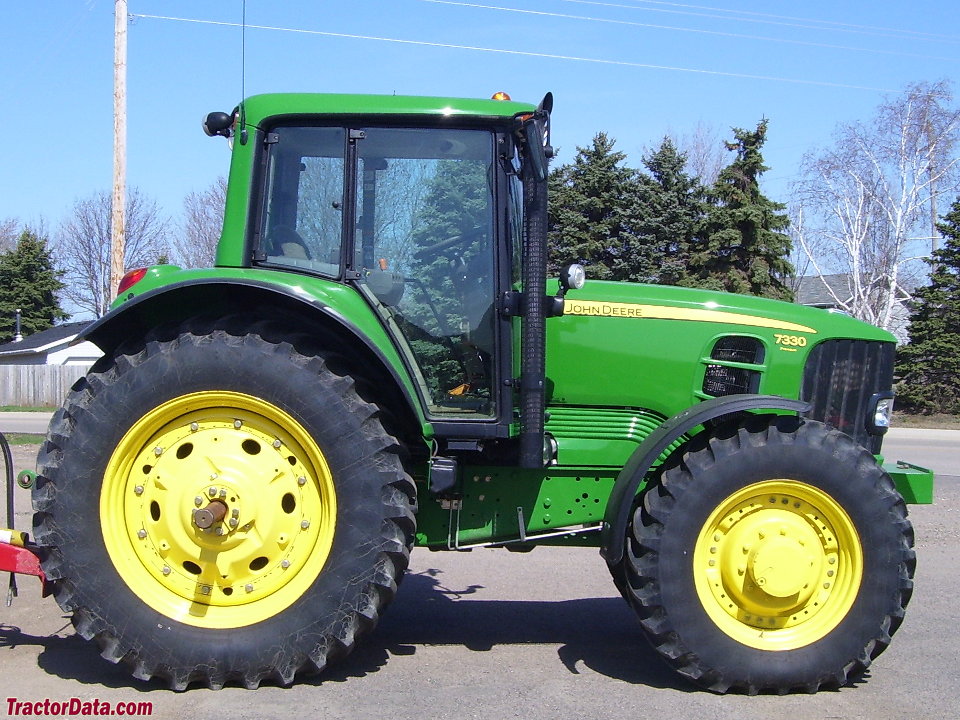

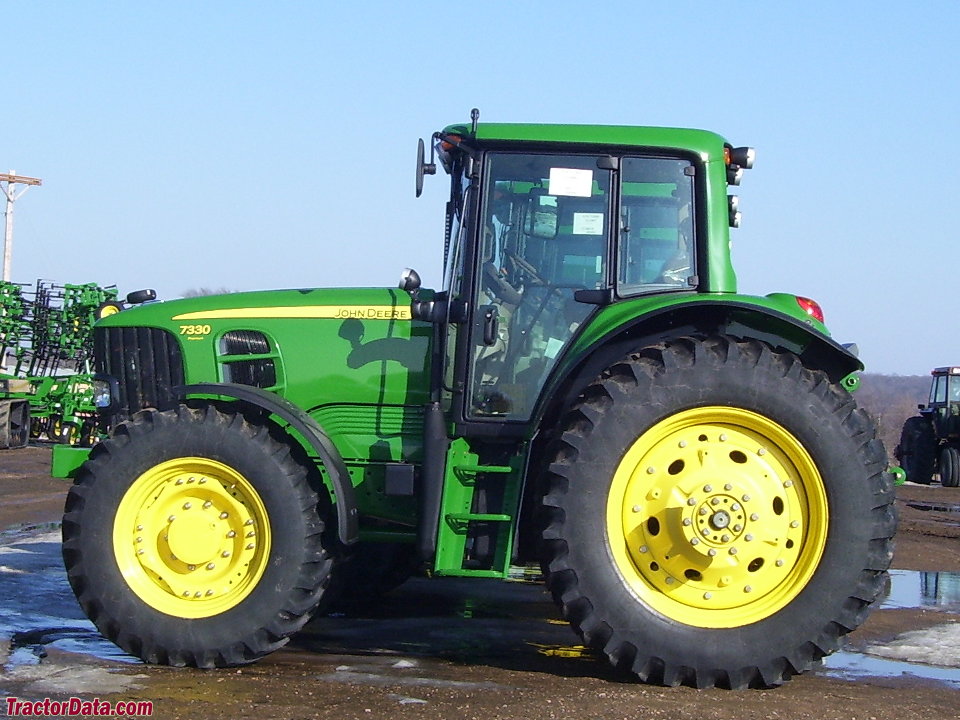

John Deere 7330 Premium
John Deere 7330 Premium — Row-Crop tractor · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Max power
104.9 kW
Weight
10800 to 13360 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price$121,658 (2011)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension.Reference
Variants
7330base tractorReference
7330 Premiumdeluxe tractorReference
7330 Premium High-Crophigh-clearanceReference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (gross)115.6 kWReference
Drawbar (tested)86.0 kWReference
John Deere PowerTech Plus 6068HRW75Reference
variable geometry turbocharger dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)115.6 kWReference
Fuel systemhigh-pressure common railReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Torque701.1 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.7 LReference
Oil change250 hReference
Oil change500 h (premium oil)Reference
Coolant capacity33.7 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere PowerTech E 6068HRW74Reference
turbocharged dieselReference
6-cylinder 12-valveReference
The optional 2-valve PowerTech E engine elminates the exhaust-gas recirculation (EGR) and variable geometry turbocharger. When equipped with the PowerTech E, the 7330 Premium could only be fitted with the 16-speed PowrQuad Plus transmission.Reference
Compression19:1Reference
Torque687.5 NmReference
Torque RPM1500Reference
Max power104.9 kWReference
Power at rated engine speed96.6 kWReference
Max power86.0 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Oil capacity56.0 LReference
Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
TransmissionJohn Deere AutoQuad PlusReference
Gears20 forward and reverseReference
Five ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.Reference
TransmissionJohn Deere IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity65.9 LReference
The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.Reference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (claimed)94.7 kWReference
PTO (tested)104.9 kWReference
Hydraulic system56.0 LReference
Hydraulic system65.9 LReference
Typeclosed center pressure and flow compensated (PFC)Reference
Capacity56.0 LReference
Capacity65.9 LReference
Pressure200.0 barReference
Rear valves2 to 4Reference
Pump flow109.8 lpmReference
Rear TypeIIReference
Rear TypeIIIN/II (optional)Reference
Controlelectronic lower linkReference
Rear lift (at 24"/610mm)3991 kgReference
Rear lift (at 24"/610mm)4513 kgReference
Rear lift (at 24"/610mm)3719 kgReference
Rear lift (at 24"/610mm)4263 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000 (optional)Reference
Engine RPM540@1995 (reversible)Reference
Engine RPM1000@1995 (reversible)Reference
Engine RPM540@1987 (shiftable)Reference
Engine RPM540E@1753Reference
Engine RPM1000@2000 (shiftable)Reference
Front PTO Type1000Reference
Engine RPM1000@1995Reference
Power at rated PTO speed101.9 kWReference
Capacities
Fuel249.8 LReference
Fuel314.2 LReference
Front axle8.3 LReference
Front hubs1.5 LReference
Max capacity10999 kgReference
Dimensions
Wheelbase286 cmReference
Wheelbase264 cmReference
Weight10800 to 13360 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length475 cmReference
Height (cab)290 cmReference
Clearance (front axle)54 cmReference
Clearance (rear axle)71 cmReference
Clearance (drawbar)48 cmReference
Rear axle85 by 2438 mmReference
Rear axle85 by 2806 mmReference
Rear axle1651 mmReference
Front tread151 to 217 cmReference
Front tread152 to 223 cmReference
Rear tread152/162/172/182/193/203 cmReference
Rear tread152 to 265 cmReference
Rear tread152 to 302 cmReference
Shipping4898 kgReference
Shipping5880 kgReference
Operating6060 kgReference
Max Drawbar2449 kgReference
Max front axle2998 kgReference
Max front axle4998 kgReference
Max front axle6500 kgReference
Max front axle7799 kgReference
Max rear axle7799 kgReference
7330 Premium Serial Number Location
Right side of main frame above front axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging volts14Reference
Battery volts12Reference
Test results
Diesel PowrQuad Plus 4WDMarch 26 - April 21, 2009Link: OCED Tractor Test 1952 fileReference
PTO performanceReference
Fuel use31.0 l/hourReference
Fuel use29.9 l/hourReference
Fuel use30.7 l/hourReference
Drawbar performanceReference
Fuel use30.3 l/hourReference
Max pull7122 kgReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
