Tractor · 2007Unverified

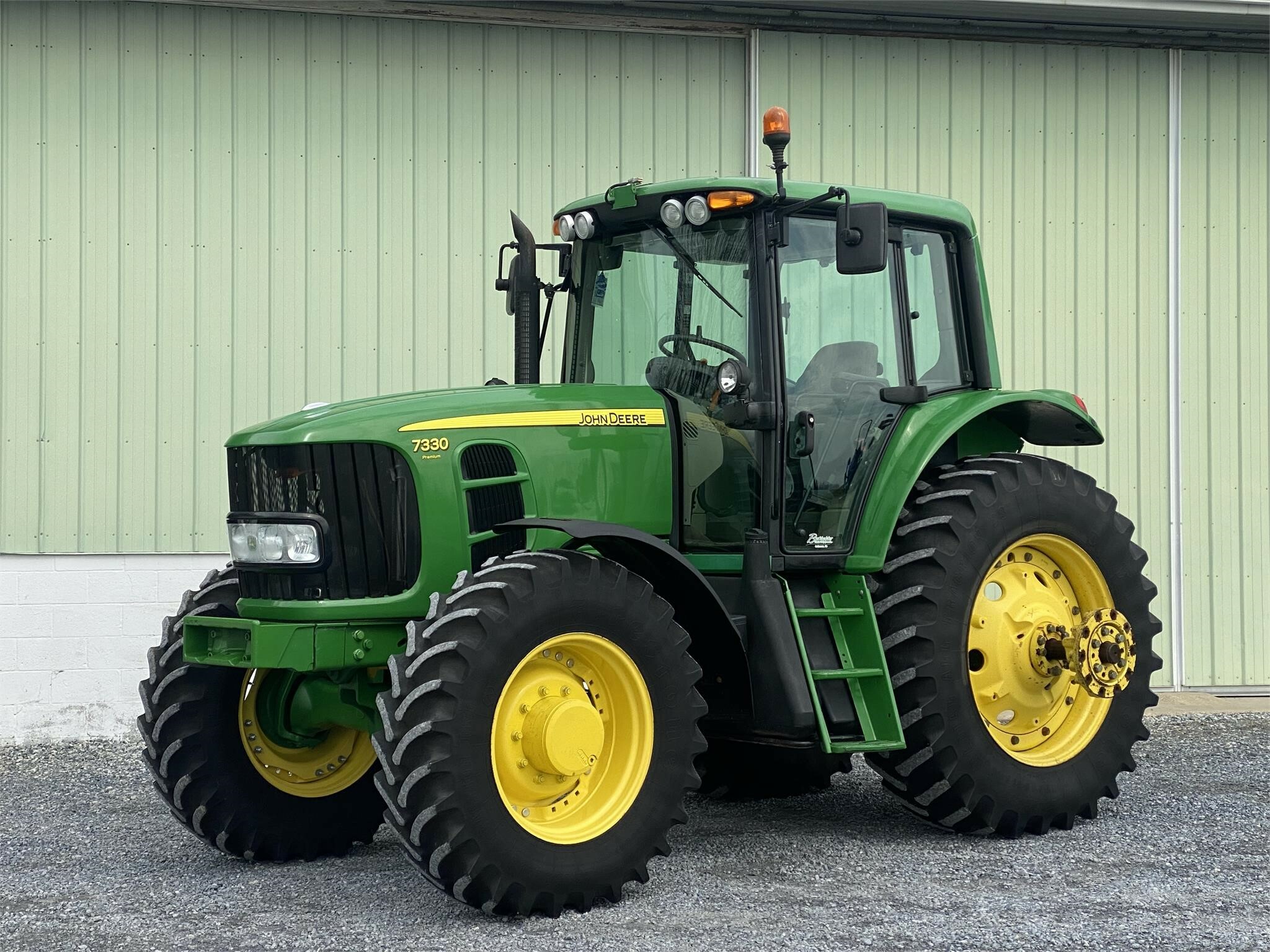

John Deere 7330 Premium High-Crop
John Deere 7330 Premium High-Crop — High-Clearance tractor · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
10800 to 13360 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Original price$121,658 (2011)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ComfortGard Premium cab standard.Reference
Variants
7330base tractorReference
7330 Premiumdeluxe tractorReference
7330 Premium High-Crophigh-clearanceReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank249.8 LReference
Fuel tank314.2 LReference
Engine (gross)115.6 kWReference
John Deere PowerTech Plus 6068HRW75Reference
variable geometry turbocharger dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)115.6 kWReference
Fuel systemhigh-pressure common railReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Torque701.1 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.7 LReference
Oil change250 hReference
Oil change500 h (premium oil)Reference
Coolant capacity33.7 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere PowerTech E 6068HRW74Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Compression19:1Reference
Transmission
16-speedReference
20-speedReference
32-speedReference
TransmissionJohn Deere PowrQuad PlusReference
Gears16 forward and reverseReference
Clutchwet discReference
TransmissionJohn Deere AutoQuad PlusReference
Gears20 forward and reverseReference
TransmissionJohn Deere AutoQuad Plus CreeperReference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)94.7 kWReference
Typeclosed center pressure and flow compensated (PFC)Reference
Pressure200.0 barReference
Rear valves2 to 4Reference
Pump flow109.8 lpmReference
Rear TypeIIReference
Rear TypeIIIN/II (optional)Reference
Controlelectronic lower linkReference
Rear lift (at 24"/610mm)3991 kgReference
Rear lift (at 24"/610mm)4513 kgReference
Rear lift (at 24"/610mm)3719 kgReference
Rear lift (at 24"/610mm)4263 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000 (optional)Reference
Engine RPM540@1987Reference
Engine RPM1000@1995Reference
Front PTO Type1000Reference
Dimensions
Wheelbase276 cmReference
Weight10800 to 13360 poundsReference
Front tire320/90R46Reference
Rear tire320/90R46Reference
Standard tires (ag)Front: 320/90R46. Rear: 320/90R46Reference
Length452 cmReference
Height (cab)314 cmReference
Clearance (front axle)68 cmReference
Clearance (rear axle)105 cmReference
Clearance (drawbar)78 cmReference
Rear axle1800 mmReference
Front tread162 to 223 cmReference
Rear tread152/162/172/182/193/203/213/223 cmReference
Shipping4898 kgReference
Shipping5880 kgReference
Operating6060 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging volts14Reference
Battery volts12Reference
Speeds
With 320/90R46 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
