Tractor · 2007Unverified

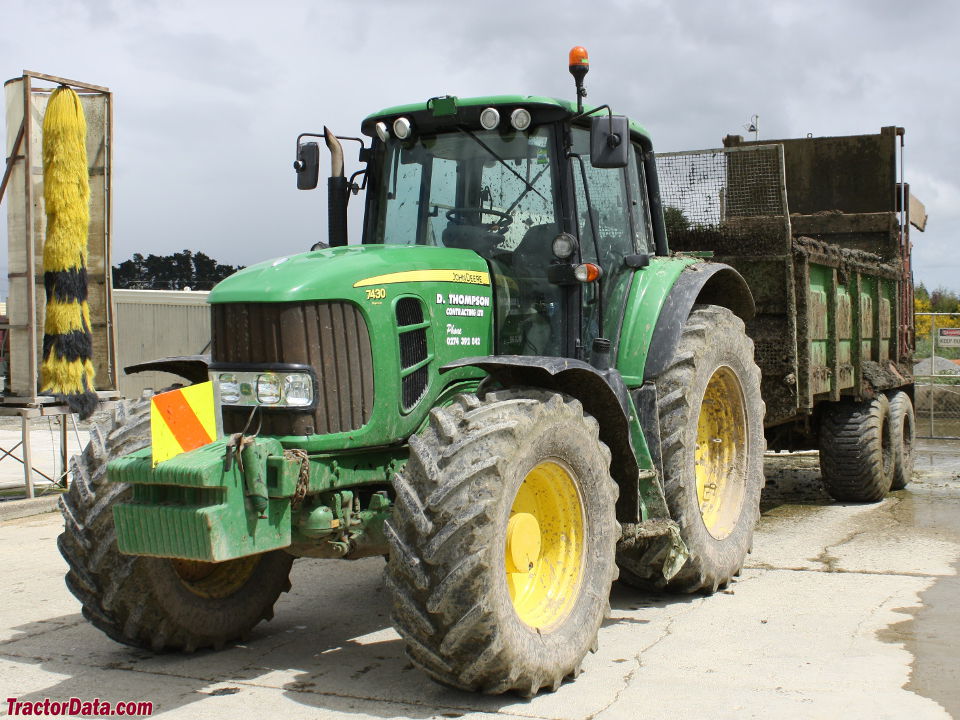

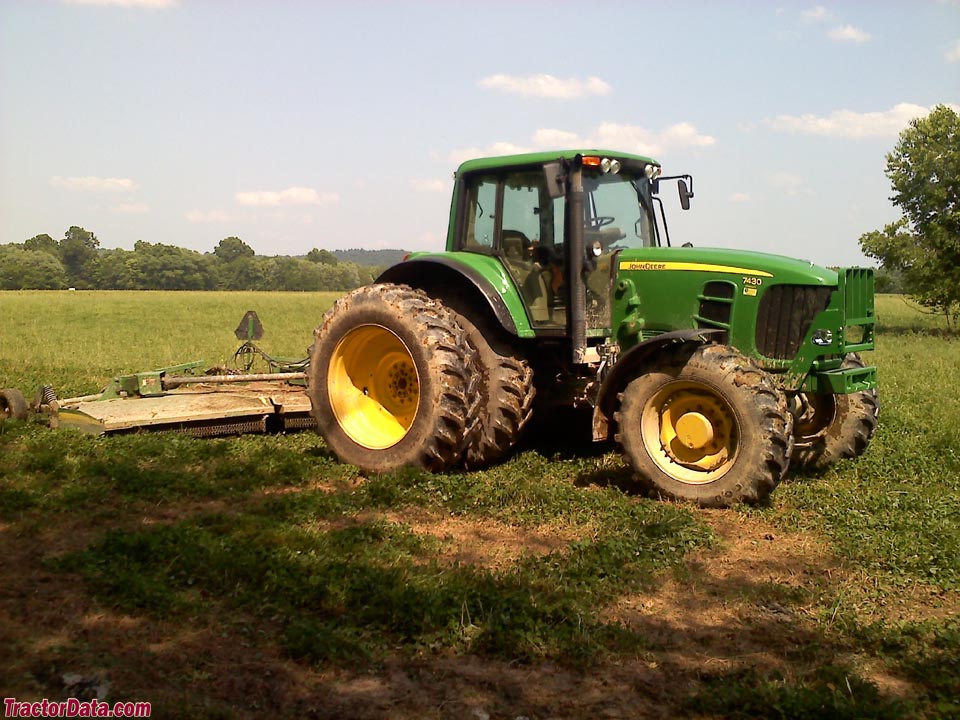

John Deere 7430 Premium
John Deere 7430 Premium — Row-Crop tractor · 141 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
141 hp
Max power
120.2 kW
Weight
14594 to 15015 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
FactoriesWaterloo, Iowa, USAReference
FactoriesMannheim, Baden-Württemberg, GermanyReference
Original price$129,670 (2010)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
ComfortGard Premium cab standard.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine123.8 kWReference
Drawbar (tested)94.4 kWReference
John Deere 6068HRW74Reference
turbocharged intercooled dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power123.8 kWReference
Air cleanerdual paper elementsReference
Compression17.0:1Reference
Rated RPM2100Reference
Torque763.4 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity19.7 LReference
Coolant capacity28.0 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere 6068HRW77Reference
6-cylinder 24-valveReference
Torque775.6 NmReference
Torque RPM1600Reference
Max power120.2 kWReference
Power at rated engine speed105.2 kWReference
Max power94.4 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionPowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity56.0 LReference
Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
TransmissionAutoQuad PlusReference
Gears20 forward and reverseReference
Five ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.Reference
TransmissionJohn Deere IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity65.9 LReference
The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.Reference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)120.2 kWReference
Hydraulic system51.9 LReference
Hydraulic system60.2 LReference
Typeconstand flow load sensingReference
Typeclosed-center pressure and flow compensated (Premium)Reference
Capacity51.9 LReference
Capacity60.2 LReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow109.8 lpmReference
Rear TypeIIIReference
Rear lift (at ends)4808 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000/1000E (optional)Reference
Front PTOindependentReference
Front PTO Type1000 (optional)Reference
Power at rated PTO speed117.3 kWReference
Capacities
Fuel302.8 LReference
Dimensions
Wheelbase268 cmReference
Weight14594 to 15015 poundsReference
Front tire16.9R28Reference
Rear tire18.4R42Reference
Ag front16.9R28Reference
Ag rear18.4R42Reference
Length479 cmReference
Height (cab)304 cmReference
Clearance (front axle)57 cmReference
Clearance (rear axle)63 cmReference
Clearance (drawbar)53 cmReference
Rear axle91 by 2438 mmReference
Rear axle91 by 2806 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 265 cmReference
Rear tread152 to 302 cmReference
Shipping6619 kgReference
Operating6810 kgReference
Ballasted8663 kgReference
7430 Premium Serial Numbers
Location:On right side of main tractor frame.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel IVT 4WDMarch 27 - April 24, 2008Link: OCED Tractor Test 1923 fileReference
PTO performanceReference
Fuel use35.2 l/hourReference
Fuel use32.2 l/hourReference
Fuel use34.4 l/hourReference
Drawbar performanceReference
Fuel use31.8 l/hourReference
Pull at 10 kphReference
Max pull8315 kgReference
Pull at 2.2 kphReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
