Industrial Tractor · 1989Unverified

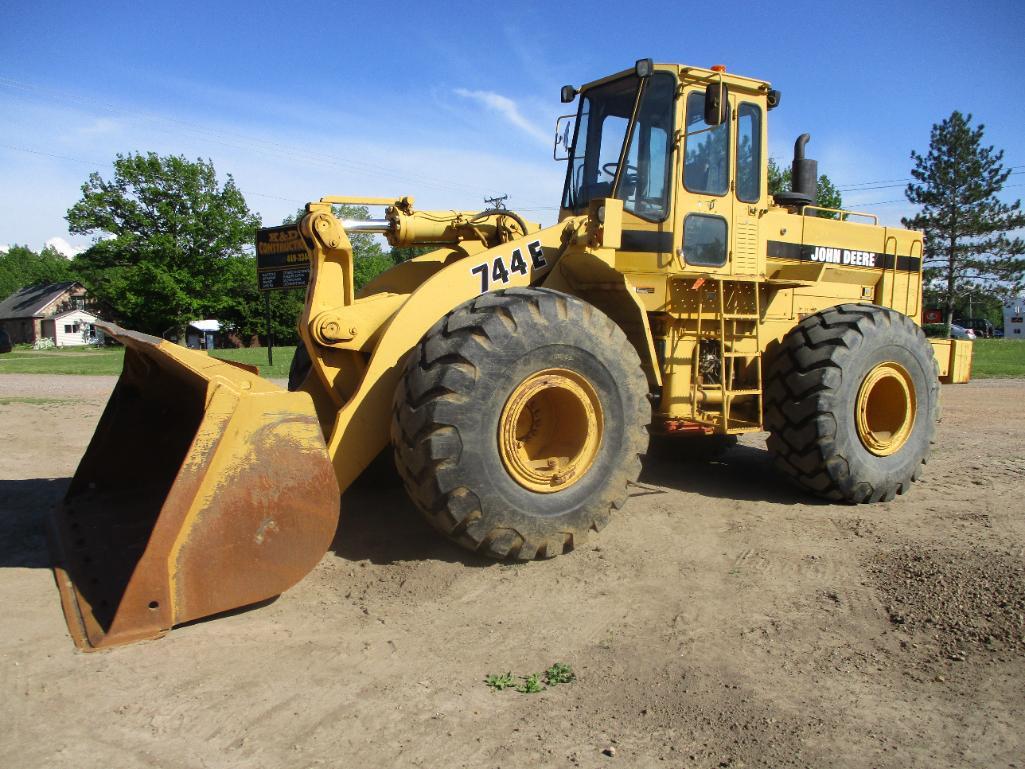

John Deere 744E
John Deere 744E — Wheel Loader · 260 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
260 hp
Weight
21006 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Wheel LoaderReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS canopy. Cab available with optional air-conditioning.Reference
Engine
John Deere 10.1L 6-cyl dieselReference
Fuel tank329.3 LReference
Engine (gross)193.9 kWReference
Engine (net)186.4 kWReference
John Deere 6101ATReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.1 LReference
Bore/Stroke130 x 127 mmReference
Power (net)186.4 kWReference
Power (gross)193.9 kWReference
Air cleanerdryReference
Rated RPM2000Reference
Torque1017.0 NmReference
Torque RPM1700Reference
StarterelectricReference
Starter volts24Reference
Oil capacity32.2 LReference
Coolant capacity53.9 LReference
Transmission
4-speed power shiftReference
Typepower shiftReference
Gears4 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure215.7 barReference
Pump flow310.4 lpmReference
Dimensions
Wheelbase340 cmReference
Weight21006 kgReference
Front tire23.5-25Reference
Rear tire23.5-25Reference
Industrial front23.5-25Reference
Industrial rear23.5-25Reference
Industrial front26.5-25Reference
Industrial rear26.5-25Reference
Length802 cmReference
Width281 cmReference
Height (cab)354 cmReference
Height (exhaust)344 cmReference
Operating weight21006 kgReference
Front tread225 cmReference
Rear tread225 cmReference
John Deere 744E attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
