Tractor · 1981Unverified

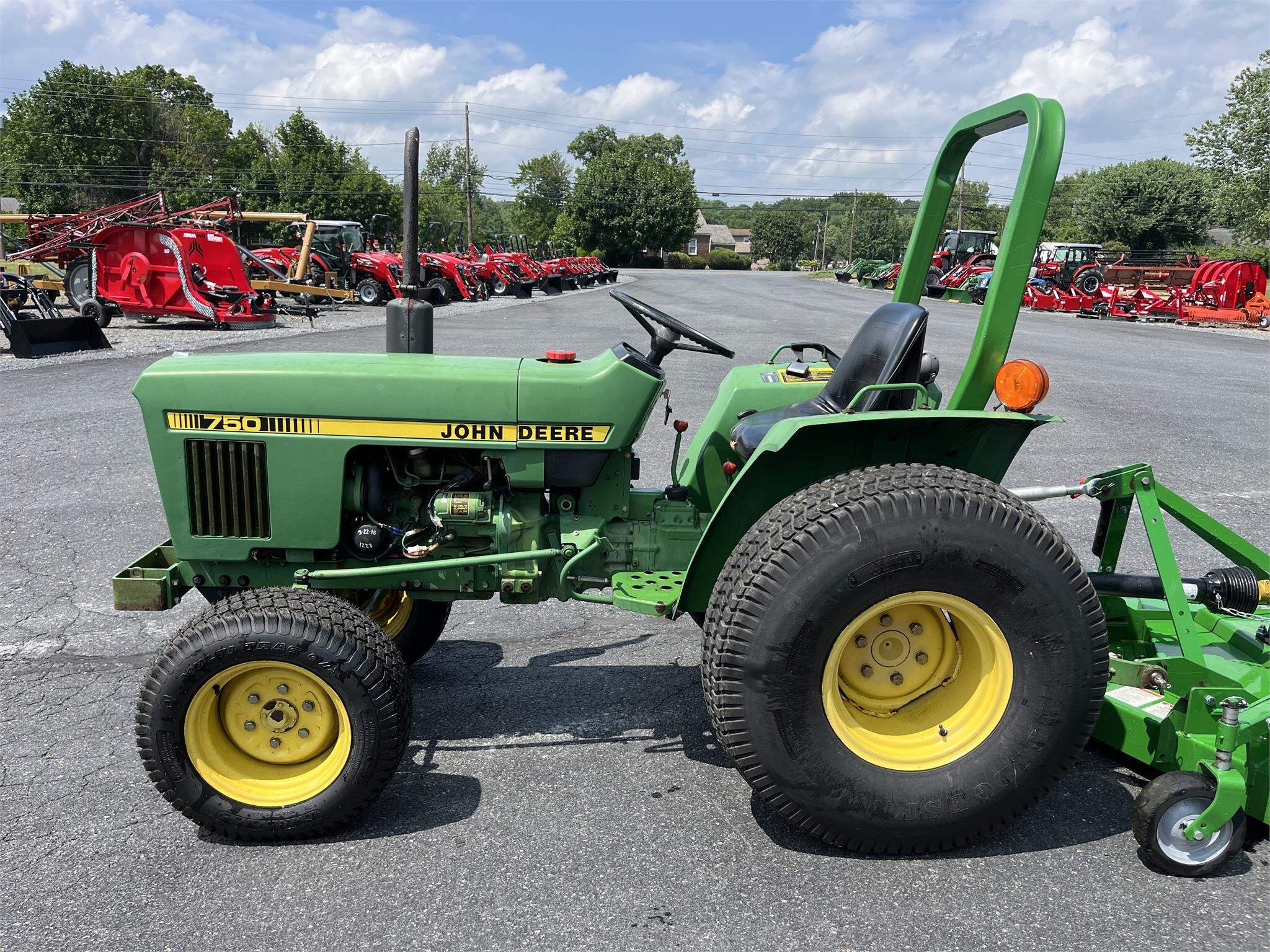

John Deere 750

Name: John Deere 750
Brand: John Deere

John Deere 750 — 50 Compact Series · 20 hp. Reference specifications; pending source verification.

The John Deere 750 is a compact tractor rated at 20 horsepower. It was manufactured from 1981 to 1988. The 750 features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. Its listed weight ranges from 1900 to 2000 pounds, making it suitable for jobs covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Max power

11.4 kW

Weight

1900 to 2000 pounds

Catalogue coverage

Variants represented

Richest spec table

147 rows

Recorded power

20 hp

Transmissions

8-speed gear

Production years

1981-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerYanmarReference

Compact Utility tractorReference

Built in JapanReference

Original price$7,070 (1983)Reference

Original price$10,000 (1989)Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

SteeringmanualReference

SteeringpowerReference

Differential mechanical dry, internal expanding shoe brakesReference

Two-post fixed ROPS.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Engine (gross)14.9 kWReference

Drawbar (tested)11.4 kWReference

Yanmar 3T80Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 85 mmReference

Power (gross)14.9 kWReference

Air cleanerdryReference

Pre-heatingtherostartReference

Compression22.5:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity3.8 LReference

Coolant capacity4.3 LReference

Power at rated engine speed13.8 kWReference

Max power11.4 kWReference

Fuel TypeDieselReference

No of Cylinders3-cylinderReference

Rated engine speed2,400Reference

Bore and stroke3.15x3.35 inchesReference

Compression ratio22.5:1Reference

Cooling systemliquid-cooled inline | 4.5 qtsReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch200mm dry discReference

Oil capacity14.2 LReference

Four gears, plus reverse, in two ranges.Reference

forward and reverse options8 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)13.8 kWReference

PTO (tested)13.8 kWReference

Hydraulic system14.2 LReference

Typeopen centerReference

Capacity14.2 LReference

Pressure140.0 barReference

Valves2Reference

Rear TypeIReference

Controlposition controlReference

Rear PTOtransmissionReference

Clutch200mm over-running dry discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2300Reference

Front PTOindependentReference

Clutchelectro-magneticReference

Power at rated PTO speed14.8 kWReference

Capacities

Fuel23.5 LReference

Dimensions

Wheelbase155 cmReference

Weight1900 to 2000 poundsReference

Front tire4.00-15Reference

Rear tire9.5-24Reference

Weight140 kgReference

Weight294 kgReference

Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

Standard tires (ag)Front: 5-14. Rear: 9.5-24Reference

Lawn/turf front25/8.5-14Reference

Lawn/turf rear13.6-16Reference

Length284 cmReference

Width114 cmReference

2WD Clearance (front axle)38 cmReference

4WD Clearance (front axle)33 cmReference

2WD Front tread88 cmReference

4WD Front tread91 cmReference

Rear tread88/99 cmReference

2WD Shipping861 kgReference

4WD Shipping907 kgReference

Max Drawbar283 kgReference

John Deere 750 attachments

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

750 Serial Number Location

Serial number plate on the rear of the John Deere 750, below the PTO shaft.Reference

750 Serial Numbers

19811000Reference

19823448Reference

19835613Reference

19848457Reference

198513001Reference

198618501Reference

198722601Reference

198826450Reference

Final28161Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps15Reference

Battery CCA370Reference

Battery volts12Reference

Battery GroupBCI 24Reference

Total cold cranking amps370Reference

Attachment overview

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

John Deere 67 loaderReference

John Deere 70 loaderReference

BackhoeReference

Advertised attachments included the model 448 tiller and a 54-inch rotary mower.Reference

60" Mower deck

Typemid-mount John Deere 160Reference

Type3-bladeReference

Cutting width152 cmReference

Overall width184 cmReference

John Deere 7 Backhoe

Backhoe typeJohn Deere 7 BackhoeReference

Transport height175 cmReference

Digging depth228 cmReference

Reach from pivot289 cmReference

Loading height177 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

John Deere 750 Height

2WD Hood115 cmReference

4WD Hood117 cmReference

ROPS190 cmReference

Exhaust195 cmReference

Test results

Diesel 8-speed 2WDOctober 31 - November 10, 1983Link: Nebraska Tractor Test 1504 fileReference

PTO performanceReference

Fuel use4.5 l/hourReference

Fuel use4.9 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull753 kgReference

Gear 5 used for pull test.Reference

Speeds

With 9.5-16 rear tires.Reference

General

Make & ModelYanmarReference

Power

Rated Power20 hpReference

PTO

Rear PTO PowerAvailableReference

Front PTO PowerAvailableReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure2,030 psiReference

Remote Valves2Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length284.5 cmReference

Front axle clearance2WD:15.1 inchesReference

Steering & brakes

Steering typemanual, powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
