Tractor · 1998Unverified

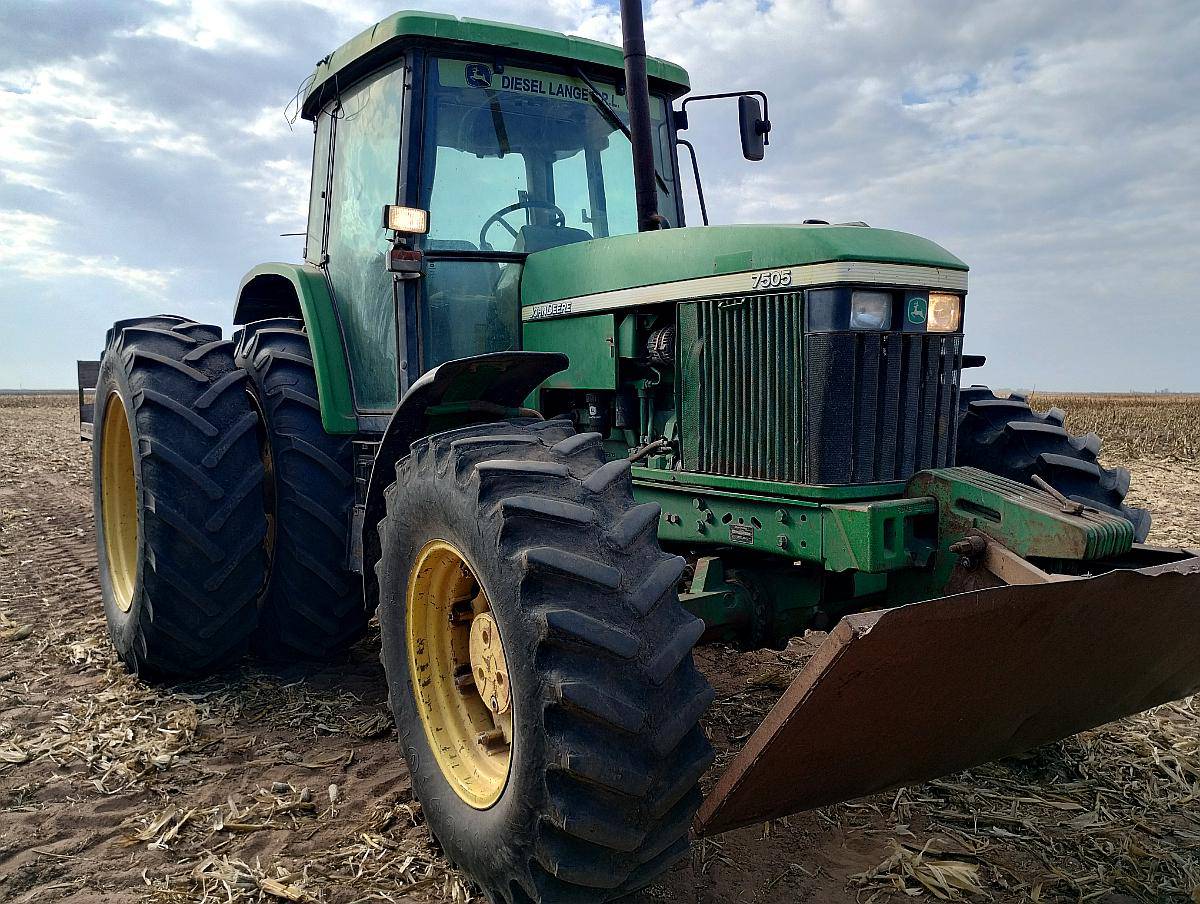

John Deere 7505

Name: John Deere 7505
Brand: John Deere

John Deere 7505 — Utility tractor · 119 hp. Reference specifications; pending source verification.

The John Deere 7505 is a tractor with a rated output of 119 hp, placing it in the middle range of its class in terms of power. Manufactured between 1998 and 2005, this tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives all four wheels via a hydrostatic transmission. The listed weight of the John Deere 7505 ranges from 11660 to 12060 pounds. It is designed for use on areas covering approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

119 hp

Weight

11660 to 12060 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

119 hp

Transmissions

16-speed partial power shift

Production years

1998-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Montenegro, BrazilReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab optional.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine104.4 kWReference

John Deere 6068T Series 350Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power104.4 kWReference

Compression17.8:1Reference

Rated RPM2100Reference

Torque605.0 NmReference

Torque RPM1400Reference

Starter volts12Reference

Coolant capacity19.0 LReference

Oil capacity19.0 LReference

Transmission

16-speed partial power shiftReference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet disc PermaClutch IIReference

Oil capacity64.0 LReference

Oil typeJD Hy-GardReference

Four power shift gears (1-4) in four synchronized ranges (A-D).Reference

PTO & Hydraulics

PTO (claimed)88.7 kWReference

Hydraulic system64.0 LReference

Typeclosed-center flow-compensatedReference

Capacity64.0 LReference

Pressure190.0 barReference

Valves2 to 3Reference

Pump flow66.0 lpmReference

Pump flow100.0 lpmReference

SCV flow60.0 lpmReference

SCV flow96.1 lpmReference

Oil typeJD Hy-GardReference

Rear TypeIIReference

Controlelectronic lower linkReference

Rear lift (at ends)4848 kgReference

Rear lift (at 24"/610mm)2950 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Capacities

Fuel307.0 LReference

Front axle6.7 LReference

Front hubs0.8 LReference

Max capacity8001 kgReference

Dimensions

Wheelbase264 cmReference

Weight11660 to 12060 poundsReference

Front tire18.4-24Reference

Rear tire24.5-32Reference

Standard tires (ag)Front: 18.4-24. Rear: 24.5-32Reference

Optional tires (ag)Front: 16.9-26. Rear: 18.4-38Reference

Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference

Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference

Length469 cmReference

Height284 cmReference

Rack-and-pinion rear axleReference

Front tread159 to 209 cmReference

Rear tread157 to 272 cmReference

Rear tread163 to 272 cmReference

5288 kgReference

Cab5470 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps52 (ROPS)Reference

Charging amps75 (cab)Reference

Battery volts12Reference

Battery AH150Reference

Speeds

With 18.4-38 R1 rear tires. Reverse speeds are 15% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
