Tractor · 1999Unverified

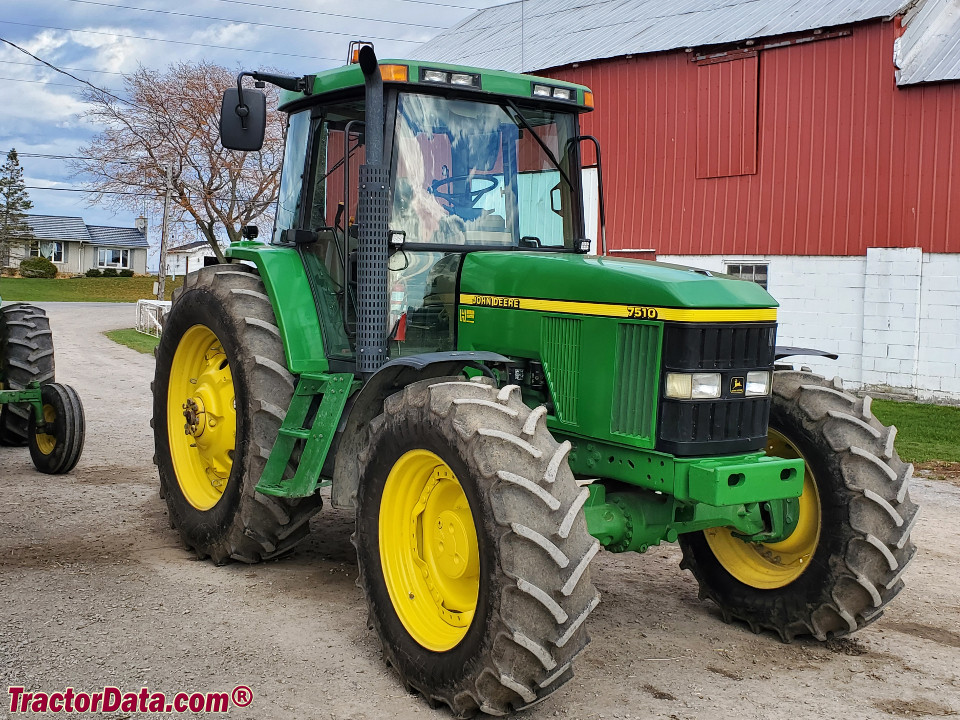

John Deere 7510

John Deere 7510 — Row-Crop tractor · 115 hp. Reference specifications; pending source verification.

The John Deere 7510 is a tractor with an approximate engine power output of 115 hp, falling within the mid-range for its class. This model was manufactured from 1999 to 2002. It features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its operating weight is listed as 11491 to 13280 pounds, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
115 hp
Max power
88.6 kW
Weight
11491 to 13280 pounds

Catalogue coverage

Variants represented
2
Richest spec table
118 rows
Recorded power
115 hp
Transmissions
12-speed fully synchronized
Production years
1999-2002
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
ComfortGard cab standard.Reference

Variants

7510row-cropReference
7510 Hi-Crophigh clearanceReference

Engine

John Deere 6.8L 6-cyl dieselReference
Engine100.7 kWReference
Drawbar (tested)75.5 kWReference
John Deere PowerTech 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power100.7 kWReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2100Reference
Torque535.6 NmReference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity18.9 LReference
Oil capacity18.9 LReference
Max power88.6 kWReference
Power at rated engine speed85.8 kWReference
Max power75.5 kWReference

Transmission

12-speed fully synchronizedReference
16-speed partial power shiftReference
20-speed partial power shiftReference
28-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
2WD Oil capacity56.8 LReference
4WD Oil capacity64.4 LReference
Oil typeJD Hy-GardReference
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.Reference
Gears20 forward and reverseReference
Four power shift speeds (1-4) in four synchronized ranges (A-E). Right- or left-hand power shuttle.Reference
TransmissionJohn Deere PowrQuad CreeperReference
Gears28 forward and reverseReference
2WD Oil capacity60.6 LReference
4WD Oil capacity68.1 LReference
Adds creeper range to the PowrQuad for ranges A-C. Also available on the 20-speed PowrQuad giving 32 speeds forward and reverse.Reference

PTO & Hydraulics

PTO (claimed)85.8 kWReference
PTO (tested)88.6 kWReference
2WD Hydraulic system56.8 LReference
4WD Hydraulic system64.3 LReference
4WD Hydraulic system60.6 LReference
4WD Hydraulic system68.1 LReference
Typeclosed center pressure flow compensated (PFC)Reference
2WD Capacity56.8 LReference
4WD Capacity64.3 LReference
4WD Capacity60.6 LReference
4WD Capacity68.1 LReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow60.6 lpmReference
Pump flow98.4 lpmReference
Rear TypeIIIN/IIReference
2WD Rear lift3356 kgReference
4WD Rear lift3805 kgReference
Front HitchIIIN/IIReference
Front lift3492 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel189.2 LReference

Dimensions

2WD Wheelbase284 cmReference
4WD Wheelbase262 cmReference
Weight11491 to 13280 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
2WD Ag front11.00-16Reference
4WD Ag front13.6R28Reference
Ag rear18.4-38Reference
Length426 cmReference
Width243 cmReference
2WD Clearance (front axle)61 cmReference
4WD Clearance (front axle)53 cmReference
Rear axle80 by 2438 mmReference
Rear axle80 by 2806 mmReference
2WD Shipping5212 kgReference
4WD Shipping5598 kgReference
Operating6023 kgReference
Ballasted7062 kgReference
2WD Steering wheel221 cmReference
4WD Steering wheel220 cmReference

7510 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

7510 Serial Numbers

200030001Reference
200150001Reference
200270001Reference
FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference
Charging amps120Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference

John Deere 7510 Height

2WD Cab283 cmReference
4WD Cab282 cmReference

Test results

Diesel PowrQuad 4WDOctober 23 - November 29, 2000Link: OCED Tractor Test 1786 fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Fuel use25.7 l/hourReference
Drawbar performanceReference
Fuel use25.4 l/hourReference
Max pull7088 kgReference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
