Tractor · 2005Unverified

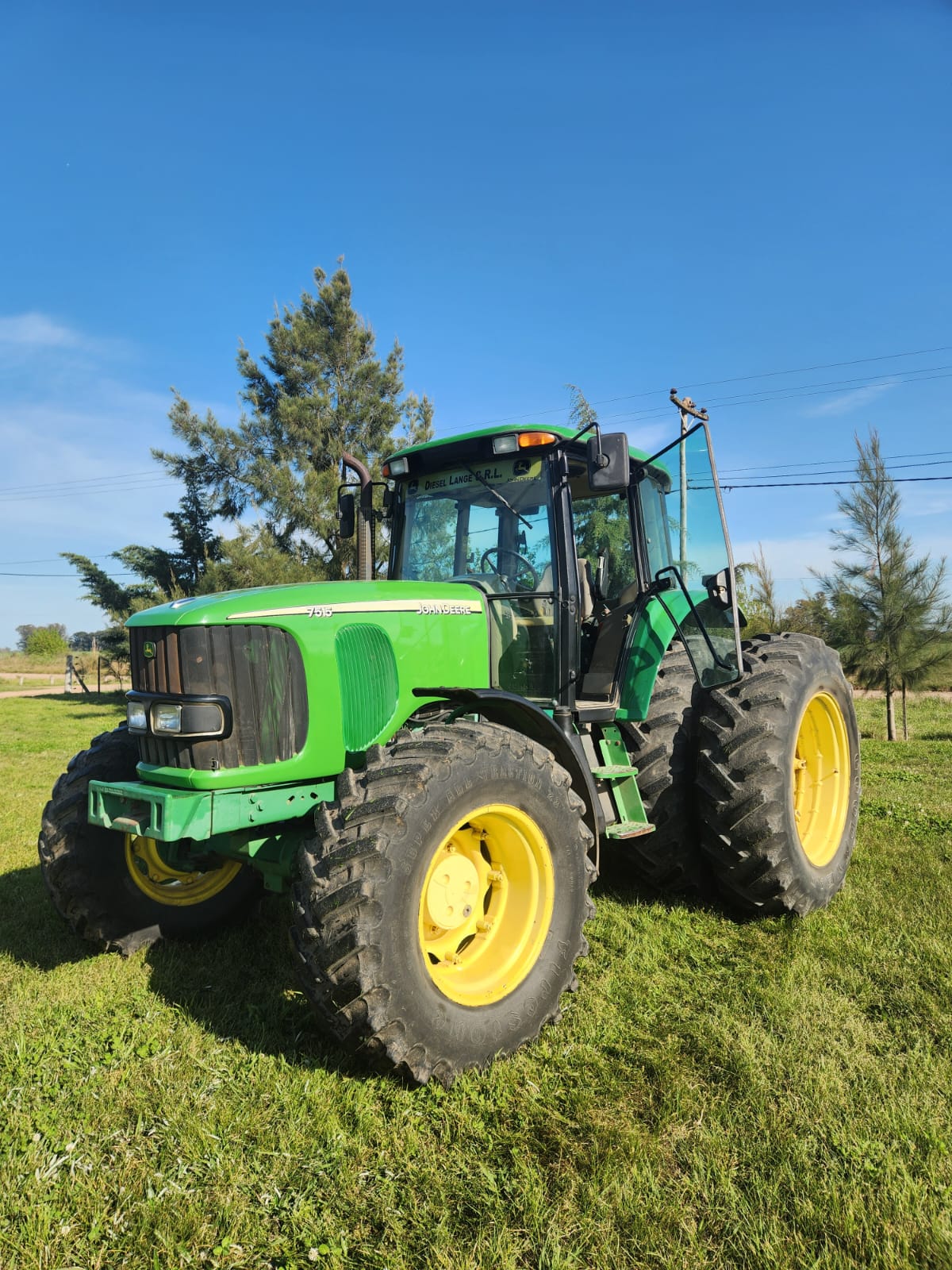

John Deere 7515
John Deere 7515 — Utility tractor · 119 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
119 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab optional.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine104.4 kWReference
John Deere 6068T Series 350Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power104.4 kWReference
Rated RPM2100Reference
Torque610.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Coolant capacity25.0 LReference
Oil capacity19.0 LReference
Transmission
16-speed partial power shiftReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet disc PermaClutch IIReference
Oil capacity64.0 LReference
Oil typeJD Hy-GardReference
Four power shift gears (1-4) in four synchronized ranges (A-D).Reference
PTO & Hydraulics
PTO (claimed)88.7 kWReference
Hydraulic system64.0 LReference
Typeclosed-center load sensingReference
Capacity64.0 LReference
Pressure190.0 barReference
Valves2 to 3Reference
Pump flow99.9 lpmReference
SCV flow96.1 lpmReference
Oil typeJD Hy-GardReference
Rear TypeIIReference
Controlelectronic lower linkReference
Rear lift (at ends)4848 kgReference
Rear lift (at 24"/610mm)2948 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Capacities
Fuel306.6 LReference
Front axle8.2 LReference
Front hubs1.7 LReference
Dimensions
Wheelbase264 cmReference
Front tire18.4-26Reference
Rear tire24.5-32Reference
Standard tires (ag)Front: 18.4-26. Rear: 24.5-32Reference
Optional tires (ag)Front: 16.9-26. Rear: 18.4-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference
Optional tires (ag)Front: 18.4R26. Rear: 650/75R32Reference
Optional tires (ag)Front: 12.4-36. Rear: 320/90R50Reference
Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference
Length496 cmReference
Height284 cmReference
Max weight8001 kgReference
Rack-and-pinion rear axleReference
Front tread161 to 215 cmReference
Rear tread158 to 192 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 18.4-38 R1 rear tires. Reverse speeds are 15% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
