Tractor · 2009Unverified

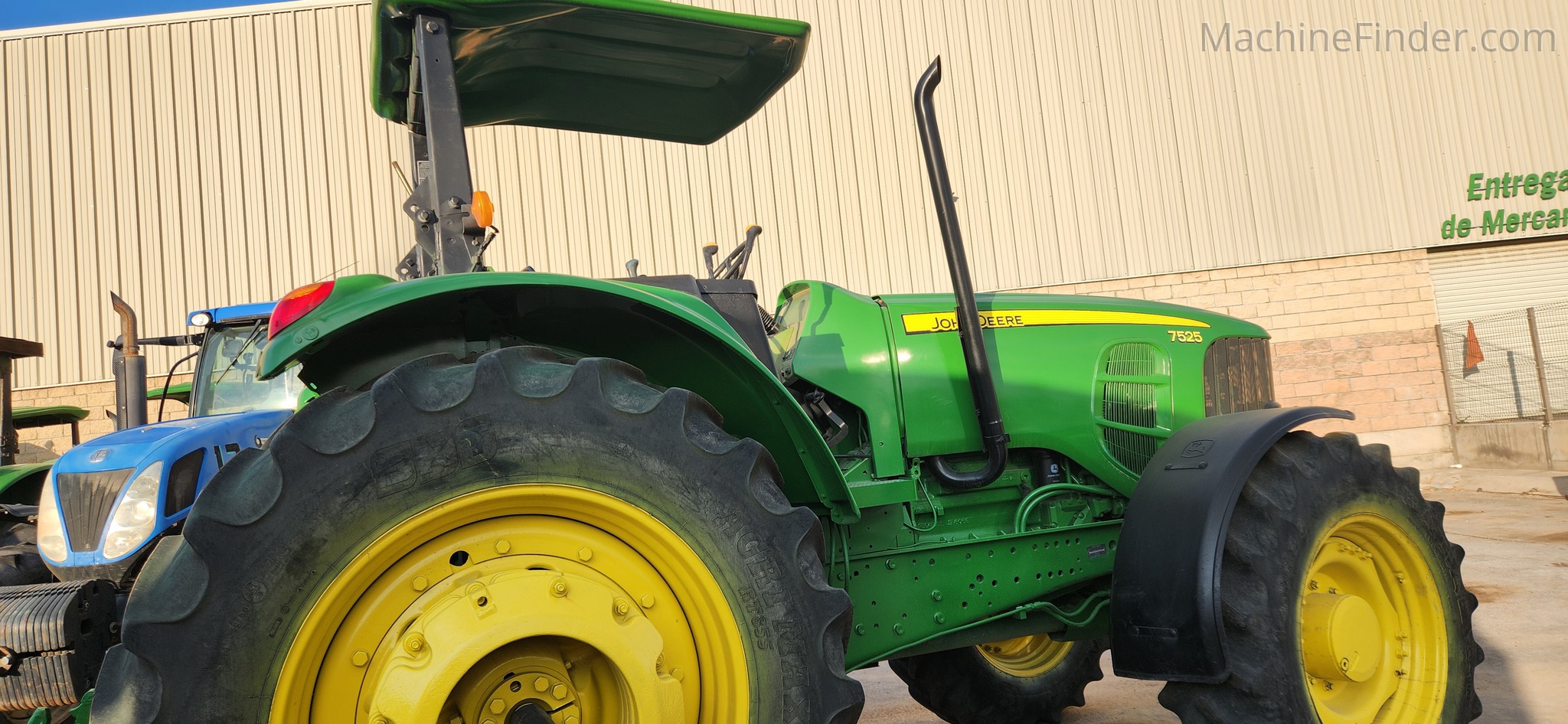

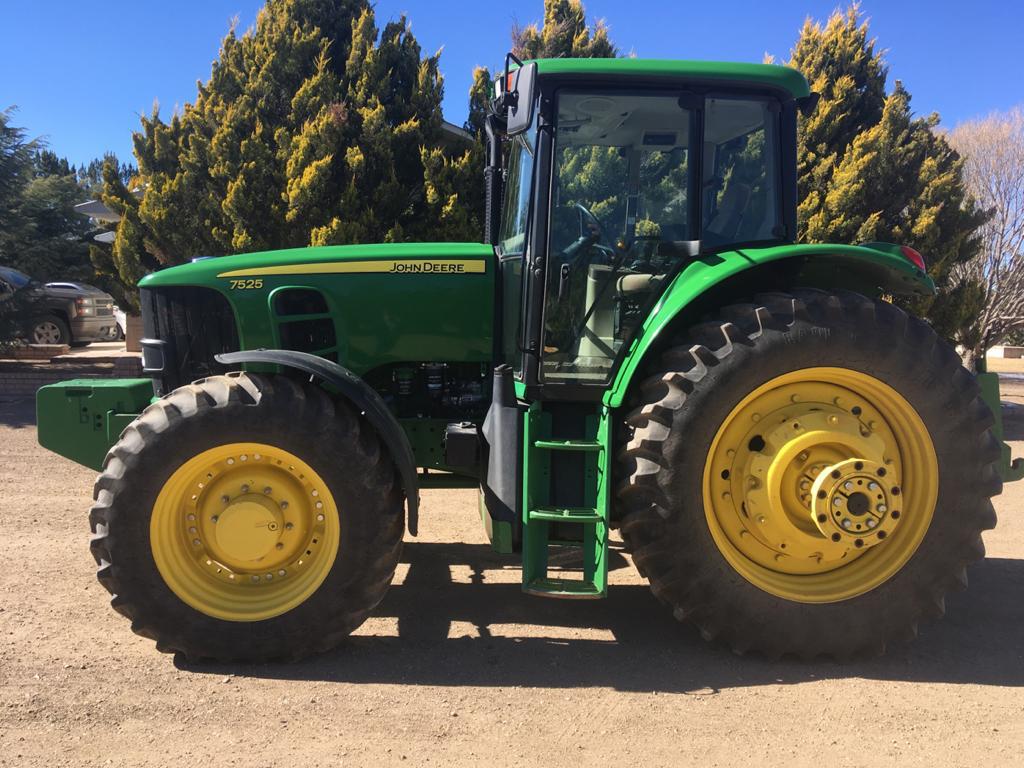

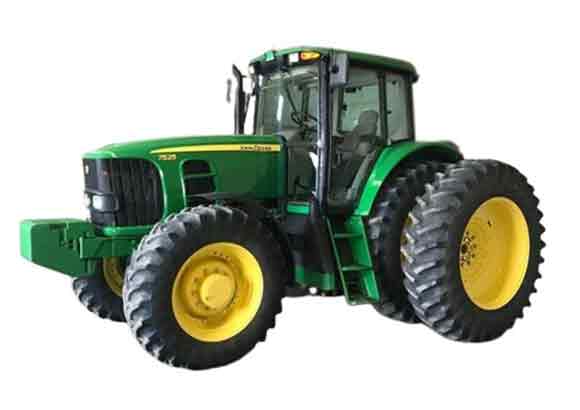

John Deere 7525 High-Crop
John Deere 7525 High-Crop — High-Clearance tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5942 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Saltillo, MexicoReference
Four-wheel driveReference
Power steeringReference
Cab standard.Reference
Variants
7525row-cropReference
7525HChigh-cropReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine115.6 kWReference
John Deere PE6068Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power115.6 kWReference
Compression16.9:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1500-2100Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.5 LReference
Coolant capacity20.0 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
16-speed four-speed power shiftReference
TransmissionPowrQuadReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift speeds (1-4) in four ranges (A-D) with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
Typeclosed center pressure flow compensatedReference
Rear TypeIIIN/IIReference
Rear lift (at 24"/610mm)3805 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1995Reference
Engine RPM1000@1995Reference
Dimensions
Wheelbase276 cmReference
Weight5942 kgReference
Front tire320/90R50Reference
Rear tire320/90R50Reference
Standard tires (ag)Front: 320/90R50. Rear: 320/90R50Reference
Length477 cmReference
Shipping weight5942 kgReference
7525 High-Crop Serial Numbers
Location:Serial number plate on right side of tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Battery volts12Reference
Battery AH154Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
