Tractor · 1986Unverified

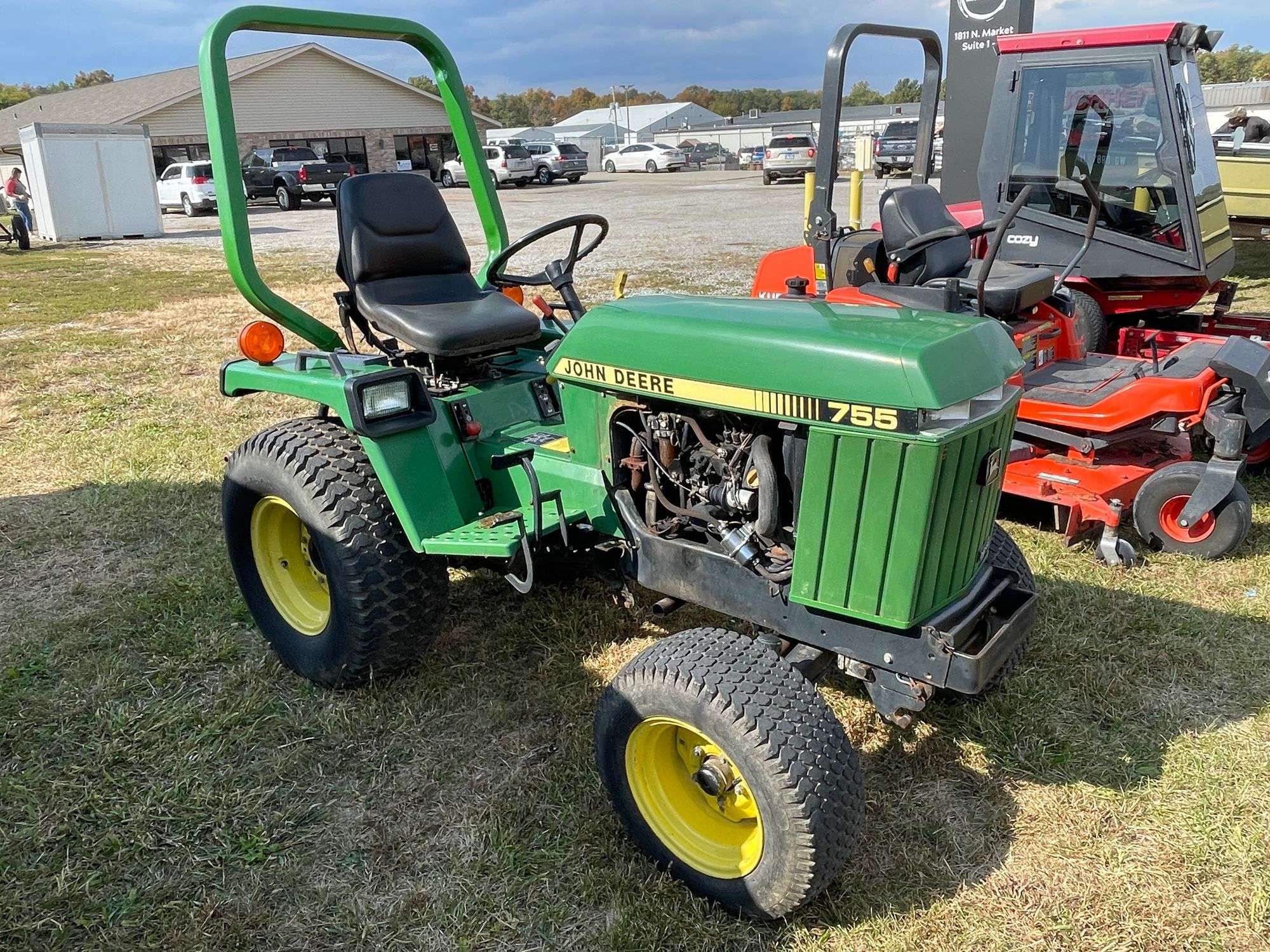

John Deere 755
John Deere 755 — 55 Compact Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1645 to 1780 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
FactoriesHoricon, Wisconsin, USAReference
FactoriesAugusta, Georgia, USAReference
Original price was $15,000 in 1998Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post Roll-Gard ROPS. Optional canopy and high ROPS with extra headroom. Optional weather enclosure.Reference
Variants
755utility tractorReference
756turf mowing tractorReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3TNA72UKReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power14.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Compression22.3:1Reference
Rated RPM3200Reference
Operating RPM1400-3425Reference
Starter volts12Reference
Coolant capacity3.8 LReference
Oil capacity2.7 LReference
Transmission
hydrostaticReference
TransmissionSundstrand Series 17Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity17.0 LReference
Oil typeHy-Gard Low-ViscosityReference
Hydrostatic transmission controlled by two right-side foot pedals. Cruise control is standard.Reference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure141.3 barReference
Rear valves2Reference
Mid valves2Reference
Total flow21.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)356 kgReference
Rear lift (at 24"/610mm)455 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3200Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@3200Reference
Capacities
Fuel16.7 LReference
Front axle2.1 LReference
Dimensions
Wheelbase144 cmReference
Weight1645 to 1780 poundsReference
Front tire4.00x15Reference
2WD Rear tire8.3x16Reference
Weight147 kgReference
Weight356 kgReference
2WD Standard tires (ag)Front: 4.00x15. Rear: 8.3x16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 9.5x16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x12.50-15 (2WD)Reference
Lawn/turf rear31x15.50-15 (2WD)Reference
Lawn/turf rear33x12.50-15 (2/4WD)Reference
Length223 cmReference
Length262 cmReference
Width108 cmReference
Width130 cmReference
Height (hood)131 cmReference
Height (ROPS)190 cmReference
2WD Weight746 kgReference
4WD Weight807 kgReference
2WD Clearance (drawbar)32 cmReference
4WD Clearance (drawbar)25 cmReference
John Deere 755 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
755 Serial Number Location
Serial number plate located below the rear PTO shaft.Reference
755 Serial Numbers
1986M0360001Reference
1987M0420001Reference
1988M0475001Reference
1989M0595001Reference
1990M0010001Reference
1991M0100001Reference
1992LV0755A 100700Reference
1993LV0755A 130000Reference
1994LV0755A 165001Reference
1995LV0755A 165180Reference
1992LV0755B 105700Reference
1993LV0755B 135000Reference
1994LV0755B 170001Reference
1995LV0755B 170059Reference
1992LV0755C 120700Reference
1993LV0755C 150000Reference
1994LV0755C 175001Reference
1995LV0755C 175087Reference
1992LV0755D 125700Reference
1993LV0755D 160000Reference
1994LV0755D 180001Reference
1995LV0755D 180872Reference
1996LV0755E 190001Reference
1997LV0755E 200000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA491Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
John Deere 52 loaderReference
John Deere 70 loaderReference
BackhoeReference
60" Mower deck
Typemid-mount John Deere 2734MReference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Overall width184 cmReference
Cut height3 to 19 cmReference
John Deere 7 Backhoe
Backhoe typeJohn Deere 7 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket force882 kgReference
Dipperstick force496 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
