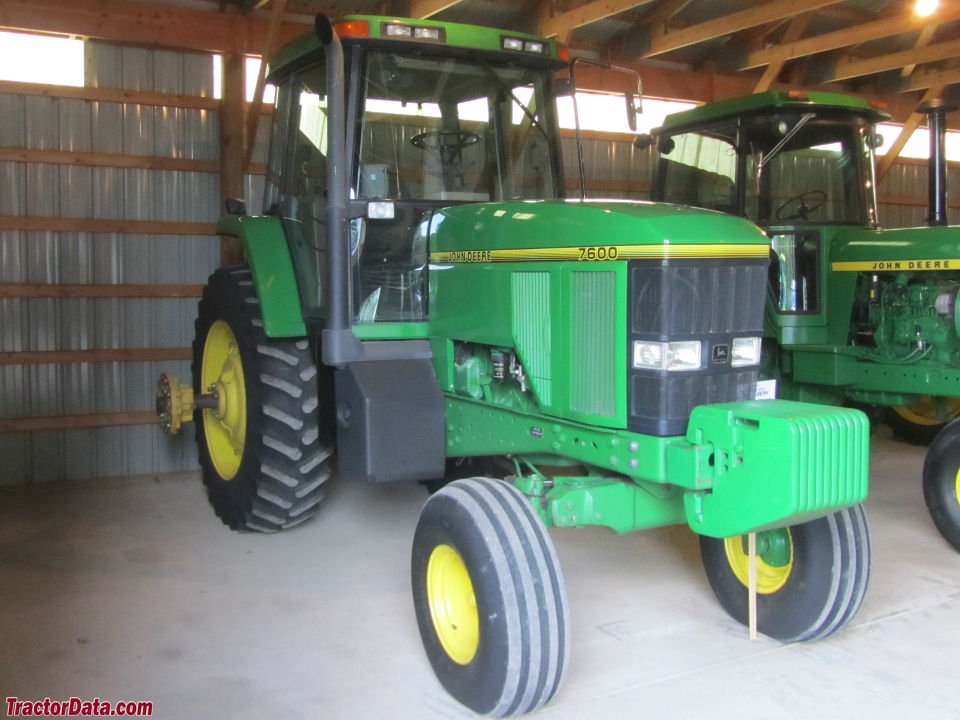

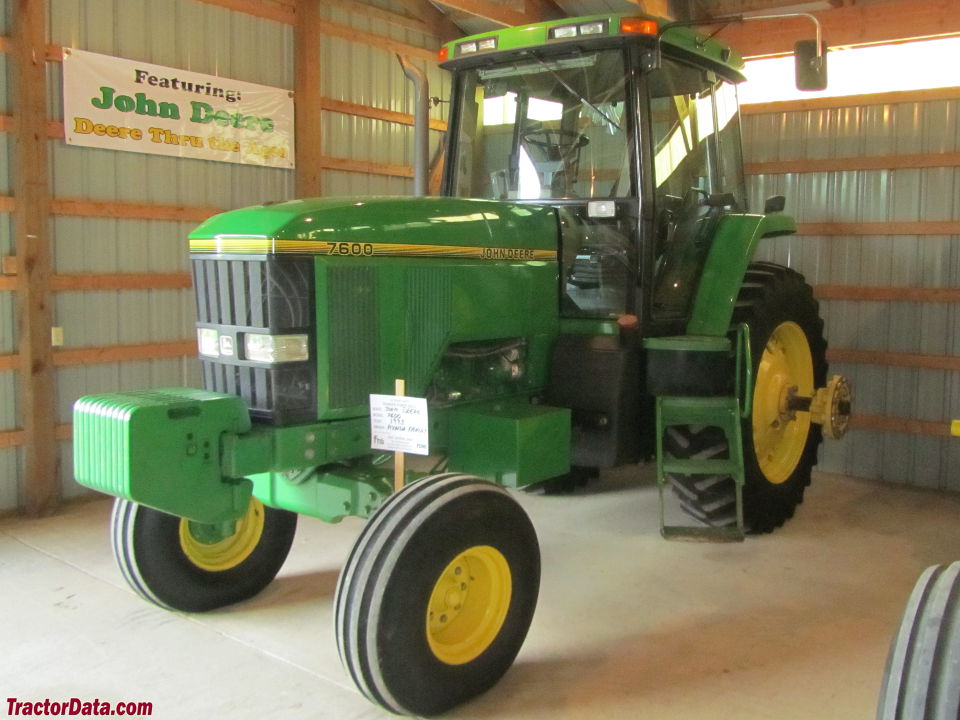

John Deere 7600
John Deere 7600 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
84.3 kW
Weight
13160 to 14950 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $60,500 in 1996Reference

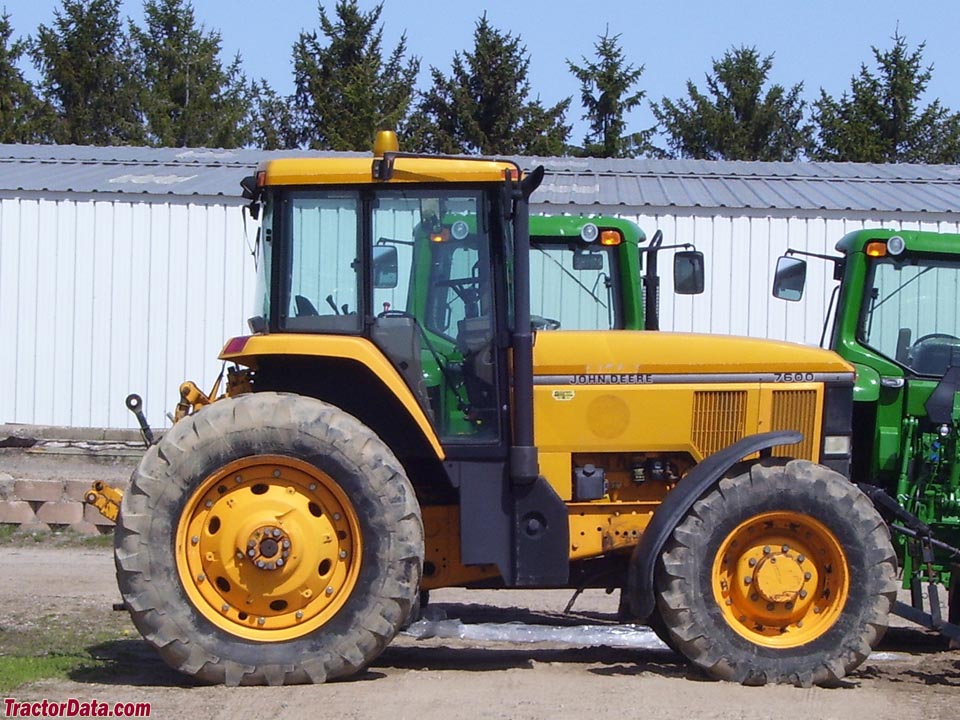

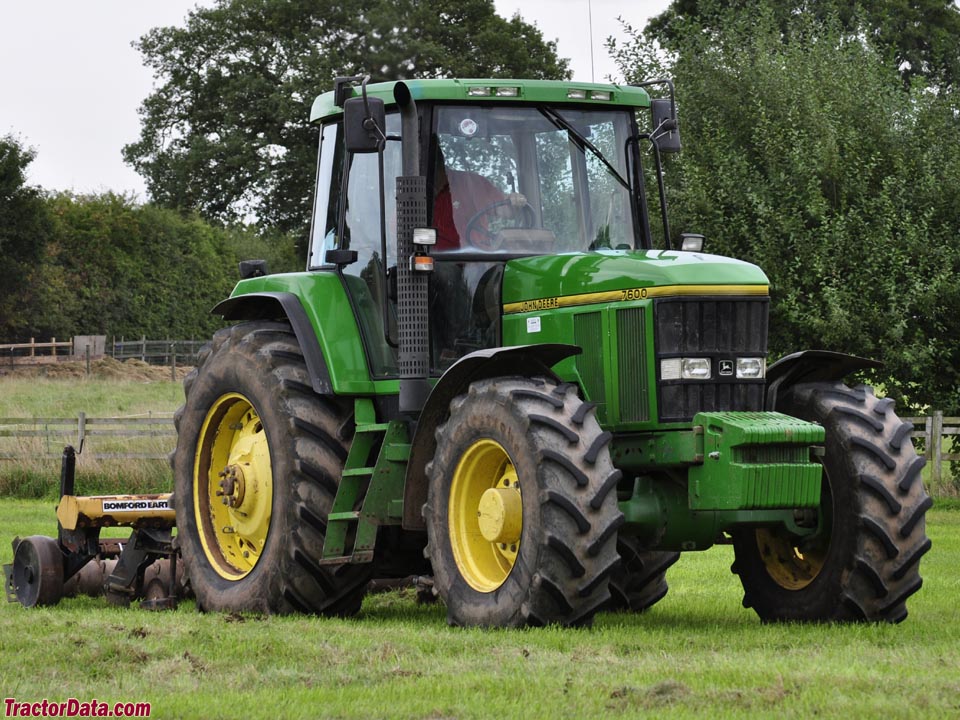

Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
ComfortGard cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (net)96.9 kWReference
Drawbar (tested)75.0 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)96.9 kWReference
Air cleanerdual dry elementReference
Compression17.2:1Reference
Rated RPM2100Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity23.7 LReference
Max power84.3 kWReference
Power at rated engine speed82.7 kWReference
Max power75.0 kWReference
Power at rated engine speed83.2 kWReference
Max power69.7 kWReference
Transmission
16-speed partial power shiftReference
19-speed full power shiftReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Clutchwet discReference
The PowrQuad was the standard transmission on the Deere 7800. It consists of four speeds (1-4) in four ranges (A-D).Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears19 forward and 7 reverseReference
PTO & Hydraulics
PTO (claimed)83.5 kWReference
PTO (tested)84.3 kWReference
Hydraulic system85.2 LReference
Typeclosed center pressure and flow compensatedReference
Capacity85.2 LReference
Pressure200.0 barReference
Valves2 to 3Reference
SCV flow96.1 lpmReference
Rear TypeIIIN/IIReference
Controlposition and draft controlReference
Rear lift3277 kgReference
Rear lift4048 kgReference
Rear lift4558 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel246.0 LReference
Fuel344.4 LReference
Dimensions
2WD Wheelbase290 cmReference
4WD Wheelbase279 cmReference
Weight13160 to 14950 poundsReference
Front tire10.00-16Reference
Rear tire18.4-38 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-38 (2WD)Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-38 (4WD)Reference
Length475 cmReference
Height (cab)300 cmReference
2WD Shipping weight5969 kgReference
4WD Operating weight6781 kgReference
4WD Ground clearance56 cmReference
Rack-and-pinion rear axle91 by 2438 mmReference
Rack-and-pinion rear axle91 by 2806 mmReference
Rack-and-pinion rear axle91 by 2997 mmReference
4WD Front tread152 to 223 cmReference
Rear tread152 to 217 cmReference
Rear tread152 to 254 cmReference
Rear tread152 to 275 cmReference
John Deere 7600 attachments
front-end loaderReference
7600 Serial Number Location
Serial number tag on right side of tractor frame, above the front axle.Reference
7600 Serial Numbers
19931001Reference
19944601Reference
19956195Reference
19968001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Battery volts12Reference
Attachment overview
John Deere 720 loaderReference
John Deere 725 loaderReference
John Deere 740 loaderReference
Test results
OECD 1664: diesel PowrQuad 4WDReference
OECD 1665: diesel power shift 4WDReference
Diesel PowrQuad 4WDApril 21 - May 12, 1993Link: OCED Tractor Test 1664 fileReference
PTO performanceReference
Fuel use24.2 l/hourReference
Drawbar performanceReference
Fuel use24.6 l/hourReference
Max pull6509 kgReference
Diesel power shift 4WDApril 28 - June 19, 1993Link: OCED Tractor Test 1665 fileReference
Gear 9 used for power test.Reference
Max pull6580 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
