Tractor · 1997Unverified

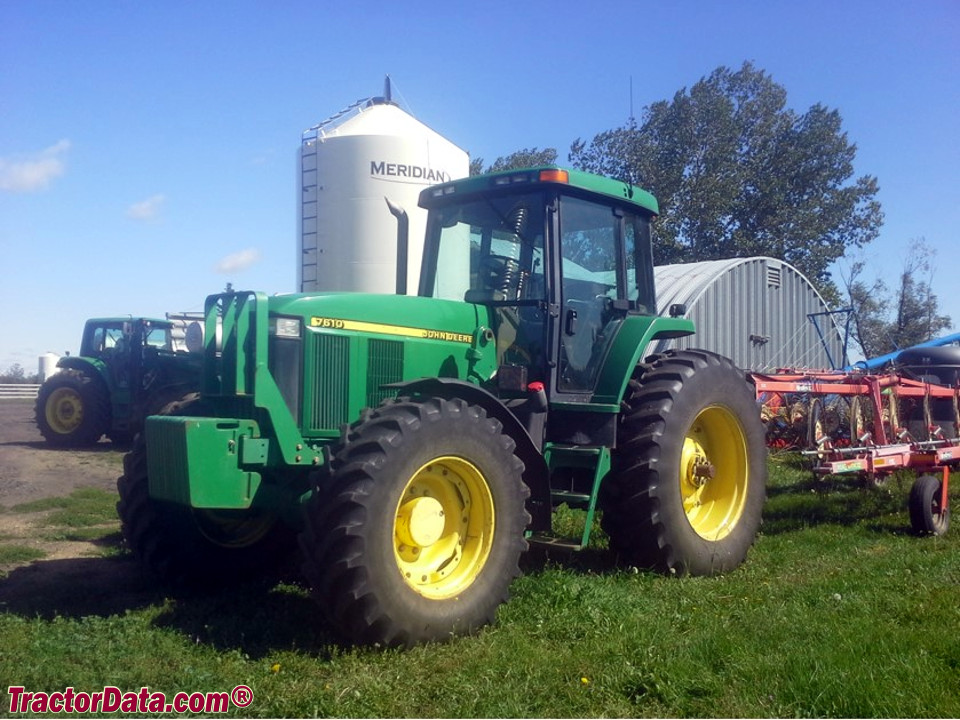

John Deere 7610
John Deere 7610 — Row-Crop tractor · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Max power
88.0 kW
Weight
12352 to 14540 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine104.4 kWReference
Drawbar (tested)80.9 kWReference
John Deere PowerTechReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power104.4 kWReference
Fuel systemmechanical direct injectionReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM800-2325Reference
Torque569.5 NmReference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity23.7 LReference
Oil capacity18.9 LReference
Max power88.0 kWReference
Power at rated engine speed86.5 kWReference
Max power76.9 kWReference
Max power87.4 kWReference
Power at rated engine speed86.5 kWReference
Max power71.8 kWReference
Max power94.6 kWReference
Power at rated engine speed90.0 kWReference
Max power80.9 kWReference
Transmission
16-speed partial power shiftReference
19-speed full power shiftReference
20-speed partial power shiftReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity86.7 LReference
Oil capacity98.0 LReference
Four speeds (1-4) in four ranges (A-D) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears19 forward and 7 reverseReference
Oil capacity90.9 LReference
Oil capacity102.2 LReference
The power shift transmission is operated with a single right-hand shift lever. Transmission can be directly shifted up to gear 11 forward and 7 reverse.Reference
Gears20 forward and reverseReference
Four speeds (1-4) in five ranges (A-E) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)94.6 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves2 to 5Reference
SCV flow98.4 lpmReference
Rear TypeIIIN/IIReference
Rear lift3504 kgReference
Rear lift4048 kgReference
Rear lift4558 kgReference
Front HitchIIIN/IIReference
Front lift3492 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discsReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Capacities
Fuel246.0 LReference
Fuel344.4 LReference
Front axle14.4 LReference
Front hubs1.9 LReference
Dimensions
2WD Wheelbase290 cmReference
4WD Wheelbase279 cmReference
Weight12352 to 14540 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Length439 cmReference
Width297 cmReference
Height279 cmReference
Rear axle91 by 2438 mmReference
Rear axle91 by 2806 mmReference
Rear axle91 by 3012 mmReference
Rear tread152 to 217 cmReference
Rear tread152 to 254 cmReference
Rear tread152 to 275 cmReference
2WD Shipping5602 kgReference
4WD Shipping6004 kgReference
Operating6595 kgReference
Max Drawbar1428 kgReference
Max Drawbar2848 kgReference
7610 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
7610 Serial Numbers
19971001Reference
199810001Reference
199920001Reference
200030001Reference
200150001Reference
200270005Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
OECD 1724: diesel PowrQuad 16-speed 4WDReference
OECD 1725: diesel PowerShift 4WDReference
OECD 1787: diesel PowrQuad 20-speed 4WDReference
Diesel PowrQuad 16-speed 4WDMay 27 - June 18, 1997Link: OCED Tractor Test 1724 fileReference
PTO performanceReference
Fuel use25.7 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Max pull6173 kgReference
Diesel PowerShift 4WDMay 22 - June 18, 1997Link: OCED Tractor Test 1725 fileReference
Fuel use24.6 l/hourReference
Fuel use25.4 l/hourReference
Gear 11 used for power test.Reference
Max pull6565 kgReference
Gear 5 used for pull test.Reference
Diesel PowrQuad 20-speed 4WDOctober 26 - November 7, 2000Link: OCED Tractor Test 1787 fileReference
Fuel use26.5 l/hourReference
Fuel use26.9 l/hourReference
Max pull8045 kgReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
