Tractor · 2007Unverified

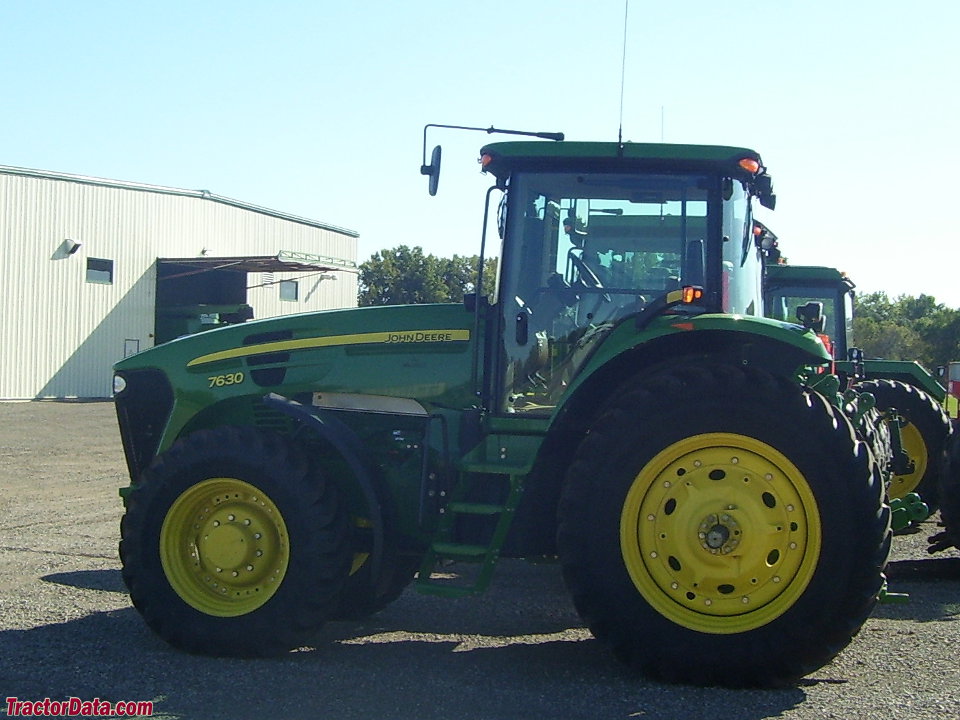

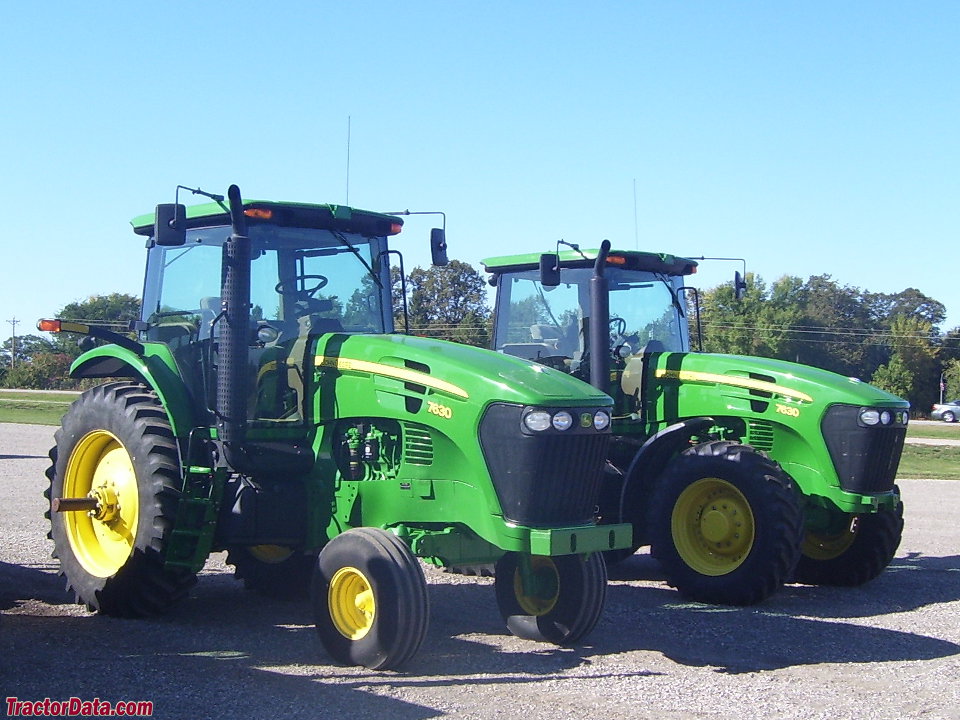

John Deere 7630

Name: John Deere 7630
Brand: John Deere

John Deere 7630 — Row-Crop tractor · 142 hp. Reference specifications; pending source verification.

The John Deere 7630 is a high-powered tractor with a rated output of 142 hp, positioning it among the more powerful machines in its class. Manufactured from 2007 to 2011, this tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. It is equipped with a powershift transmission and four-wheel drive, with a listed weight of 15360 to 17200 pounds. The 7630 is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

142 hp

Max power

120.7 kW

Weight

15360 to 17200 pounds

Catalogue coverage

Variants represented

Richest spec table

132 rows

Recorded power

142 hp

Transmissions

16-speed

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine130.5 kWReference

Drawbar (tested)94.7 kWReference

John DeereReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power130.5 kWReference

Fuel systemhigh-pressure common railReference

Cooling systemviscous fanReference

Air cleanerdual paper elementsReference

Compression17:1Reference

Rated RPM2100Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity26.0 LReference

Max power120.7 kWReference

Power at rated engine speed105.6 kWReference

Max power94.7 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Bore and stroke4.19x5.00 inchesReference

Compression ratio17:1Reference

Transmission

16-speedReference

20-speedReference

TransmissionPowrQuad PLUSReference

Gears16 forward and reverseReference

Four push-button power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.Reference

TransmissionAutoQuad PLUSReference

Gears20 forward and reverseReference

Four push-button power shift gears (1-4) in five synchronized ranges (A-D) with left-hand power shuttle. Available in 40 kph and 50 kph versions.Reference

TransmissionInfinitely Variable Transmission (IVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)104.4 kWReference

PTO (tested)120.7 kWReference

Hydraulic system107.9 LReference

Typeclosed center load-sensingReference

Capacity107.9 LReference

Pressure200.0 barReference

Valves2 to 7Reference

SCV flow113.6 lpmReference

Total flow121.1 lpmReference

Total flow170.3 lpmReference

Rear TypeIIIReference

Rear lift4558 kgReference

Rear lift6350 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540E@1750Reference

Engine RPM540@1950Reference

Engine RPM1000E@1750Reference

Engine RPM1000@1950Reference

Power at rated PTO speed119.1 kWReference

Capacities

Fuel389.9 LReference

Fuel355.8 LReference

Fuel tank389.9 LReference

Crankcase oil volume27.5 qtsReference

Dimensions

2WD Wheelbase296 cmReference

4WD Wheelbase286 cmReference

Weight15360 to 17200 poundsReference

Front tire11.00-16Reference

2WD Rear tire480/80R42Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 480/80R42Reference

4WD Standard tires (ag)Front: 420/85R28. Rear: 480/80R42Reference

Length571 cmReference

Width243 cmReference

Height (cab)307 cmReference

2WD Clearance (front axle)66 cmReference

4WD Clearance (front axle)64 cmReference

Clearance (rear axle)78 cmReference

Clearance (drawbar)45 cmReference

Bar rear axle100 by 2438 mmReference

Bar rear axle100 by 2801 mmReference

Bar rear axle100 by 3009 mmReference

2WD Shipping6967 kgReference

4WD Shipping7770 kgReference

Operating7801 kgReference

7630 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925 CCAReference

Test results

Diesel AutoQuad Plus 4WDMarch 22 - April 20, 2007Link: OCED Tractor Test 560 fileReference

PTO performanceReference

Fuel use33.7 l/hourReference

Fuel use31.4 l/hourReference

Fuel use35.6 l/hourReference

Drawbar performanceReference

Fuel use31.8 l/hourReference

Speeds

With group 47 rear tires. Reverse speeds are 4% faster than forward.Reference

General

Make & ModelJohn DeereReference

Rear Axle TypeBarReference

Country of manufacturerUSAReference

PTO

PTO Power140 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000E@1,750 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)45 gpmReference

Hydraulics TypeClosed Center Load-SensingReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 7 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity6,350.3 kgReference

Dimensions & weight

Wheelbase296.7 cmReference

Height Over Cab307.1 cmReference

Overall Length571.5 cmReference

Overall Width243.8 cmReference

Front axle clearance66 cmReference

Drawbar clearance45.1 cmReference

Overall weight7,770.5 kgReference

Wheels & tyres

Rear Wheel Type480/80R42 (2 WD) | 480/80R42 (4WD)Reference

Front Wheel Type11.00-16.(2WD) | 420/85R28 (4WD)Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
