Tractor · 1997Unverified

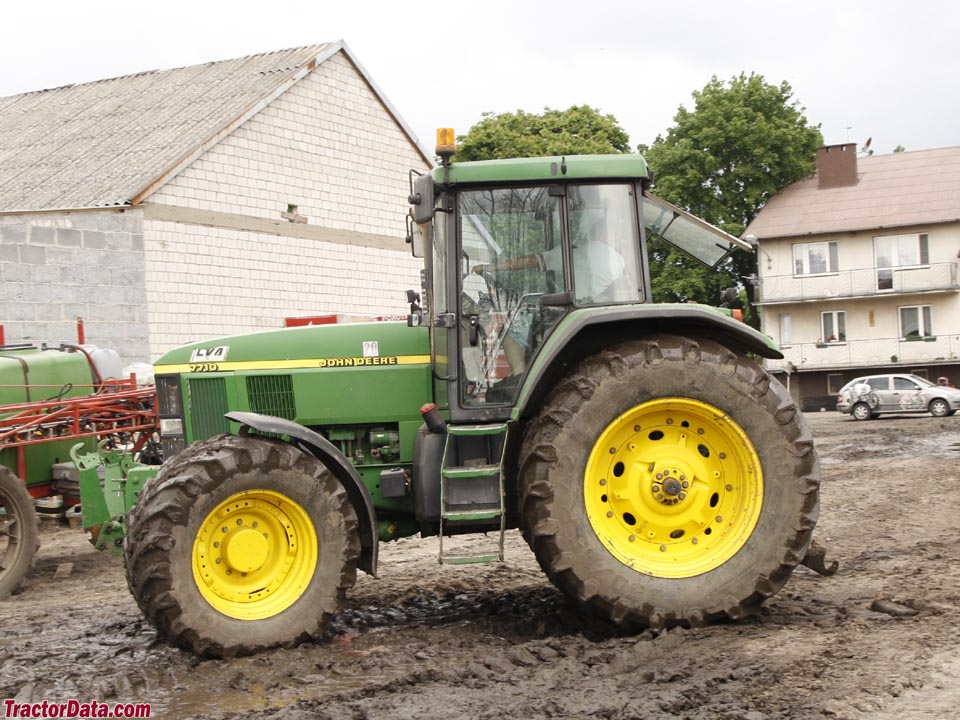

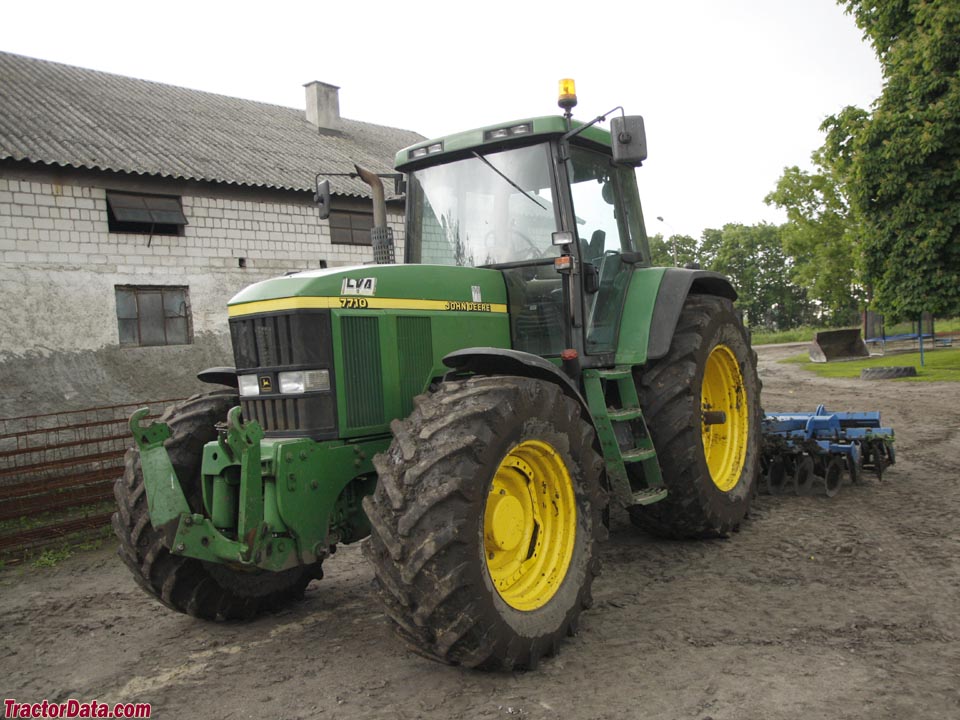

John Deere 7710

Name: John Deere 7710
Brand: John Deere

John Deere 7710 — Row-Crop tractor · 131 hp. Reference specifications; pending source verification.

The John Deere 7710 is a tractor model with a rated power of 131 hp, placing it at the powerful end of its class. Produced from 1997 to 2003, the 7710 is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine. It features four-wheel drive with a powershift transmission and has a listed operating weight of 12352 to 15070 pounds. This model is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

131 hp

Max power

112.9 kW

Weight

12352 to 15070 pounds

Catalogue coverage

Variants represented

Richest spec table

134 rows

Recorded power

131 hp

Transmissions

16-speed partial power shift

Production years

1997-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

John Deere 8.1L 6-cyl dieselReference

Engine115.6 kWReference

Drawbar (tested)92.4 kWReference

John Deere PowerTechReference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.1 LReference

Bore/Stroke116 x 129 mmReference

Power115.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Compression16.5:1Reference

Rated RPM2100Reference

Torque707.8 NmReference

Starter volts12Reference

Coolant capacity26.0 LReference

Oil capacity23.7 LReference

Max power112.9 kWReference

Power at rated engine speed97.5 kWReference

Max power88.2 kWReference

Max power109.1 kWReference

Power at rated engine speed97.6 kWReference

Max power83.0 kWReference

Max power112.6 kWReference

Power at rated engine speed102.8 kWReference

Max power92.4 kWReference

Transmission

16-speed partial power shiftReference

19-speed full power shiftReference

Infinitely Variable Transmission (IVT)Reference

20-speed partial power shiftReference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Oil capacity86.7 LReference

Oil capacity98.0 LReference

Four speeds (1-4) in four ranges (A-D) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. Also available as 20-speed with five ranges.Reference

TransmissionJohn Deere PowerShiftReference

Typefull power shiftReference

Gears19 forward and 7 reverseReference

Oil capacity90.9 LReference

Oil capacity102.2 LReference

The power shift transmission is operated with a single right-hand shift lever. Transmission can be directly shifted up to gear 11 forward and 7 reverse.Reference

TransmissionAutoPowrReference

TypeInfinitely Variable Transmission (IVT)Reference

Gearsinfinite forward and reverseReference

The AutoPowr IVT became available in 2002.Reference

TransmissionJohn Deere AutoQuadReference

Gears20 forward and reverseReference

Four speeds (1-4) in five ranges (A-E) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. AutoQuad uses push-button gear shifting on the range shift lever. Auto mode allows for automatic gear shifting to match load.Reference

PTO & Hydraulics

PTO (claimed)100.7 kWReference

PTO (tested)112.9 kWReference

Typeclosed center pressure flow compensated (PFC)Reference

Pressure200.0 barReference

Valves2 to 5Reference

SCV flow98.4 lpmReference

Rear TypeIIIN/IIReference

Rear lift4048 kgReference

Rear lift4558 kgReference

Front HitchIIIN/IIReference

Front lift3492 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discsReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2100Reference

Engine RPM1000@2100Reference

Capacities

Fuel270.6 LReference

Fuel344.4 LReference

Front axle14.4 LReference

Front hubs1.9 LReference

Dimensions

2WD Wheelbase290 cmReference

4WD Wheelbase279 cmReference

Weight12352 to 15070 poundsReference

Front tire11.00-16Reference

2WD Rear tire18.4-38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference

4WD Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference

Length439 cmReference

Width279 cmReference

Height297 cmReference

Rear axle91 by 2438 mmReference

Rear axle91 by 2806 mmReference

Rear axle91 by 3012 mmReference

Rear tread152 to 217 cmReference

Rear tread152 to 254 cmReference

Rear tread152 to 275 cmReference

2WD Shipping5602 kgReference

4WD Shipping6414 kgReference

Operating6835 kgReference

Max Drawbar1428 kgReference

Max Drawbar2848 kgReference

7710 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

7710 Serial Numbers

19971001Reference

199810001Reference

199920001Reference

200030001Reference

200150001Reference

200270001Reference

200380001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps140Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Test results

OECD 1726: diesel PowrQuad 16-speed 4WDReference

OECD 1727: diesel PowerShift 4WDReference

OECD 1788: diesel PowrQuad 20-speed 4WDReference

Diesel PowrQuad 16-speed 4WDMay 13 - June 19, 1997Link: OCED Tractor Test 1726 fileReference

PTO performanceReference

Fuel use31.8 l/hourReference

Fuel use30.7 l/hourReference

Drawbar performanceReference

Max pull8460 kgReference

Diesel PowerShift 4WDMay 15 - June 18, 1997Link: OCED Tractor Test 1727 fileReference

Fuel use30.3 l/hourReference

Fuel use29.9 l/hourReference

Gear 9 used for power test.Reference

Max pull8522 kgReference

Gear 4 used for pull test.Reference

Diesel PowrQuad 20-speed 4WDOctober 31 - November 29, 2000Link: OCED Tractor Test 1788 fileReference

Fuel use31.0 l/hourReference

Max pull8929 kgReference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
