Tractor · 2007Unverified

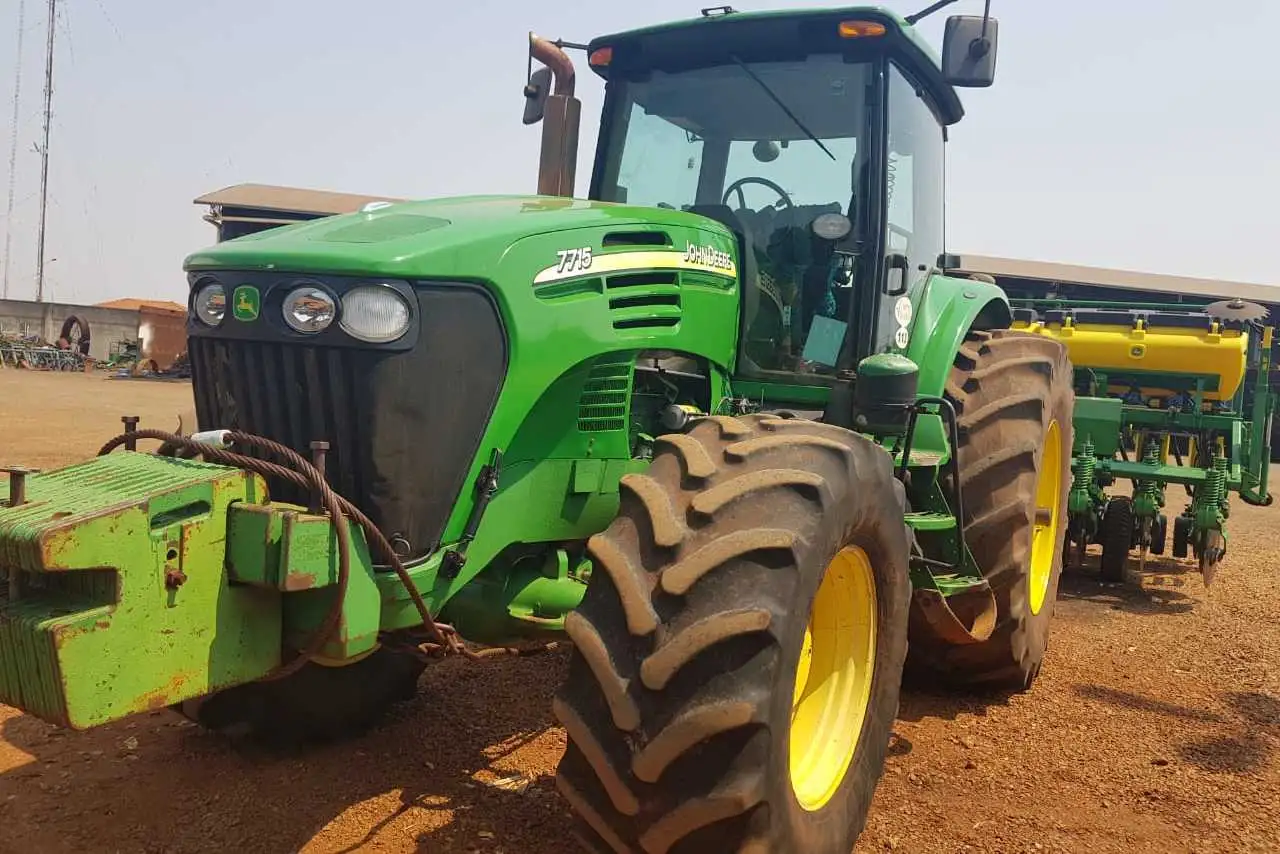

John Deere 7715
John Deere 7715 — Row-Crop tractor · 151 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
151 hp
Weight
8101 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine135.7 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power135.7 kWReference
Fuel systemDE10 electronic rotary injectionReference
Air cleanerdry with pre-cleanerReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM875-2200Reference
Torque826.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity29.2 LReference
Oil capacity26.0 LReference
Oil change250 hReference
Transmission
16-speed partial power shiftReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Oil capacity107.9 LReference
Four gears (1-4) in four ranges (A-D) with left-hand power shuttle. Push-button power shifting between gears, synchronized range shifting using the clutch.Reference
PTO & Hydraulics
PTO (claimed)112.6 kWReference
Hydraulic system107.9 LReference
Typeclosed center load sensingReference
Capacity107.9 LReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow121.1 lpmReference
SCV flow113.9 lpmReference
Rear Type3/3NReference
Rear lift (at 24"/610mm)4599 kgReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@1950Reference
Engine RPM1000@1950Reference
Capacities
Fuel391.7 LReference
Front hubs1.9 LReference
Front diff.14.4 LReference
Front diff.22.4 LReference
Dimensions
Wheelbase286 cmReference
Weight8101 kgReference
Front tire16.9-30Reference
Rear tire20.8-42Reference
Standard tires (ag)Front: 16.9-30. Rear: 20.8-42Reference
Optional tires (ag)Front: 16.9-30. Rear: 20.8R42Reference
Optional tires (ag)Front: 600/65R28. Rear: 710/70R38RReference
Length539 cmReference
Length570 cmReference
Width243 cmReference
Width280 cmReference
Height (cab)313 cmReference
Ballasted weight9902 kgReference
Clearance (drawbar)51 cmReference
7715 Serial Numbers
Location:Right-front of engineReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA750Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
