Tractor · 2007Unverified

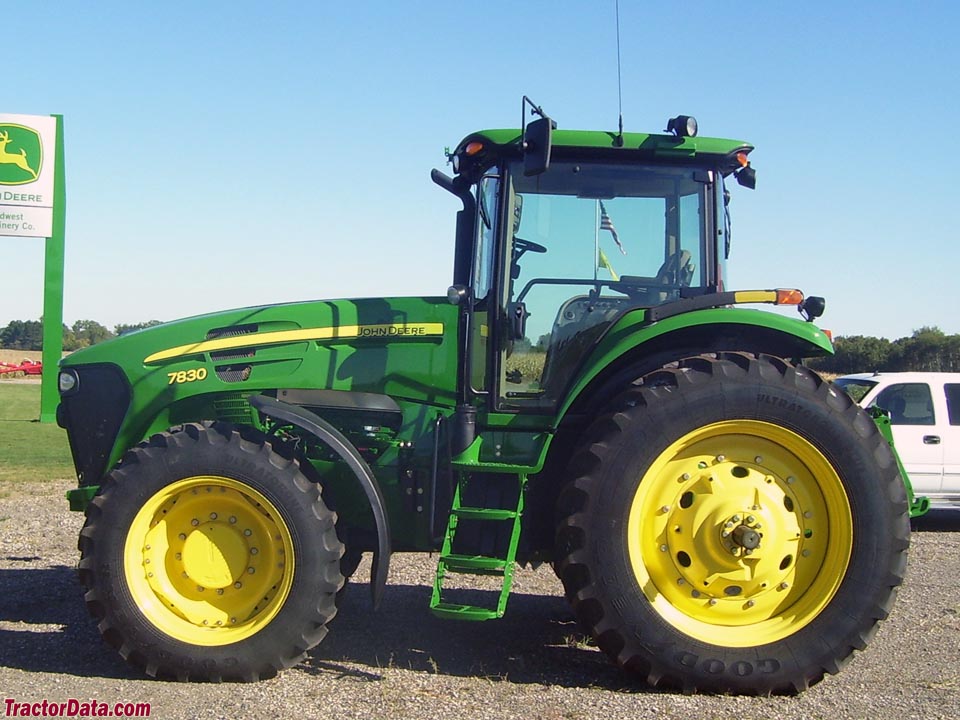

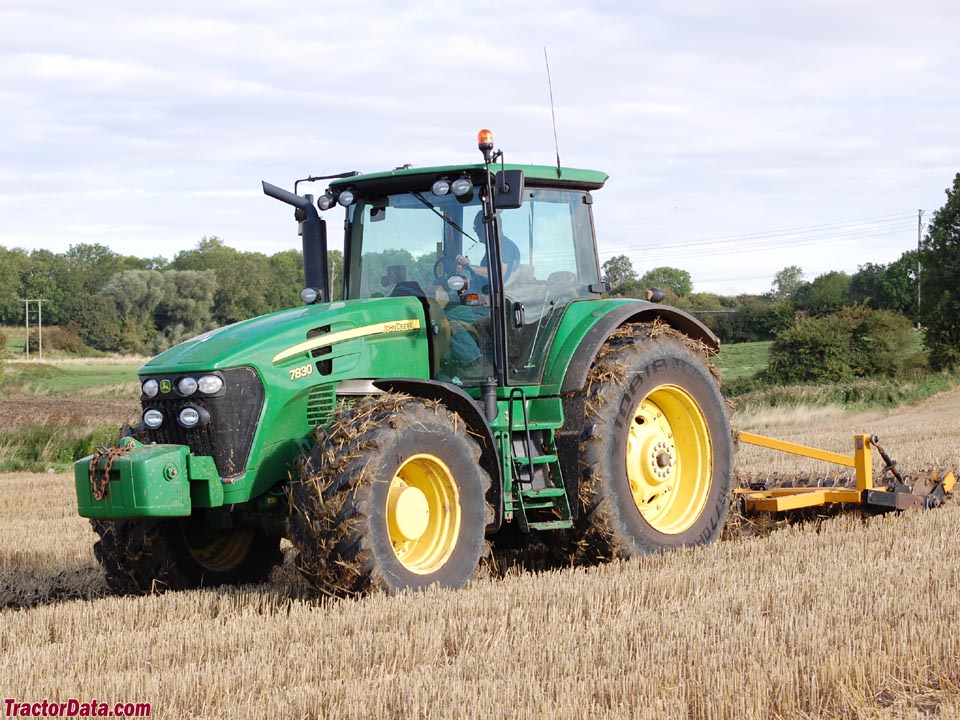

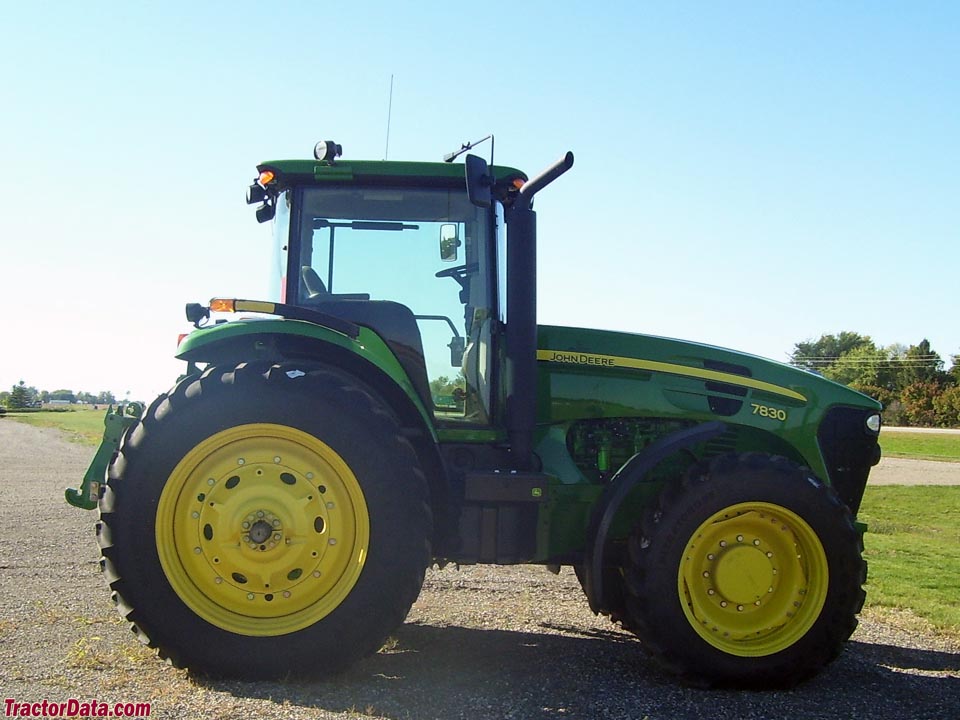

John Deere 7830
John Deere 7830 — Row-Crop tractor · 167 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
167 hp
Max power
141.0 kW
Weight
8042 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine152.9 kWReference
Drawbar (tested)110.7 kWReference
John DeereReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power152.9 kWReference
Fuel systemhigh-pressure common railReference
Cooling systemviscous fanReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2100Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity26.0 LReference
Max power141.0 kWReference
Power at rated engine speed124.4 kWReference
Max power110.7 kWReference
Transmission
16-speedReference
20-speedReference
TransmissionPowrQuad PLUSReference
Gears16 forward and reverseReference
Four push-button power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.Reference
TransmissionAutoQuad PLUSReference
Gears20 forward and reverseReference
Four push-button power shift gears (1-4) in five synchronized ranges (A-D) with left-hand power shuttle. Available in 40 kph and 50 kph versions.Reference
TransmissionInfinitely Variable Transmission (IVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)123.0 kWReference
PTO (tested)141.0 kWReference
Hydraulic system107.9 LReference
Typeclosed center load-sensingReference
Capacity107.9 LReference
Pressure200.0 barReference
Valves2 to 7Reference
SCV flow113.6 lpmReference
Total flow121.1 lpmReference
Total flow170.3 lpmReference
Rear TypeIIIReference
Rear lift4558 kgReference
Rear lift6350 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1950Reference
Engine RPM1000@1950Reference
Power at rated PTO speed136.8 kWReference
Capacities
Fuel389.9 LReference
Fuel355.8 LReference
Dimensions
Wheelbase286 cmReference
Weight8042 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length571 cmReference
Width243 cmReference
Height (cab)310 cmReference
Shipping weight8042 kgReference
Clearance (front axle)69 cmReference
Clearance (rear axle)82 cmReference
Clearance (drawbar)46 cmReference
Bar rear axle100 by 2438 mmReference
Bar rear axle100 by 2801 mmReference
Bar rear axle100 by 3009 mmReference
7830 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel 20 speed 4WDMarch 27 - April 20, 2007Link: OCED Tractor Test 562 fileReference
PTO performanceReference
Fuel use39.7 l/hourReference
Fuel use36.3 l/hourReference
Fuel use39.0 l/hourReference
Drawbar performanceReference
Fuel use36.7 l/hourReference
Speeds
With group 47 rear tires. Reverse speeds are 4% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
