Tractor · 2000Unverified

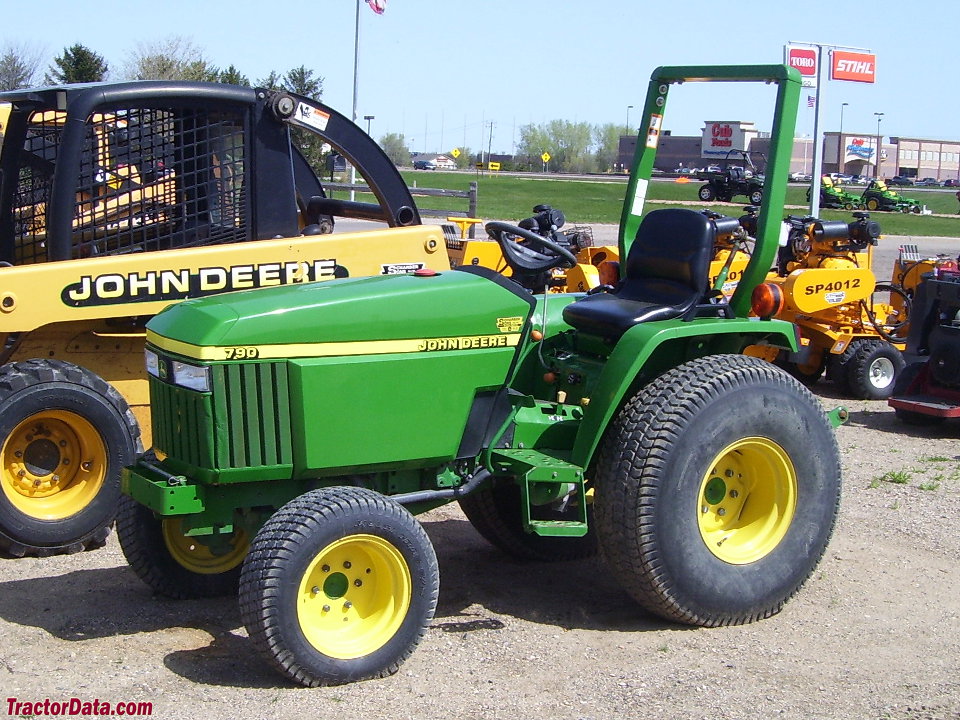

John Deere 790
John Deere 790 — Model year 2000-20022003-2007 · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1930 to 2105 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
2WD SteeringmanualReference
4WD Steeringhydrostatic powerReference
Independent dry shoe brakesReference
ROPSReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine (gross)22.4 kWReference
Yanmar 3TNE84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
The 91 cubic inch engine was used through serial number 592445.Reference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power (gross)22.4 kWReference
Air cleanerdryReference
Compression18:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity4.0 LReference
Transmission
8-speed unsynchronizedReference
TypeunsynchronizedReference
Gears8 forward and 2 reverseReference
Oil capacity15.1 LReference
Oil typeLow Viscosity HY-GardReference
Transmission operated with gear shift lever, range shift lever, and clutch. Gear shift lever selects one of four gears or reverse. Range shift lever selects high or low range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Hydraulic system15.1 LReference
Typeopen centerReference
Capacity15.1 LReference
Pressure141.3 barReference
Pump flow20.4 lpmReference
Steering flow15.9 lpmReference
Steering press.141.3 barReference
Rear TypeIReference
Rear lift (at 24"/610mm)369 kgReference
Rear PTOtransmissionReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540Reference
Mid PTO Type2100Reference
Capacities
Fuel23.8 LReference
Front diff.2.2 LReference
Dimensions
Wheelbase153 cmReference
Weight1930 to 2105 poundsReference
Front tire6.00-12Reference
Rear tire12.4-16Reference
Weight147 kgReference
Weight356 kgReference
Ag front6.00-12 (early)Reference
2WD Ag front5.00-15Reference
4WD Ag front7.00-14Reference
Ag rear12.4-16 (early)Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Industrial front25x8.50-14Reference
Industrial rear15.0-19.6Reference
Length223 cmReference
Length281 cmReference
Height (hood)130 cmReference
Height (ROPS)208 cmReference
2WD Weight875 kgReference
4WD Weight954 kgReference
John Deere 790 attachments
60" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
790 Serial Number Location
Serial number plate on the rear of the tractor.Reference
790 Serial Numbers
1999LV0790G190001Reference
2000LV0790G390001Reference
2001LV0790G490001Reference
2002LV0790G570001Reference
2003LV0790G592446Reference
2004LV0790G790001Reference
2005LV0790G890001Reference
2006LV0790G990001Reference
2007LV0790S190001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery CCA500Reference
Battery volts12Reference
Battery Group45Reference
Attachment overview
60" mid-mount mower deckReference
BladeReference
John Deere 70 loaderReference
John Deere 419 loaderReference
BackhoeReference
60" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Overall width184 cmReference
Cut height2 to 22 cmReference
John Deere 7 Backhoe
Backhoe typeJohn Deere 7 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket force882 kgReference
Dipperstick force496 kgReference
Speeds
With 11.2-24 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
