Tractor · 2007Unverified

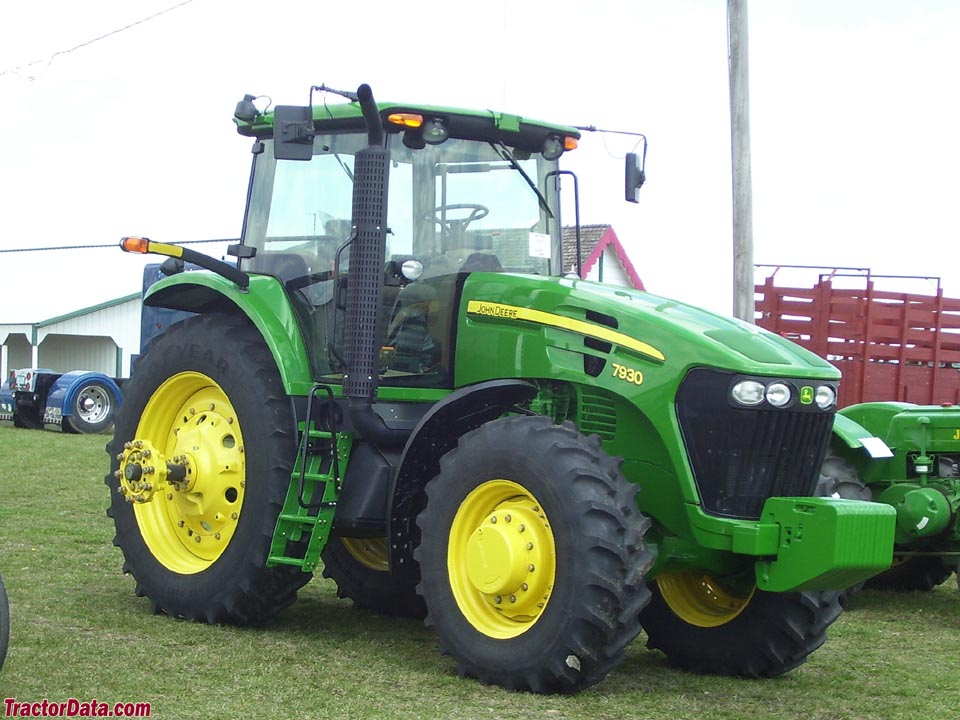

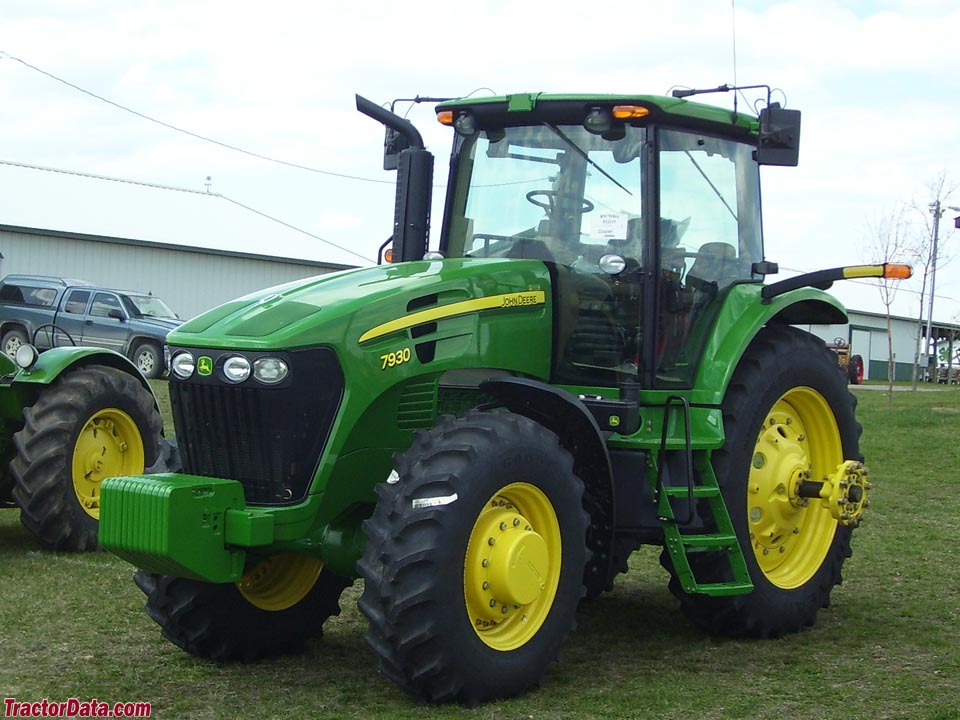

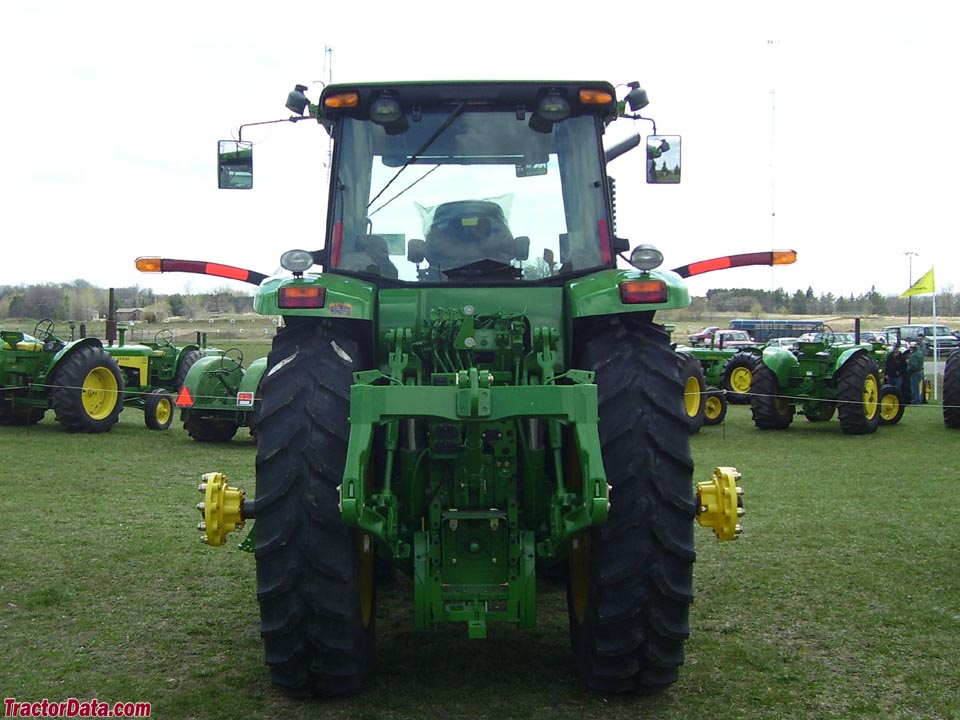

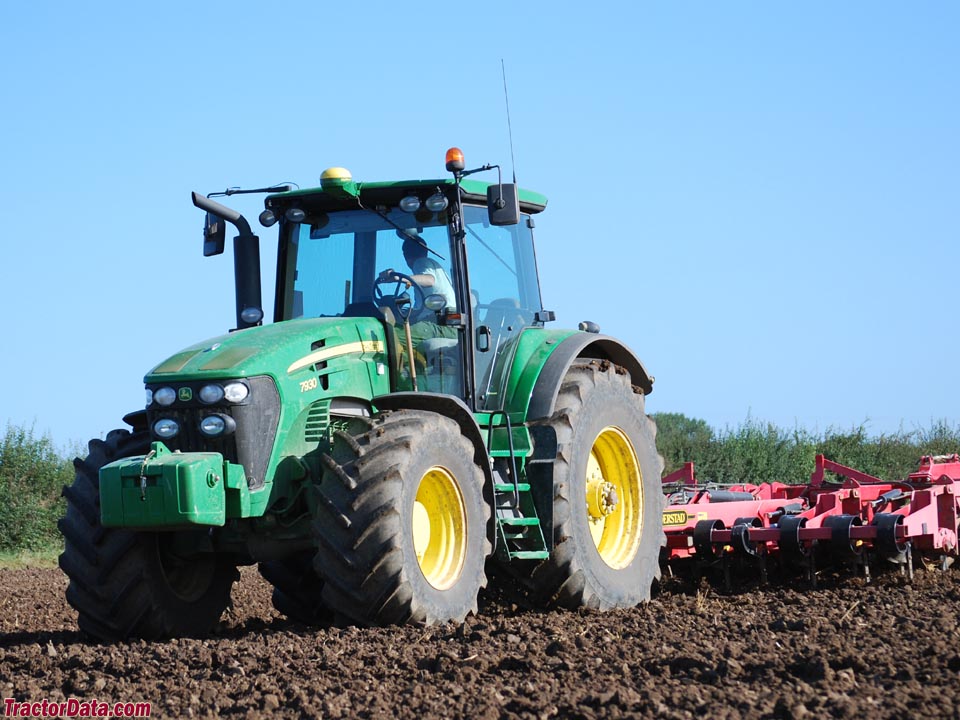

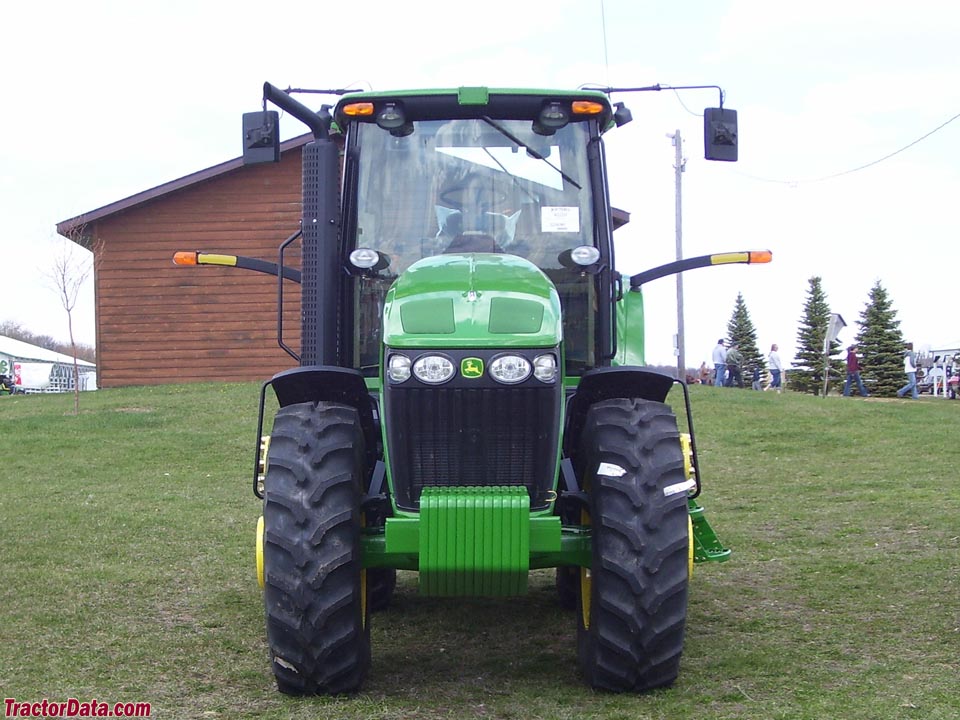

John Deere 7930

Name: John Deere 7930
Brand: John Deere

John Deere 7930 — Row-Crop tractor · 183 hp. Reference specifications; pending source verification.

The John Deere 7930 is a tractor with a rated output of 183 hp, positioning it among the higher-powered machines in its class. It was manufactured from 2007 to 2011. The tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through four-wheel drive with a powershift transmission. Its listed weight is 8042 kg, and it is intended for use on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

183 hp

Max power

151.7 kW

Weight

8042 kg

Catalogue coverage

Variants represented

Richest spec table

136 rows

Recorded power

183 hp

Recorded weight

8042 kg

Transmissions

16-speed

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine164.1 kWReference

Drawbar (tested)123.4 kWReference

John DeereReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Power164.1 kWReference

Fuel systemhigh-pressure common railReference

Cooling systemviscous fanReference

Air cleanerdual paper elementsReference

Compression17:1Reference

Rated RPM2100Reference

Torque874.6 NmReference

Torque RPM1602Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity26.0 LReference

Max power151.7 kWReference

Power at rated engine speed136.5 kWReference

Max power123.4 kWReference

Max power150.7 kWReference

Power at rated engine speed136.4 kWReference

Max power118.6 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speedRPMReference

Engine torque at rated speed292.6 kgReference

Bore and stroke4.19x5.00 inchesReference

Transmission

16-speedReference

20-speedReference

TransmissionPowrQuad PLUSReference

Gears16 forward and reverseReference

Four push-button power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.Reference

TransmissionAutoQuad PLUSReference

Gears20 forward and reverseReference

Four push-button power shift gears (1-4) in five synchronized ranges (A-D) with left-hand power shuttle. Available in 40 kph and 50 kph versions.Reference

TransmissionInfinitely Variable Transmission (IVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)134.2 kWReference

PTO (tested)151.7 kWReference

Hydraulic system107.9 LReference

Typeclosed center load-sensingReference

Capacity107.9 LReference

Pressure200.0 barReference

Valves2 to 7Reference

SCV flow113.6 lpmReference

Total flow121.1 lpmReference

Total flow170.3 lpmReference

Rear TypeIIIReference

Rear lift4558 kgReference

Rear lift6350 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1950Reference

Engine RPM1000@1950Reference

Power at rated PTO speed149.7 kWReference

Power at rated PTO speed148.2 kWReference

Capacities

Fuel389.9 LReference

Fuel355.8 LReference

Fuel tank389.9 LReference

Crankcase oil volume27.5 qtsReference

Dimensions

Wheelbase286 cmReference

Weight8042 kgReference

Front tire420/90R30Reference

Rear tire480/80R46Reference

Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference

Length571 cmReference

Width243 cmReference

Height (cab)310 cmReference

Shipping weight8042 kgReference

Clearance (front axle)69 cmReference

Clearance (rear axle)82 cmReference

Clearance (drawbar)46 cmReference

Bar rear axle100 by 2438 mmReference

Bar rear axle100 by 2801 mmReference

Bar rear axle100 by 3009 mmReference

7930 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925Reference

Test results

OECD 563: diesel AutoQuad-Plus 4WDReference

OECD 564: diesel IVT 4WDReference

Diesel AutoQuad-Plus 4WDMarch 28 - April 9, 2007Link: OCED Tractor Test 563 fileReference

PTO performanceReference

Fuel use43.1 l/hourReference

Fuel use39.7 l/hourReference

Fuel use42.8 l/hourReference

Drawbar performanceReference

Diesel IVT 4WDMarch 29 - April 17, 2007Link: OCED Tractor Test 564 fileReference

Fuel use43.5 l/hourReference

Fuel use40.5 l/hourReference

Speeds

With group 47 rear tires. Reverse speeds are 4% faster than forward.Reference

General

Make & ModelJohn DeereReference

Cruise controlTRUEReference

Rear Axle TypeBarReference

Country of manufacturerUSAReference

PTO

PTO Power180 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@1,950 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)45 gpmReference

Hydraulics TypeClosed Center Load-SensingReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 7 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity6,350.3 kgReference

Dimensions & weight

Height Over Cab310.9 cmReference

Overall Length571.5 cmReference

Overall Width243.8 cmReference

Drawbar clearance46.4 cmReference

Front axle clearance69.6 cmReference

Overall weight8,042.6 kgReference

Wheels & tyres

Rear Wheel Type480/80R46Reference

Front Wheel Type420/90R30Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
