Tractor7R Series · 2024 Verified · 86%

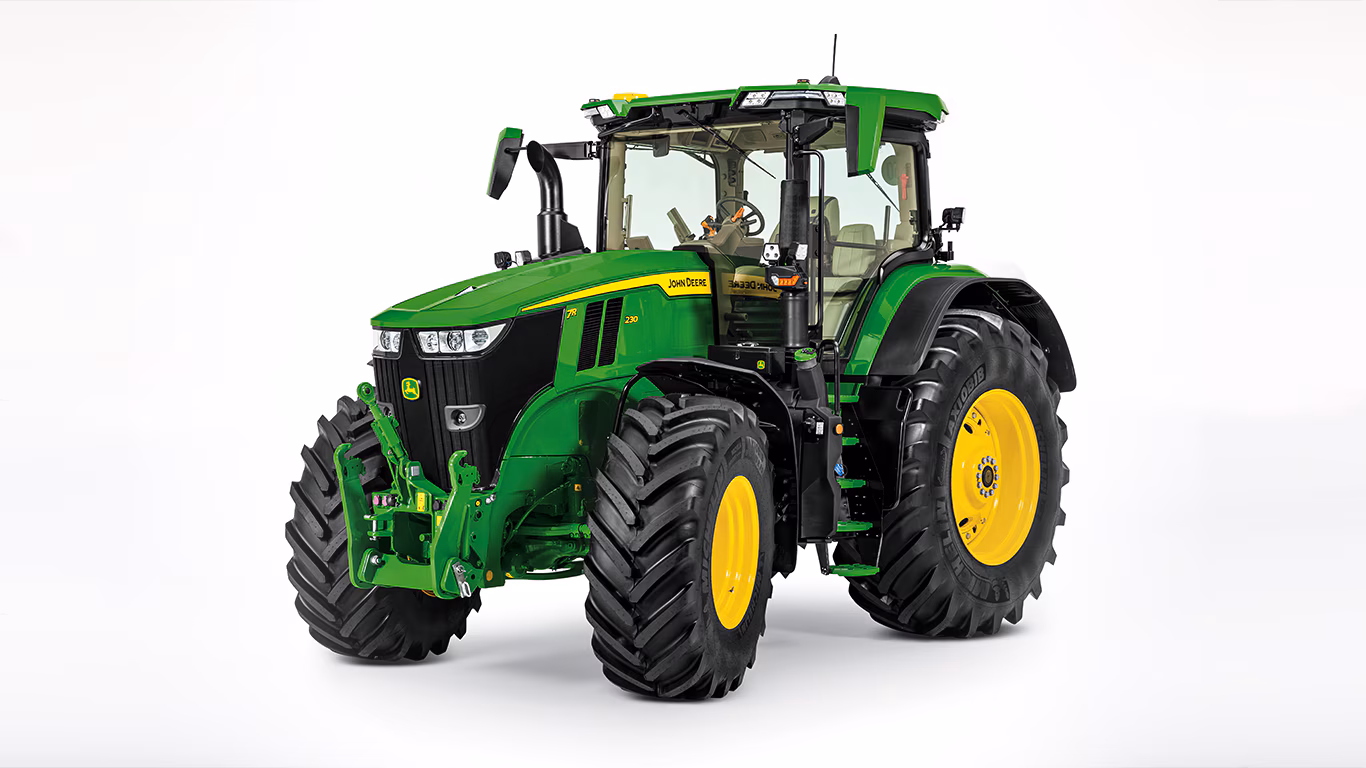

John Deere 7R 230

Name: John Deere 7R 230
Brand: John Deere

John Deere 7R 230: 230 hp tractor — 6.8 L engine, 189 hp PTO, 6894 kg rear lift. Verified specs with sources, UK & US units.

The John Deere 7R 230, part of the 7R Series series, is a tractor with a rated output of 230 hp — placing it among the higher-powered machines in its class. It was introduced in 2024. Drive is handled by a powershift transmission. It is aimed at jobs of around 600–1,500 ac. Detailed specifications in both UK and US units follow below.

Rated power

230 hp

Max power

253 hp

Weight

65.8 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

230 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power172 kW (230 hp)OEM

Emissions stageStage VEPA cert

Engine6.8 LDealer

Fuel TypeDieselReference

No of Cylinders6Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speedOption 1: 1,077 Nm\\nOption 2: 2,100 rpmReference

Interval for engine oil change500 hoursReference

Interval for engine coolant change6,000 hoursReference

Cooling system39.5 LReference

PTO & Hydraulics

PTO power141 kW (189 hp)Dealer

Rear lift capacity6894 kgReference

Hydraulic flow163 L/minDealer

Dimensions

Wheelbase2920 mmDealer

Transmission

Transmission23-speed full power shift infinitely variable transmission LDealer

Transmission TypePowershiftReference

Wheel DriveMFWDReference

Rear Axle Drive TypeInboard planetary three pinionReference

Interval for hydraulic/transmission oil change1,500 hoursReference

General

Make & ModelMJDXL06.8,309Reference

SCV controlJoystick: AvailableReference

Drawbar Maximum vertical load1,837 kgReference

Rear Axle Differential LockFull-locking electrohydraulicReference

Country of manufacturerUSAReference

Working lightsStandard: 18 halogen\\nAvailable: 18 LED or 22 LEDReference

Type of headlight bulbStandard: 65-W halogen\\nAvailable: LEDReference

Capacities

Capacity415 cu. in.Reference

Fuel tank513 LReference

Diesel exhaust fluid (DEF) tank26.2 LReference

Crankcase oil volume6.9 U.S. galReference

Power

Max Power253 hpReference

Front Hitch Electric PowerSeven-pin connectorReference

PTO

PTO torque rise40 percentReference

Rear PTO PowerAvailableReference

Rear PTO ControlElectric switch with adjustable modulationReference

Rear PTO RPM540/540E/1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speedOption 1: 1,950 engine rpm\\nOption 2: 1,940 engine rpmReference

Hydraulics

Pump Rated Output (total)222.3 l/minReference

Remote Valves7Reference

Number of rear selective control valves (SCVs)sixReference

Rear Hitch category (SAE designation)Category 3/3N with Quik-Coupler/Reference

Rear Hitch Sensing TypeElectrohydraulicReference

Front Hitch category (SAE designation)Category 3N, ground engagingReference

Front Hitch lift capacity beyond lift points5,200 kg\\n11,464 lbReference

Dimensions & weight

Drawbar clearance360 mmReference

Turning radius6.7 mReference

Overall weight9,979 kgReference

Weight65.8 kgReference

Wheels & tyres

Rear Wheel TypeRCI Group 47/48Reference

Operator station

Cab AvailabilityAvailableReference

Cab glass area70.61 sq ftReference

Cab space114 cu ftReference

Seat SuspensionAvailableReference

Electrical

Alternator size210 ampReference

Battery options12 VReference

Total cold cranking ampsWith two 925 CCA group 31 batteries: 1,850 CCAReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
