Tractor · 1960Unverified

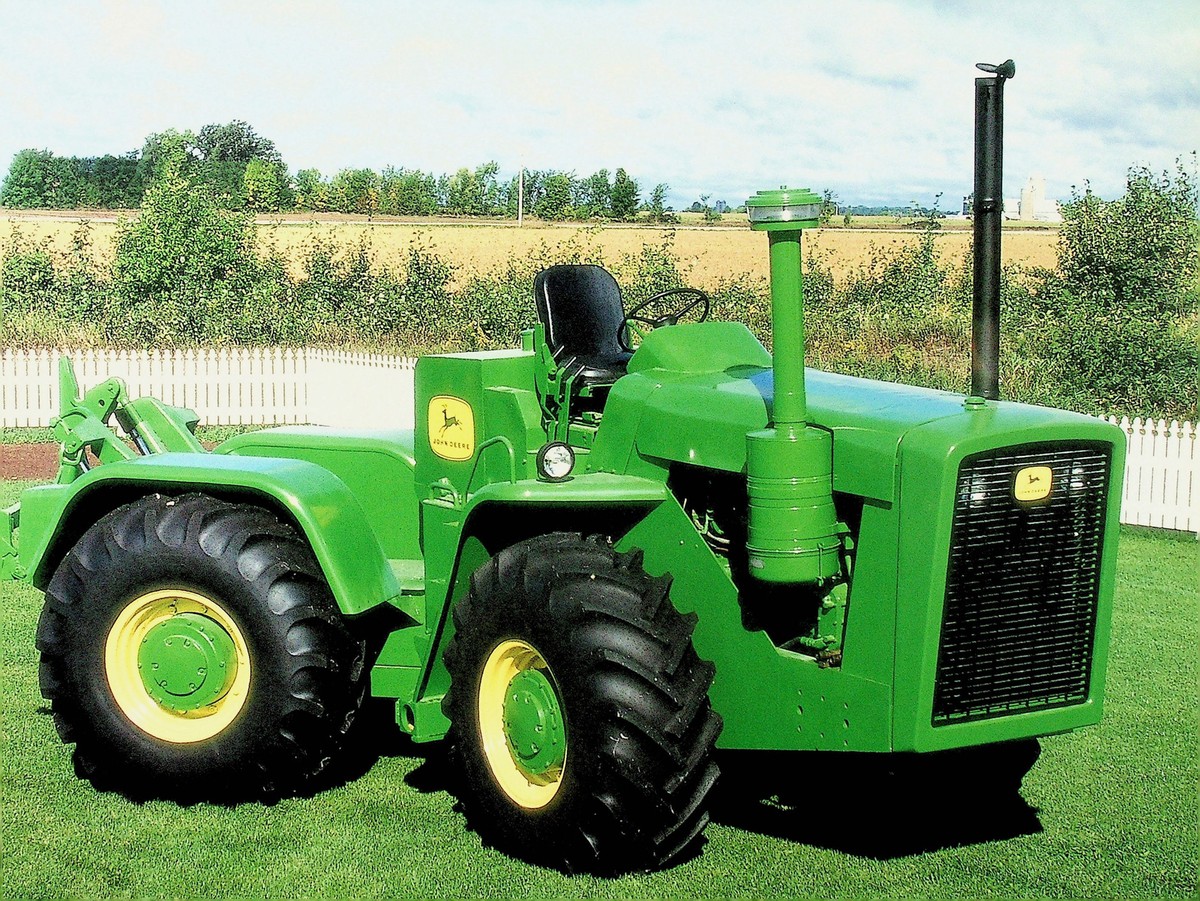

John Deere 8010
John Deere 8010 — Four-wheel Drive (4WD) tractor · 215 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
215 hp
Weight
8935 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Total built100Reference
Original price was $30,000 in 1960Reference
Due to transmission issues, the John Deere 8010s were returned to the factory and converted into 8020s. One 8010 escaped the recall and is currently in the Keller collection.Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Pneumatic drum brakesReference
Open operator station.Reference
Engine
Detroit Diesel 7.0L 6-cyl dieselReference
Engine160.3 kWReference
Drawbar (claimed)111.9 kWReference
Detroit Diesel 6-71Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Power160.3 kWReference
Compression17:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Oil capacity17.0 LReference
Coolant capacity45.4 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 2 reverseReference
Capacities
Fuel401.2 LReference
PTO & Hydraulics
Hydraulic system94.6 LReference
Capacity94.6 LReference
Pump flow151.4 lpmReference
Pump flow227.1 lpmReference
Dimensions
Wheelbase304 cmReference
Weight8935 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Industrial front18.00x25Reference
Industrial rear18.00x25Reference
Length604 cmReference
Width243 cmReference
Height (steering wheel)251 cmReference
Height (exhaust)285 cmReference
Ballasted weight11952 kgReference
8010 Serial Numbers
19611000Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
Charging volts24Reference
Speeds
With 23.1-26 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
