Tractor · 1999Unverified

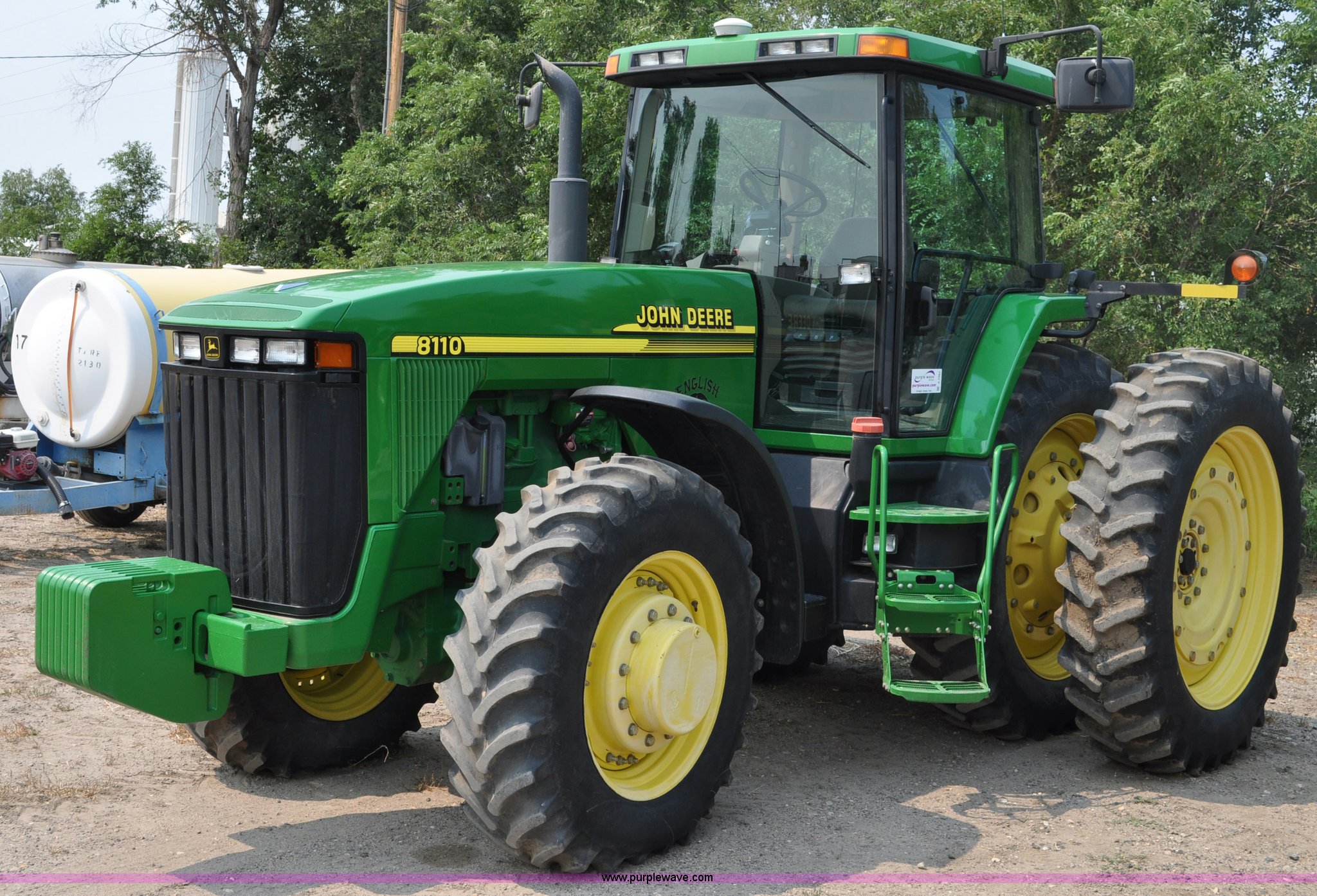

John Deere 8110
John Deere 8110 — Row-Crop tractor · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Variants
8110wheeled tractorReference
8110Tcrawler tractorReference
Engine
John Deere 8.1L 6-cyl dieselReference
Fuel tank511.0 LReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque794.6 NmReference
Oil capacity28.0 LReference
Coolant capacity34.0 LReference
Transmission
16-speedReference
TransmissionPowerShiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)123.0 kWReference
Typeclosed center PFCReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Rear TypeIII, IIINReference
Rear lift4717 kgReference
Rear lift6425 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase295 cmReference
Front tire16.9R30Reference
Rear tire18.4R46Reference
Ag front16.9R30Reference
Ag rear18.4R46Reference
Ground clearance58 cmReference
8110 Serial Numbers
Location:Rear of tractorReference
Electrical
Charging amps140Reference
Batteries2Reference
Battery CCA1,850Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
