Tractor · 2000Unverified

John Deere 8110T

Name: John Deere 8110T
Brand: John Deere

John Deere 8110T — Agricultural Crawler tractor · 165 hp. Reference specifications; pending source verification.

The John Deere 8110T is a tractor with a rated output of 165 hp, categorising it among the higher-powered machines in its class. Manufactured from 2000 to 2001, the 8110T features a 6-cylinder turbocharged electric liquid-cooled engine, which powers a tracked undercarriage equipped with a hydrostatic transmission. Its listed weight is 10727 kg, making it suited for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

165 hp

Weight

10727 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

165 hp

Recorded weight

10727 kg

Transmissions

16-speed full powershift

Production years

2000-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

DrivecrawlerReference

SteeringhydrostaticReference

Hydraulic wet disc brakesReference

CommandView cab standard with heat and A/C. Optional dexlue cab with rear windshield wiper, additional lights, mirror, and sun visor.Reference

Variants

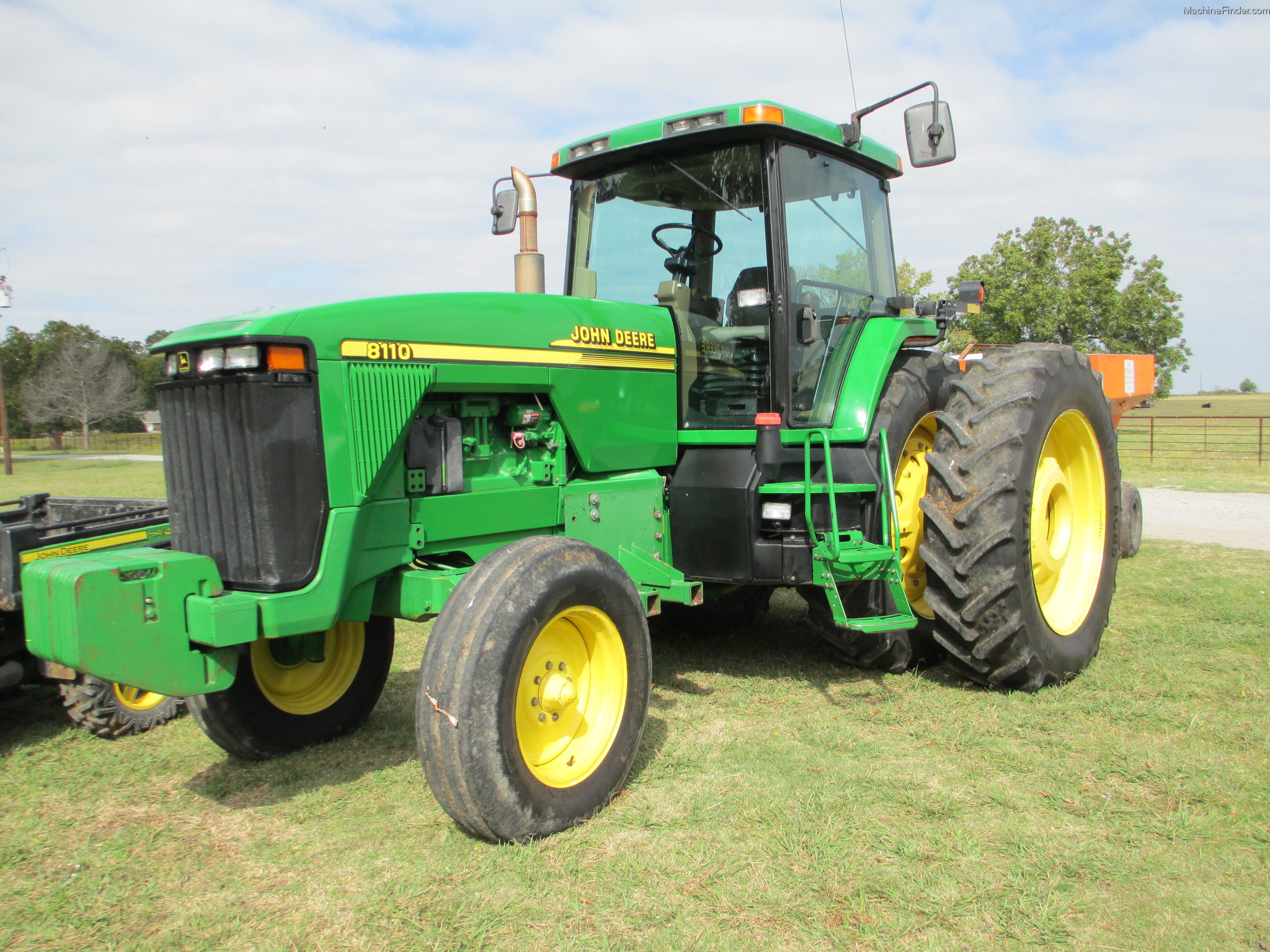

8110wheeled tractorReference

8110Tcrawler tractorReference

Engine

John Deere 8.1L 6-cylReference

John DeereReference

turbocharged aftercooledReference

6-cylinderReference

liquid-cooledReference

Displacement8.1 LReference

Bore/Stroke116 x 129 mmReference

Air cleanertwo paper elementsReference

Compression16.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity34.0 LReference

Oil capacity21.5 LReference

Transmission

16-speed full powershiftReference

Typefull powershiftReference

Gears16 forward and 4 reverseReference

Oil capacity246.1 LReference

PTO & Hydraulics

PTO (claimed)123.0 kWReference

Hydraulic system246.0 LReference

Typepressure/flow compensated (PFC)Reference

Capacity246.0 LReference

Pressure200.0 barReference

Valves3 to 5Reference

Pump flow113.6 lpmReference

Total flow126.8 lpmReference

Total flow160.9 lpmReference

Rear TypeIII/IIINReference

Rear lift7098 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel492.1 LReference

Dimensions

Wheelbase226 cmReference

Weight10727 kgReference

16-inch tracksReference

Length525 cmReference

Width263 cmReference

Height312 cmReference

Shipping weight10727 kgReference

Max weight14288 kgReference

Ground clearance44 cmReference

Ground clearance55 cmReference

Electrical

Charging systemalternatorReference

Charging amps140Reference

Batteries2Reference

Battery CCA1850Reference

Battery volts12Reference

John Deere 8110T Tracks

Width40 cmReference

Width45 cmReference

Width60 cmReference

Width76 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
