Tractor · 1995Unverified

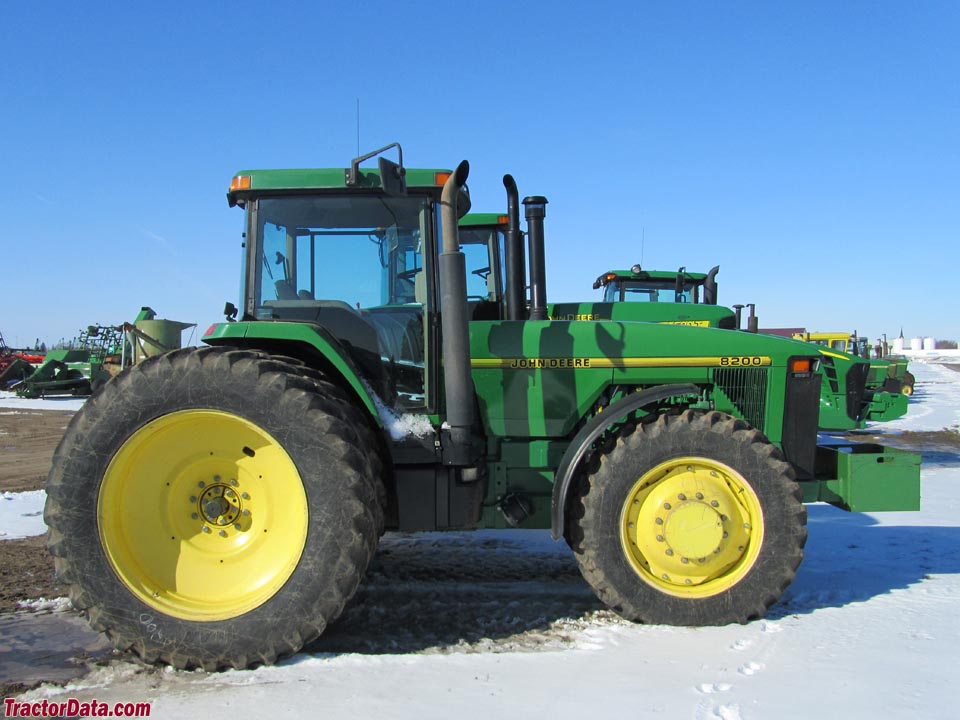

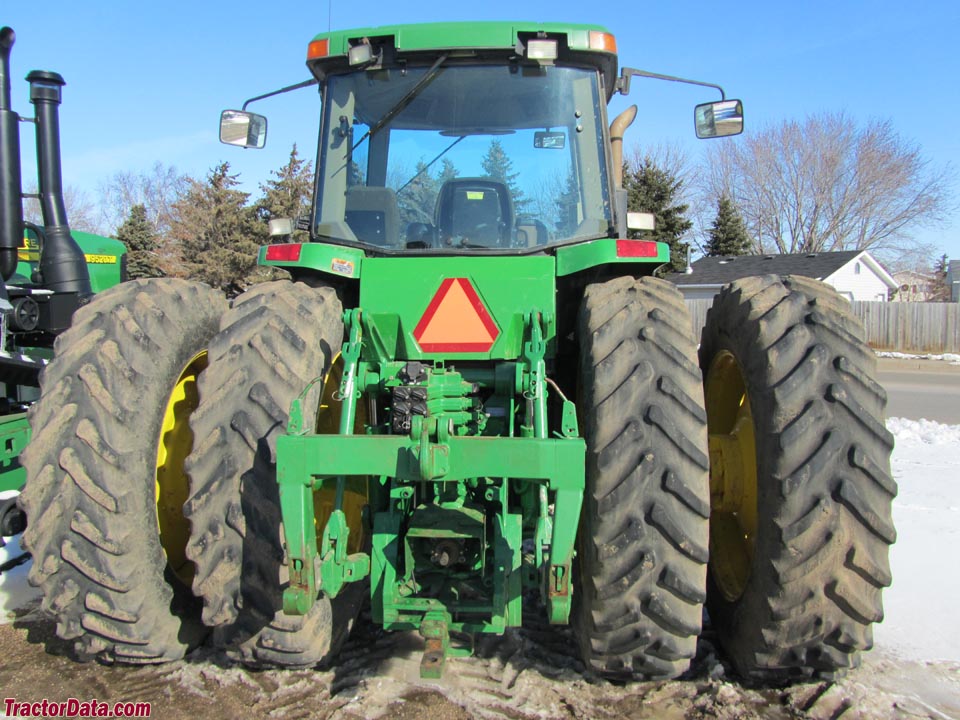

John Deere 8200
John Deere 8200 — Model year 1995-19961997-1999 · 182 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
182 hp
Max power
150.9 kW
Weight
16457 to 18928 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
CommandView Cab standard. Row-Trak guidance optional.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Drawbar (tested)119.0 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Compression15.1:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity23.5 LReference
Coolant capacity27.3 LReference
Max power150.9 kWReference
Power at rated engine speed135.5 kWReference
Max power119.0 kWReference
Transmission
16-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
Oil capacity140.1 LReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)150.9 kWReference
Hydraulic system140.0 LReference
Typeclosed center pressure-flow compensated (PFC)Reference
Capacity140.0 LReference
Pressure200.0 barReference
Valves3 to 5Reference
SCV flow113.6 lpmReference
Rear TypeIII/IIINReference
Controlelectro-hydraulic draft sensingReference
Rear lift4717 kgReference
Rear lift6425 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1930Reference
Engine RPM1000@2200Reference
Capacities
Fuel511.0 LReference
Front hubs3.0 LReference
Front diff.10.9 LReference
Dimensions
2WD Wheelbase311 cmReference
4WD Wheelbase294 cmReference
Weight16457 to 18928 poundsReference
Front tire11.00-24Reference
2WD Rear tire18.4R46Reference
2WD Standard tires (ag)Front: 11.00-24. Rear: 18.4R46Reference
2WD Standard tires (ag)Front: 14.9R34. Rear: 18.4R46Reference
Length524 cmReference
Height305 cmReference
4WD Ground clearance58 cmReference
2WD Ground clearance80 cmReference
Optional short axle rear axle99 by 2806 mmReference
Standard axle rear axle99 by 3009 mmReference
Optional large axle rear axle110 by 3009 mmReference
2WD Front tread152 to 213 cmReference
4WD Front tread152 to 223 cmReference
2WD Shipping7464 kgReference
4WD Shipping8118 kgReference
Operating8585 kgReference
Ballasted10736 kgReference
8200 Serial Number Location
Serial number plate on the rear of the tractor, above the PTO shaft.Reference
8200 Serial Numbers
19951001Reference
19963001Reference
199710001Reference
199820001Reference
199924001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries2Reference
Battery CCA1,850Reference
Battery volts12Reference
Test results
7.6L diesel 16-speed 4WDApril 24 - May 12, 1995Link: Nebraska Tractor Test 1689 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Fuel use39.4 l/hourReference
Drawbar performanceReference
Fuel use39.0 l/hourReference
Gear 8 used for power test.Reference
Max pull10647 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
