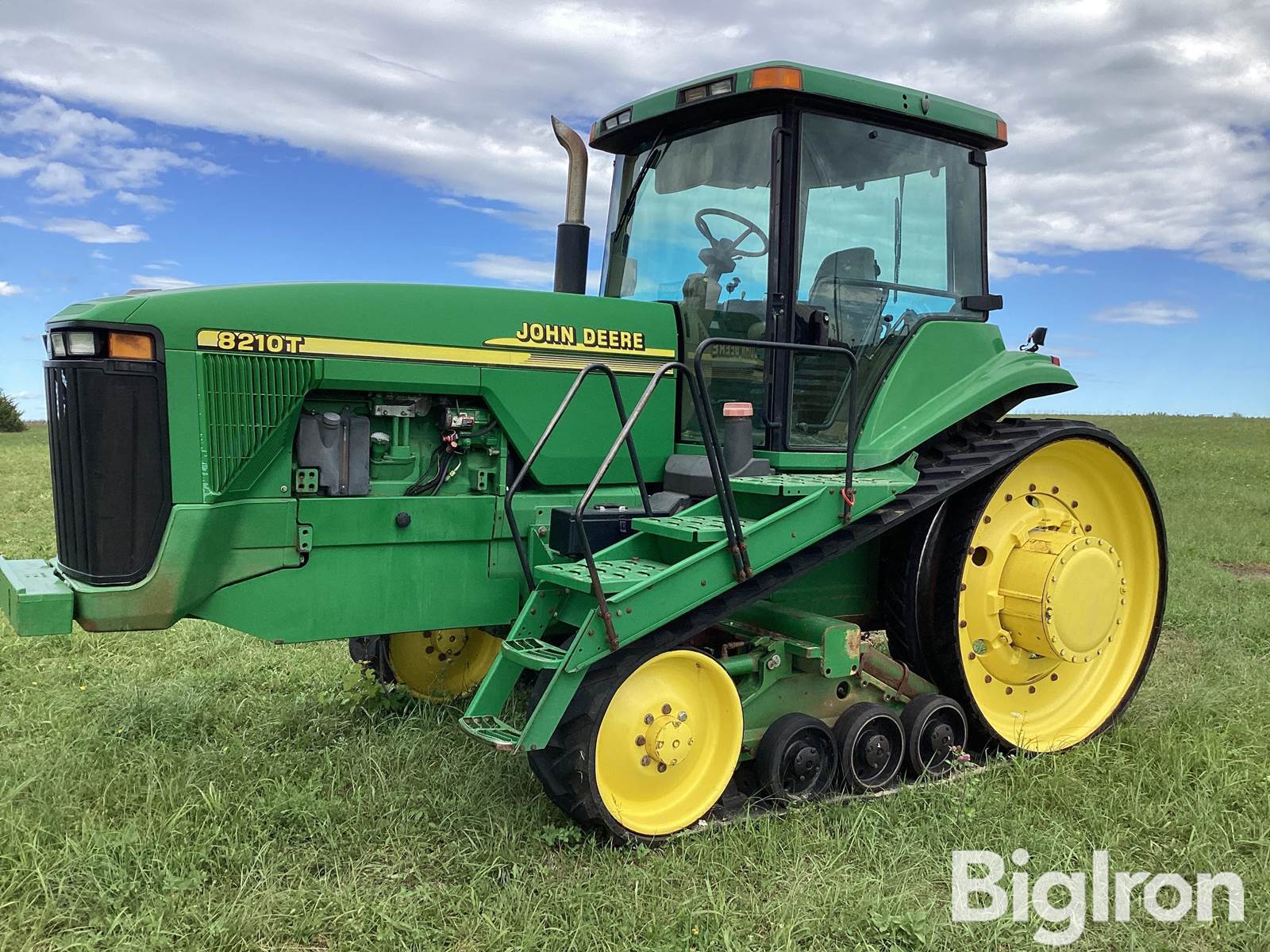

John Deere 8210T
John Deere 8210T — Agricultural Crawler tractor · 188 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
188 hp
Max power
161.3 kW
Weight
23650 to 25390 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
SteeringhydrostaticReference
Hydraulic wet disc brakesReference
CommandView cab standard with heat and A/C. Optional dexlue cab with rear windshield wiper, additional lights, mirror, and sun visor.Reference
Variants
8210wheeled tractorReference
8210Tcrawler tractorReference
Engine
John Deere 8.1L 6-cylReference
Drawbar (tested)118.4 kWReference
John DeereReference
turbocharged aftercooledReference
6-cylinderReference
liquid-cooledReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Air cleanertwo paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity34.0 LReference
Oil capacity23.5 LReference
Max power161.3 kWReference
Power at rated engine speed140.3 kWReference
Max power118.4 kWReference
Transmission
16-speed full powershiftReference
Typefull powershiftReference
Gears16 forward and 4 reverseReference
Oil capacity246.1 LReference
PTO & Hydraulics
PTO (claimed)138.0 kWReference
PTO (tested)161.3 kWReference
Hydraulic system246.0 LReference
Typepressure/flow compensated (PFC)Reference
Capacity246.0 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Total flow126.8 lpmReference
Total flow160.9 lpmReference
Rear TypeIII/IIINReference
Rear lift7098 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel492.1 LReference
Max capacity14288 kgReference
Dimensions
Wheelbase226 cmReference
Weight23650 to 25390 poundsReference
16-inch tracksReference
Length525 cmReference
Width263 cmReference
Height312 cmReference
Ground clearance44 cmReference
Ground clearance55 cmReference
Shipping10727 kgReference
Operating11516 kgReference
Ballasted12523 kgReference
Electrical
Charging systemalternatorReference
Charging amps140Reference
Batteries2Reference
Battery CCA1850Reference
Battery volts12Reference
John Deere 8210T Tracks
Width40 cmReference
Width45 cmReference
Width60 cmReference
Width76 cmReference
Test results
Diesel 16-speed crawlerApril 24 - May 17, 2000Link: OCED Tractor Test 1774 fileReference
PTO performanceReference
Fuel use44.3 l/hourReference
Fuel use41.6 l/hourReference
Drawbar performanceReference
Fuel use41.3 l/hourReference
Gear 9 used for power test.Reference
Max pull11103 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
