Tractor · 2002Unverified

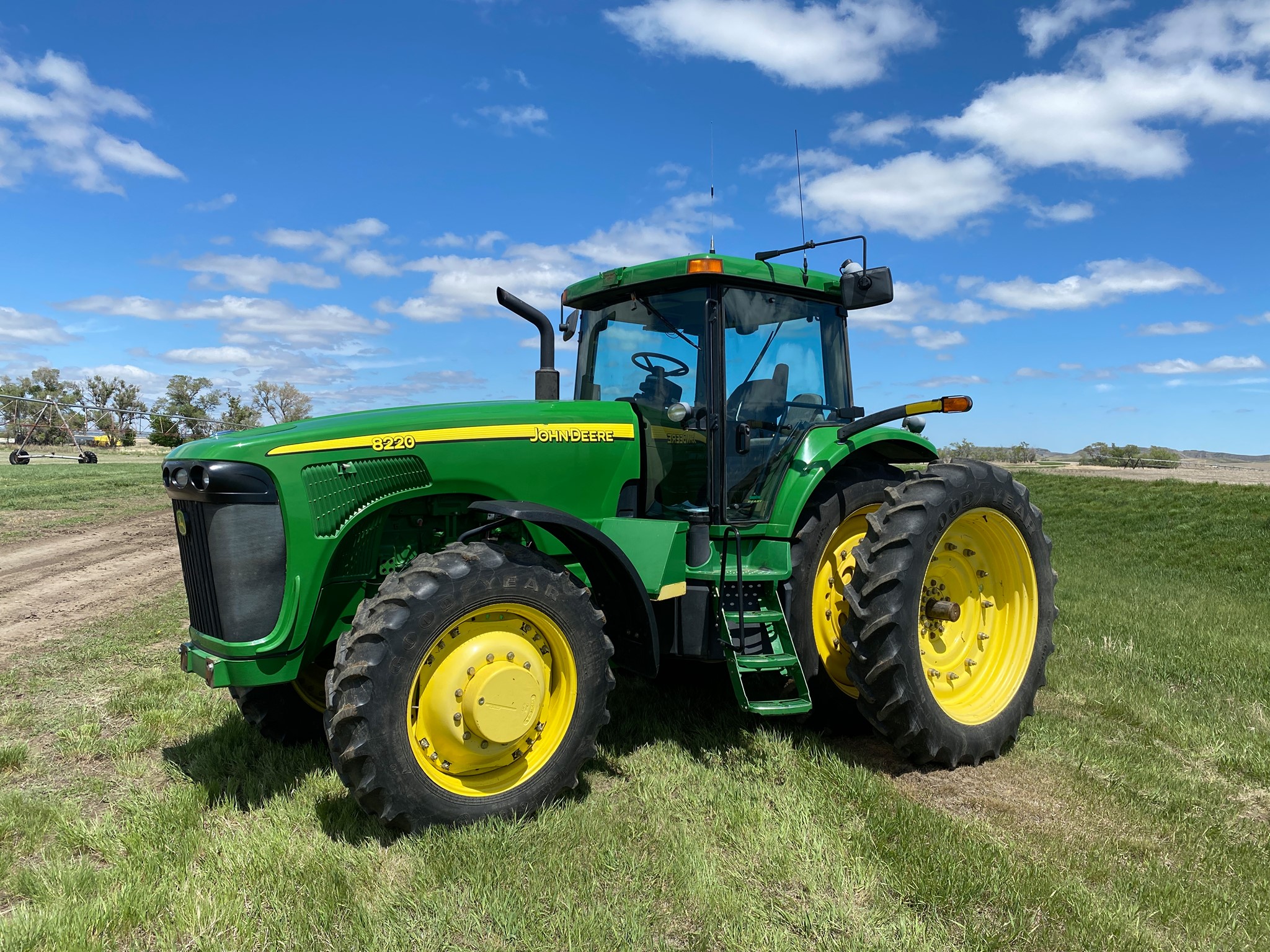

John Deere 8220
John Deere 8220 — Row-Crop tractor · 233 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
233 hp
Max power
165.8 kW
Weight
19100 to 22450 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
8220wheeled tractorReference
8220TcrawlerReference
Engine
John Deere 8.1L 6-cyl dieselReference
Engine (gross)173.7 kWReference
Engine (net)167.8 kWReference
Engine (max)190.9 kWReference
Drawbar (tested)122.7 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Rated Power (net)167.8 kWReference
Rated Power (gross)173.7 kWReference
Maximum Power (net)186.4 kWReference
Maximum Power (gross)190.9 kWReference
Fuel systemelectronic high-pressure common rail (HPCR)Reference
Air cleanerdry with secondary elementReference
Compression16.5:1Reference
Rated RPM2200Reference
Idle RPM900-2300Reference
Operating RPM1500-2200Reference
Starter volts12Reference
Coolant capacity34.0 LReference
Oil capacity23.5 LReference
Oil change250 hReference
Max power165.8 kWReference
Power at rated engine speed142.7 kWReference
Max power122.7 kWReference
Transmission
16-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
Oil capacity140.1 LReference
Oil capacity149.9 LReference
Full power shift transmission with single shift lever with display on cab corner post. Tractor begins in 7 (forward) and 2 (reverse) on start up. Clutch pedal may be used to pre-select a gear by holding clutch and pressing lever until desired gear is reached. Automatic PowerShift (APS) allows automated shifting to match load.Reference
PTO & Hydraulics
PTO (claimed)141.7 kWReference
PTO (tested)165.8 kWReference
Hydraulic system140.0 LReference
Hydraulic system149.9 LReference
Typeclosed center pressure-flow compensated (PFC)Reference
Capacity140.0 LReference
Capacity149.9 LReference
Pressure200.0 barReference
Valves5Reference
SCV flow113.6 lpmReference
Total flow126.8 lpmReference
Total flow160.9 lpmReference
Rear TypeIII/IIINReference
Rear lift5579 kgReference
Rear lift6885 kgReference
Front HitchIIINReference
Front lift4989 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discsReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375 optional)Reference
Engine RPM540@1975Reference
Engine RPM1000@2200Reference
Capacities
Fuel511.0 LReference
Fuel605.6 LReference
Front hubs3.4 LReference
Front hubs4.0 LReference
Front diff.13.4 LReference
Dimensions
Wheelbase313 cmReference
Wheelbase296 cmReference
Wheelbase293 cmReference
Wheelbase302 cmReference
Weight19100 to 22450 poundsReference
Front tire11.00-24Reference
Rear tire18.4R46Reference
Ag front11.00-24Reference
Ag front16.9R30 (4WD)Reference
Ag rear18.4R46Reference
Length533 cmReference
Length538 cmReference
Height (cab)305 cmReference
Front axle2WDReference
Front axleMFWDReference
Front axleMFWD ILSReference
Rack-and-pinion rear axle110 by 3009 mmReference
Rack-and-pinion rear axle119 by 3009 mmReference
2WD Front tread152 to 223 cmReference
4WD Front tread152 to 203 cmReference
ILS Front tread152 to 223 cmReference
Shipping8663 kgReference
Shipping9548 kgReference
Shipping9820 kgReference
Shipping10183 kgReference
Operating9092 kgReference
Max Drawbar1769 kgReference
Max Drawbar2753 kgReference
Max Drawbar4536 kgReference
8220 Serial Numbers
Location:Rear of tractor.Reference
20021001Reference
200310001Reference
200420001Reference
200530001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMarch 31 - April 8, 2003Link: OCED Tractor Test 1820 fileReference
PTO performanceReference
Fuel use43.5 l/hourReference
Fuel use42.0 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull10828 kgReference
Gear 3 used for pull test.Reference
Speeds
With 18.4R46 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
