Tractor · 2009Unverified

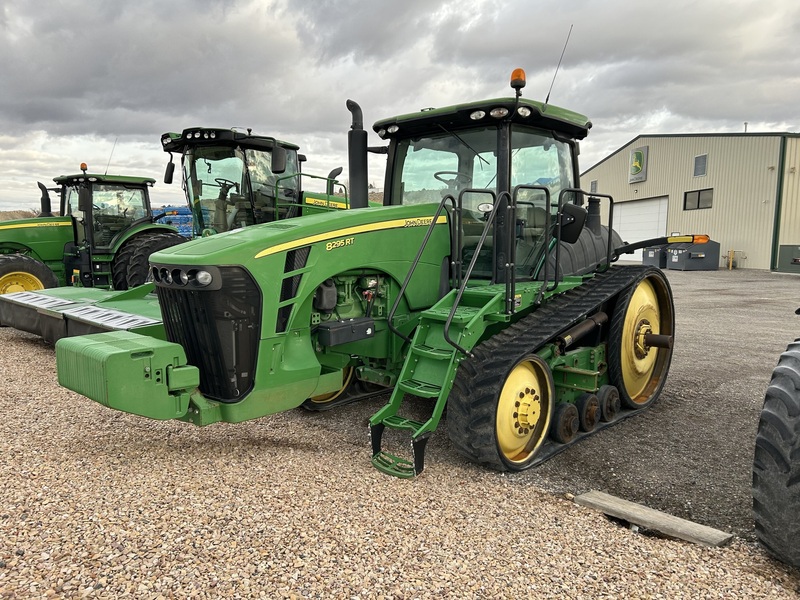

John Deere 8295RT

Name: John Deere 8295RT
Brand: John Deere

John Deere 8295RT — Agricultural Crawler tractor · 295 hp. Reference specifications; pending source verification.

The John Deere 8295RT is a tractor with a rated power output of approximately 295 horsepower, placing it at the high-end of its class. Production of this model occurred during the years 2009 and 2010. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a tracked undercarriage and powershift transmission. The tractor's listed operating weight is 15,631 kilograms.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

295 hp

Max power

208.2 kW

Weight

15631 kg

Catalogue coverage

Variants represented

Richest spec table

129 rows

Recorded power

295 hp

Recorded weight

15631 kg

Transmissions

16-speed full power shift

Production years

2009-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

DrivecrawlerReference

Steeringelectro-hydraulic powerReference

Hydraulic wet disc brakesReference

CommandView cab standard with heat and air-conditioning. Optional automatic temperature control, mirros, and front/rear windshield wipers.Reference

Variants

8295Rwheeled tractorReference

Engine

John Deere 9.0L 6-cyl dieselReference

Engine (gross)220.0 kWReference

Engine (net)211.8 kWReference

Engine (max)240.1 kWReference

Drawbar (tested)158.6 kWReference

John DeereReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement9.0 LReference

Bore/Stroke118 x 136 mmReference

EmissionsTier 3Reference

EmissionsStage IIIAReference

Rated Power (net)211.8 kWReference

Rated Power (gross)220.0 kWReference

Maximum Power (gross)240.1 kWReference

Air cleanerdual paper elementsReference

Compression16.3:1Reference

Rated RPM2100Reference

Operating RPM1500-2100Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity40.0 LReference

Oil capacity25.6 LReference

Oil change250 hReference

Oil change375 h (JD Plus-50 II oil)Reference

Max power208.2 kWReference

Power at rated engine speed181.1 kWReference

Max power158.6 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier 3, Stage IIIAReference

Bore and stroke4.661x5.354 inchesReference

Compression ratio16.3:1Reference

Cooling systemliquid-cooledReference

Interval for engine oil change250 hrReference

Transmission

16-speed full power shiftReference

TransmissionJohn Deere PowerShiftReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Oil capacity258.6 LReference

Oil typeJD Hy-GardReference

TransmissionInfinitely Variable Transmission (IVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsPowerShift - 16F & 4R | IVT - infinite F & RReference

Wheel DrivetrackReference

PTO & Hydraulics

PTO (claimed)175.2 kWReference

PTO (tested)208.2 kWReference

Hydraulic system258.5 LReference

Typeclosed center pressure-flow compensatedReference

Capacity258.5 LReference

Pressure200.0 barReference

Valves3 to 5Reference

Pump flow132.5 lpmReference

Total flow166.5 lpmReference

Total flow227.1 lpmReference

Rear TypeIII/IIINReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)7620 kgReference

Rear lift (at 24"/610mm)8754 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1-3/4)Reference

Power at rated PTO speed199.3 kWReference

Capacities

Fuel757.0 LReference

Fuel tank757.1 LReference

Crankcase oil volume27 qtsReference

Dimensions

Wheelbase251 cmReference

Weight15631 kgReference

25-inch tracksReference

Length567 cmReference

Width381 cmReference

Height (cab)332 cmReference

Shipping weight15631 kgReference

Clearance (rear axle)62 cmReference

Clearance (drawbar)37 cmReference

8295RT Serial Numbers

Location:Right side of tractor.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

John Deere 8295RT Tracks

Width63 cmReference

Width40 cmReference

Width45 cmReference

Width60 cmReference

Width76 cmReference

Test results

Diesel 16-speed crawlerApril 28 - May 12, 2010Link: OCED Tractor Test 1970 fileReference

PTO performanceReference

Fuel use56.8 l/hourReference

Fuel use50.3 l/hourReference

Fuel use54.5 l/hourReference

Drawbar performanceReference

Fuel use50.7 l/hourReference

Gear 8 used for power test.Reference

Max pull14877 kgReference

Gear 3 used for pull test.Reference

Speeds

Speed in R3 at 2300 RPM and R4 at 1500 RPM. Fifth reverse is dealer-installed option.Reference

General

Make & ModelJohn DeereReference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves24 valveReference

Pump Rated Output (total)60 gpmReference

Hydraulics Typeclosed center pressure-flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 5 valvesReference

Rear Hitch category (SAE designation)Category III/IIIN | CategoryIVN/IIIReference

Power

Rated Power295 hpReference

PTO

PTO Power235 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typeelectro-hydraulic powerReference

Dimensions & weight

Height Over Cab332.2 cmReference

Overall Length567.7 cmReference

Overall Width381 cmReference

Drawbar clearance37.1 cmReference

Overall weight15,630.8 kgReference

Track width76.2 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
