Tractor · 1999Unverified

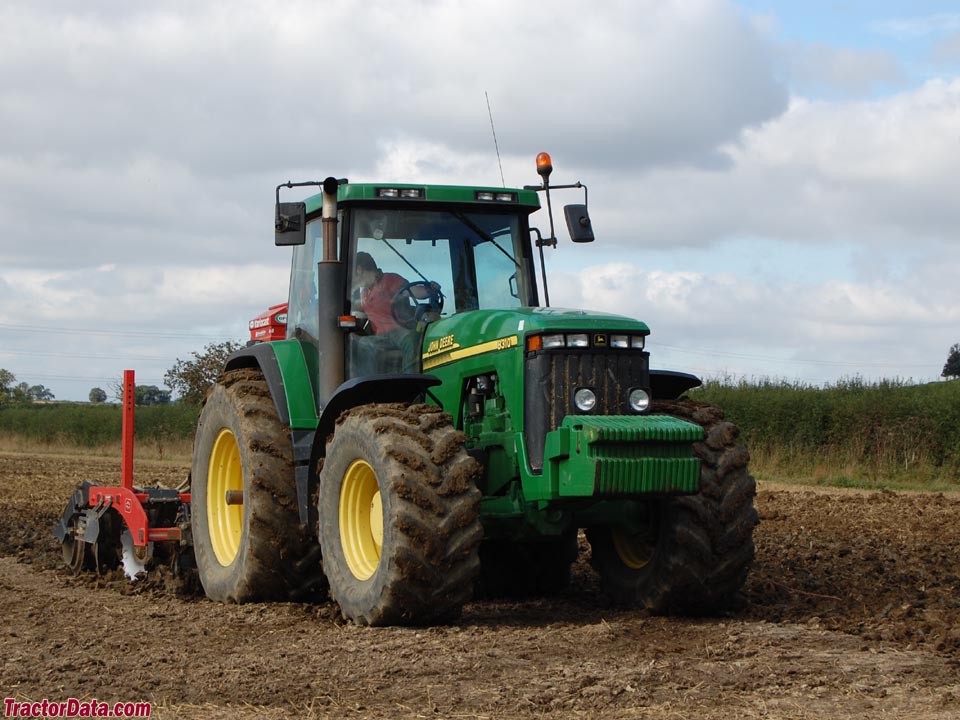

John Deere 8310
John Deere 8310 — Row-Crop tractor · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Weight
8402 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Variants
8310wheeled tractorReference
8310Tcrawler tractorReference
Engine
John Deere 8.1L 6-cyl dieselReference
Fuel tank511.0 LReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque1004.8 NmReference
Oil capacity28.0 LReference
Coolant capacity34.0 LReference
Transmission
16-speedReference
TransmissionPowerShiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)152.9 kWReference
Typeclosed center PFCReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Rear TypeIII, IIINReference
Rear lift5307 kgReference
Rear lift7098 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase296 cmReference
Weight8402 kgReference
Ground clearance58 cmReference
8310 Serial Numbers
Location:Rear of tractorReference
20001001Reference
200110001Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging amps140Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Speeds
With 620/70R42 rear tires. 16th gear speed at 2400 RPM. R4 speed at 1600 RPM.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
