Tractor · 2011Unverified

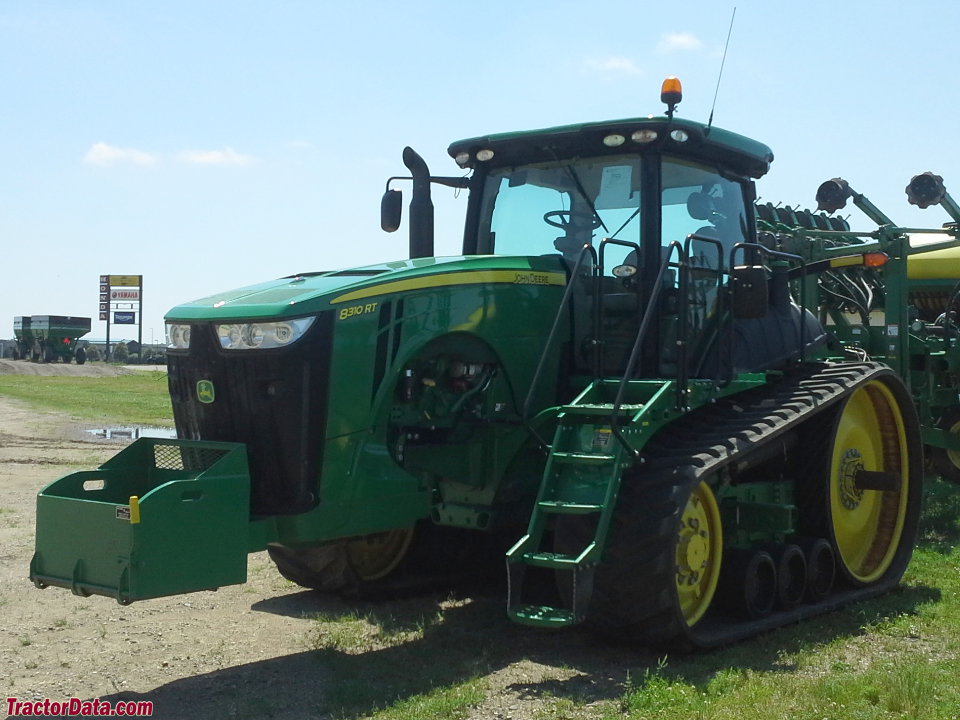

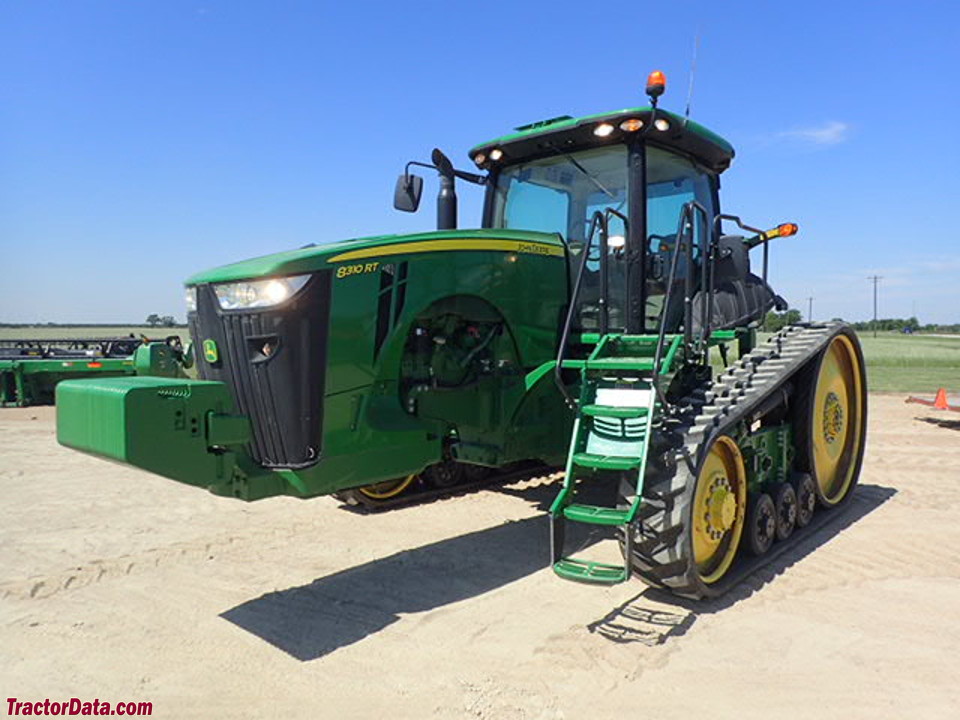

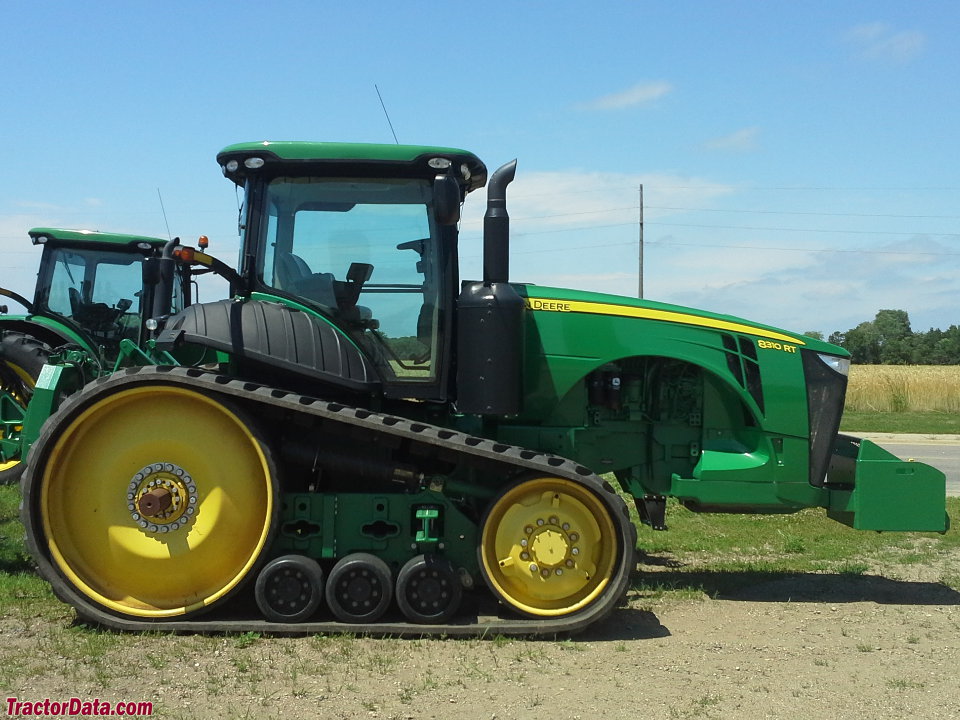

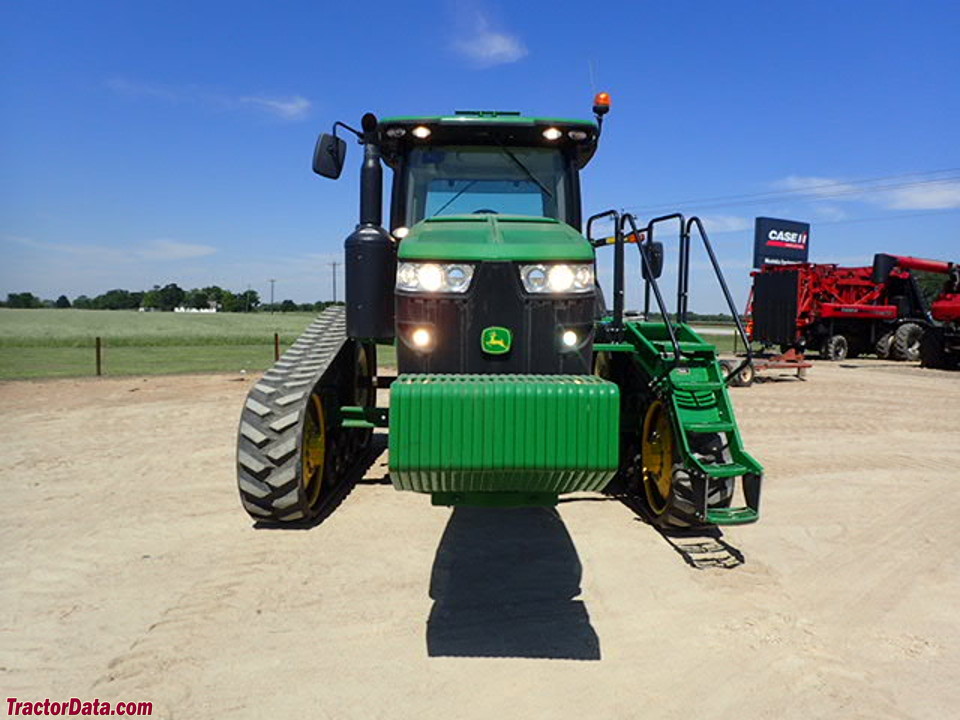

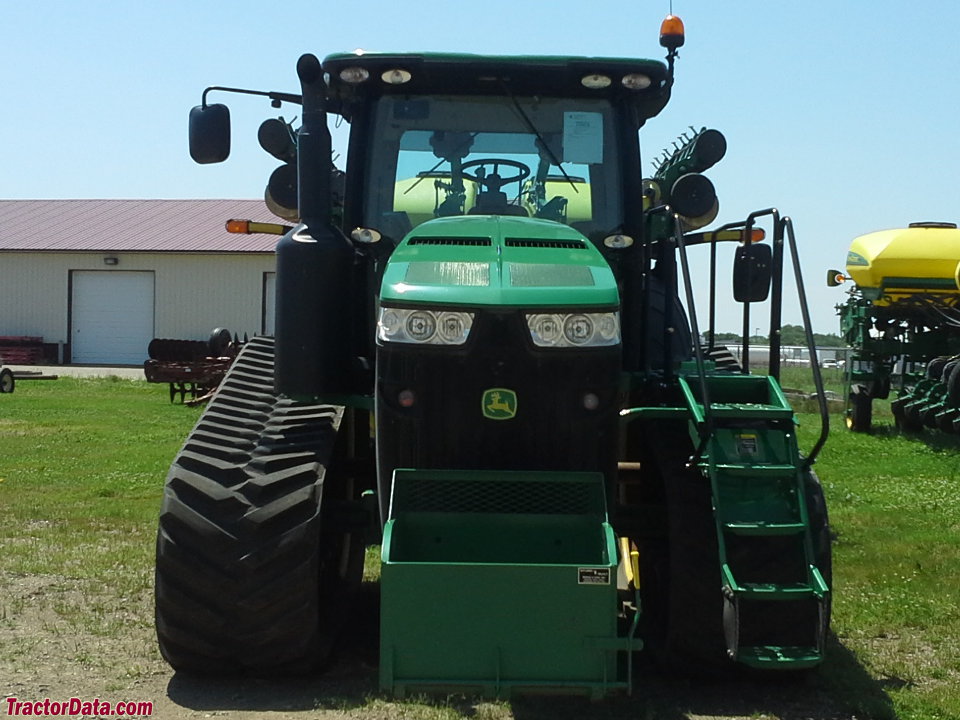

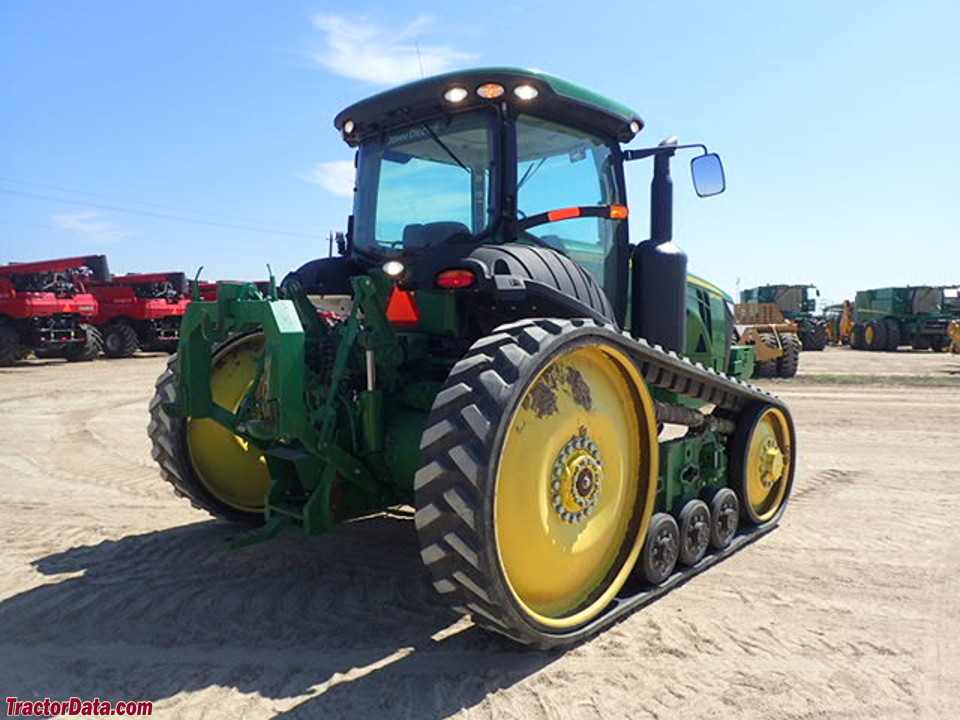

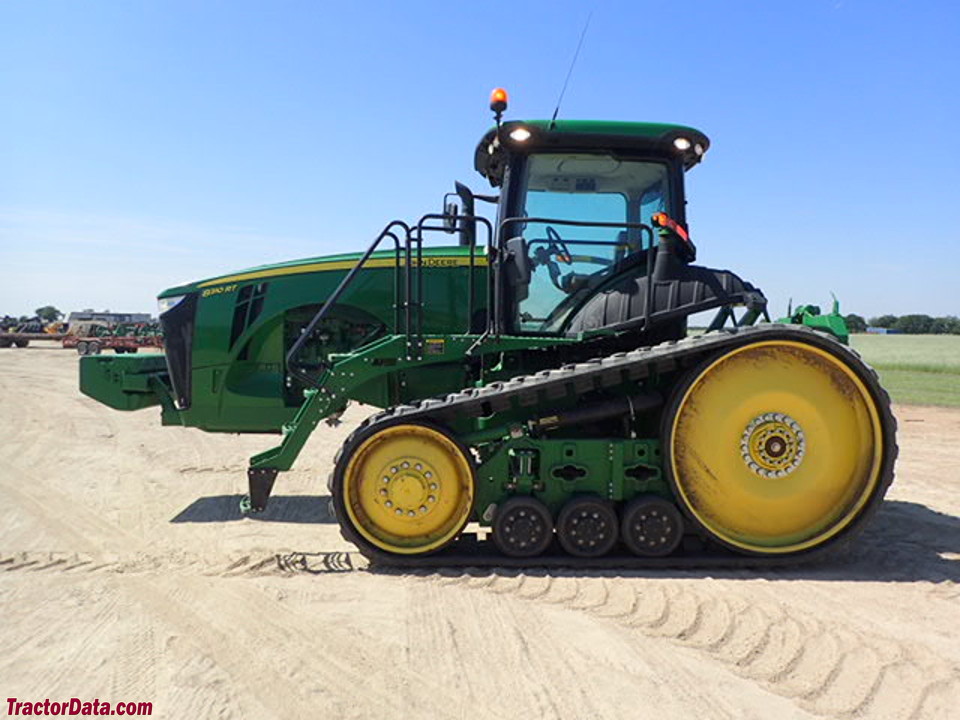

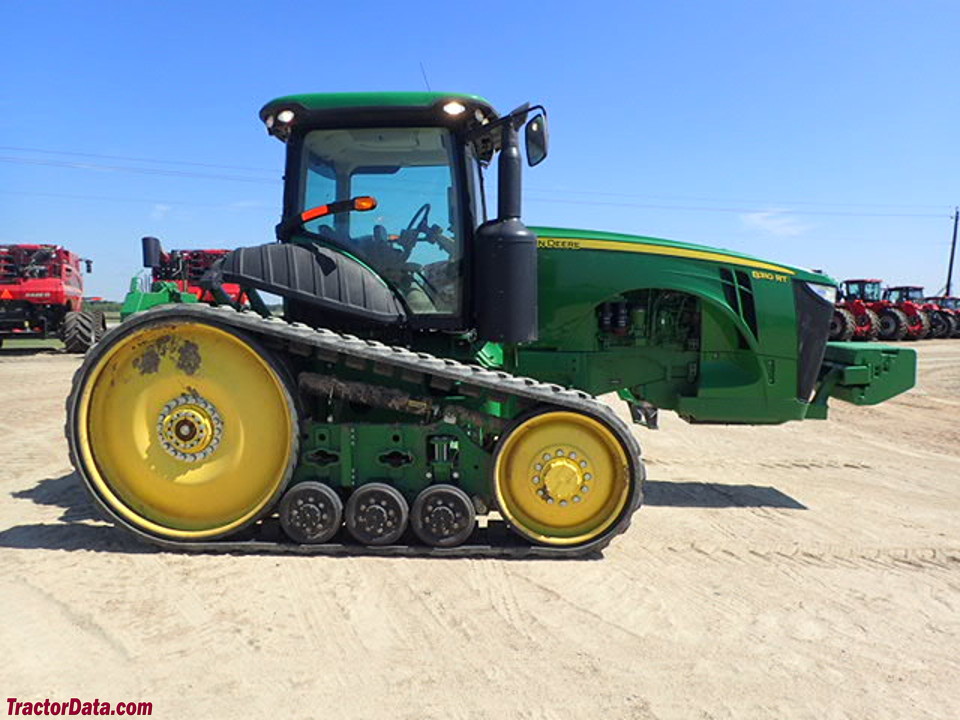

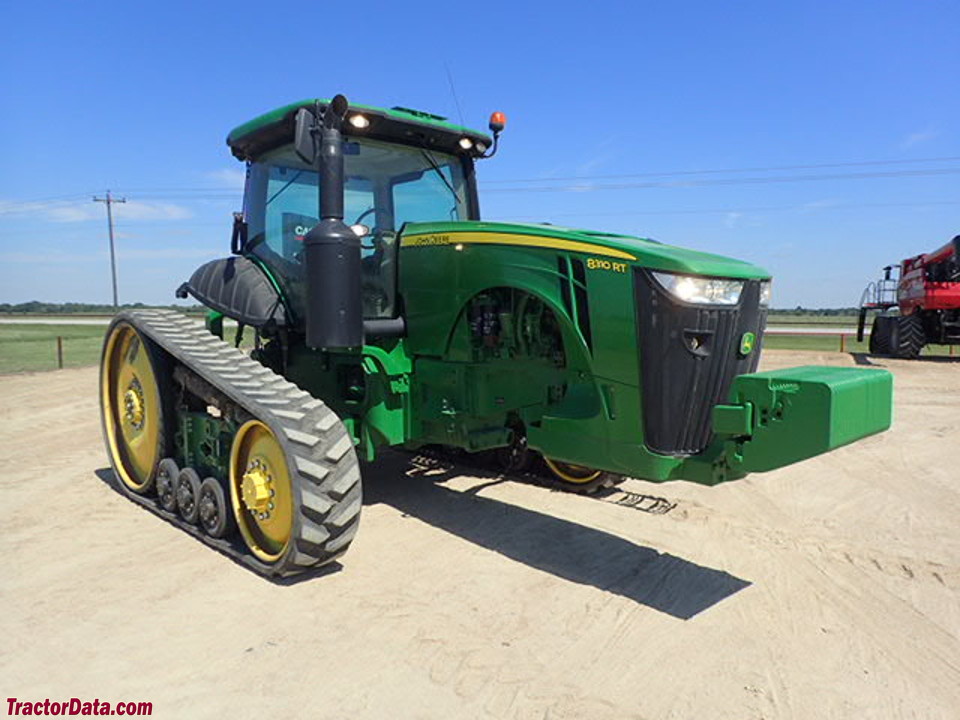

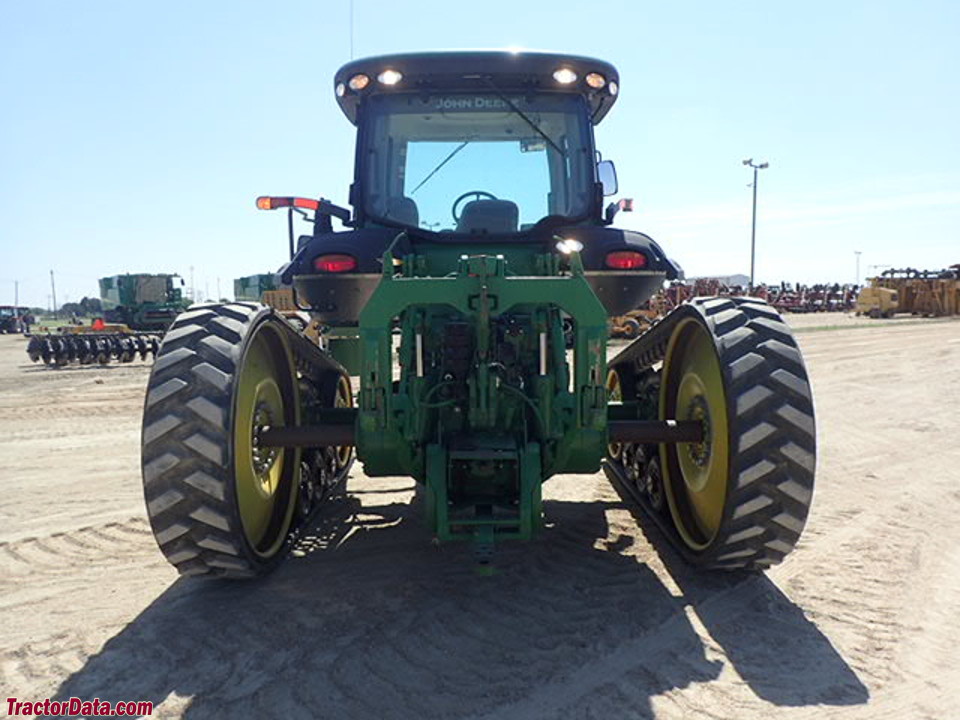

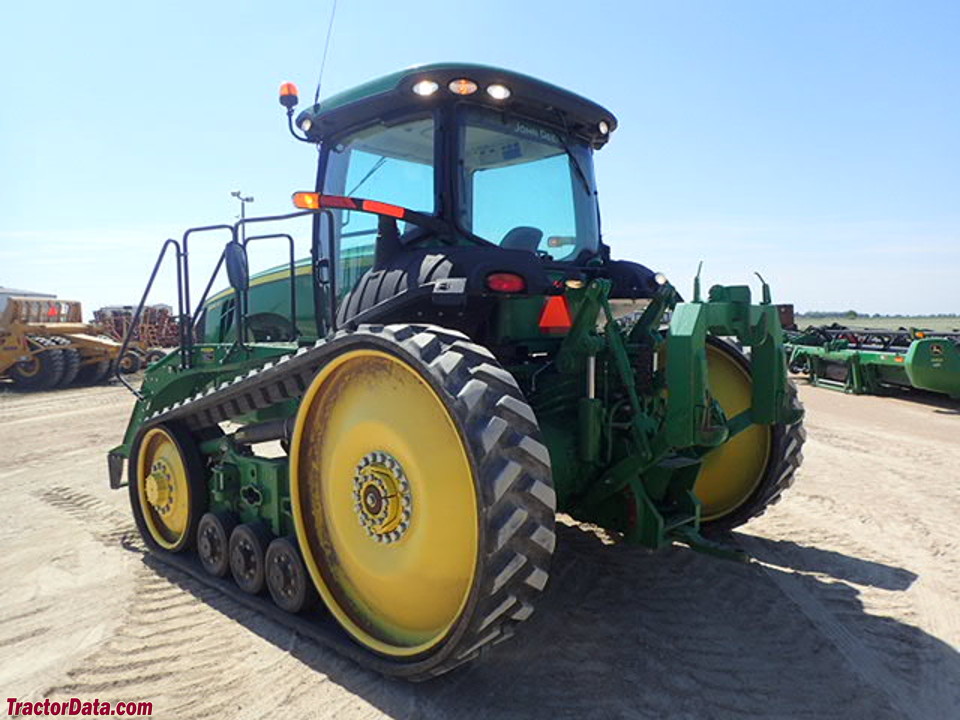

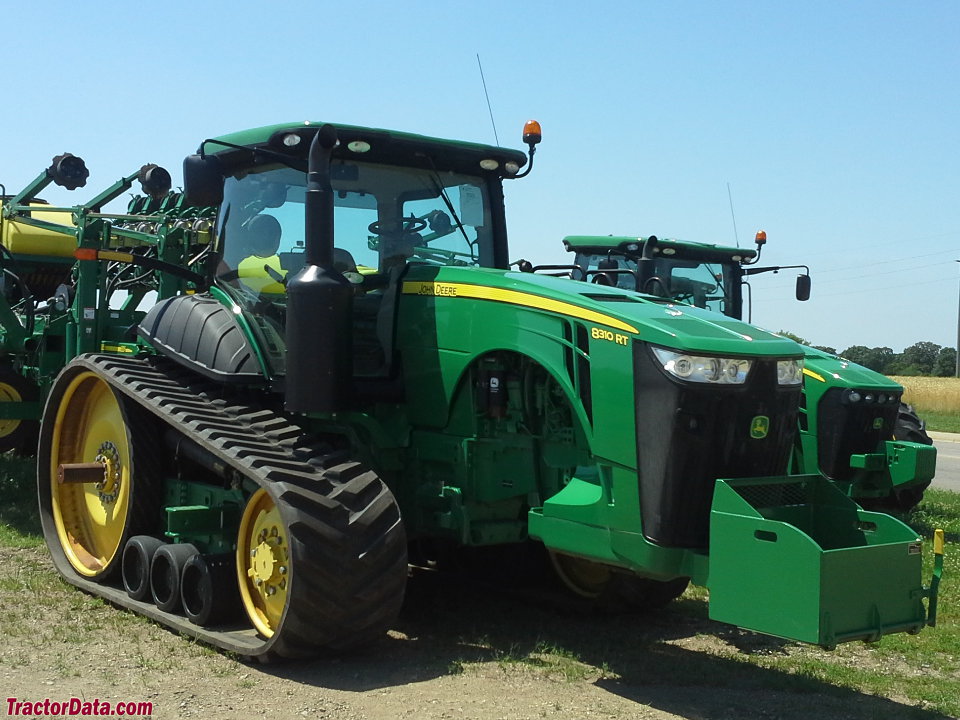

John Deere 8310RT

Name: John Deere 8310RT
Brand: John Deere

John Deere 8310RT — 8R Series · 310 hp. Reference specifications; pending source verification.

The John Deere 8310RT is a tractor with a rated power output of 310 horsepower, placing it in the higher power category within its class. Produced between 2011 and 2013, the 8310RT features a 6-cylinder turbocharged diesel liquid-cooled engine and a tracked undercarriage paired with a powershift transmission, with an operating weight of 17,690 kilograms. It is suitable for operations covering 1,500 or more acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

310 hp

Max power

223.3 kW

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

310 hp

Recorded weight

17690 kg

Transmissions

16-speed full power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

The John Deere 8310RT was re-tested at Nebraska (Test 1998A) to reflect the new three-point lift capacity for the 2012 model year.Reference

DrivecrawlerReference

Steeringelectro-hydraulic powerReference

CommandView II cab standard with heat and air-conditioning.Reference

Variants

8310Rwheeled tractorReference

8310RTtracked tractorReference

Engine

John Deere 9.0L 6-cyl dieselReference

Engine (gross)231.2 kWReference

Engine (max)254.3 kWReference

Drawbar (tested)168.6 kWReference

John Deere PowerTech PSXReference

dual turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Optional engine Intelligent Power Management (IPM) adds 35 horsepower at rated speed.Reference

Displacement9.0 LReference

Bore/Stroke118 x 136 mmReference

EmissionsInterim Tier IVReference

EmissionsStage IIIBReference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (gross)231.2 kWReference

Maximum Power (gross)254.3 kWReference

Maximum Power (gross)266.2 kWReference

Air cleanerdual stage with aspirationReference

Compression16:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity25.0 LReference

Oil change250 hReference

Oil change500 h (with JD Plus-50 II)Reference

Coolant capacity41.0 LReference

Max power223.3 kWReference

Power at rated engine speed200.4 kWReference

Max power168.6 kWReference

Transmission

16-speed full power shiftReference

infinitely variable transmission (IVT)Reference

TransmissionJohn Deere Automatic PowerShiftReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

TransmissionJohn Deere AutoPowrReference

Typeinfinitely variable transmission (IVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)184.2 kWReference

PTO (tested)223.3 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure200.0 barReference

Rear valves3 to 5Reference

Pump flow132.5 lpmReference

Total flow227.1 lpmReference

Rear Type4N/3Reference

Rear lift (at 24"/610mm)8754 kgReference

Rear lift (at 24"/610mm)9072 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1-3/4)Reference

Power at rated PTO speed217.5 kWReference

Dimensions

Wheelbase251 cmReference

16-inch tracksReference

Length688 cmReference

Width341 cmReference

Width443 cmReference

Height (cab)333 cmReference

Ballasted weight17690 kgReference

Max weight19958 kgReference

Clearance (drawbar)39 cmReference

8310RT Serial Number Location

Serial number on the right side of main tractor frame, below the engine.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

John Deere 8310RT Tracks

Width40 cmReference

Width45 cmReference

Width60 cmReference

Width63 cmReference

Width76 cmReference

Test results

OECD 1998: diesel PowerShift crawlerReference

OECD 1998A: diesel PowerShift crawlerReference

Diesel PowerShift crawlerSeptember 13 - 27, 2011Link: OCED Tractor Test 1998 fileReference

PTO performanceReference

Fuel use60.2 l/hourReference

Fuel use56.4 l/hourReference

Fuel use59.8 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull15907 kgReference

Gear 3 used for pull test.Reference

Diesel PowerShift crawlerSeptember 13 - 27, 2011Link: OCED Tractor Test 1998A fileReference

Speeds

Speed R3 at 2300 RPM and R4 at 1500 RPM.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
