Tractor · 2011Unverified

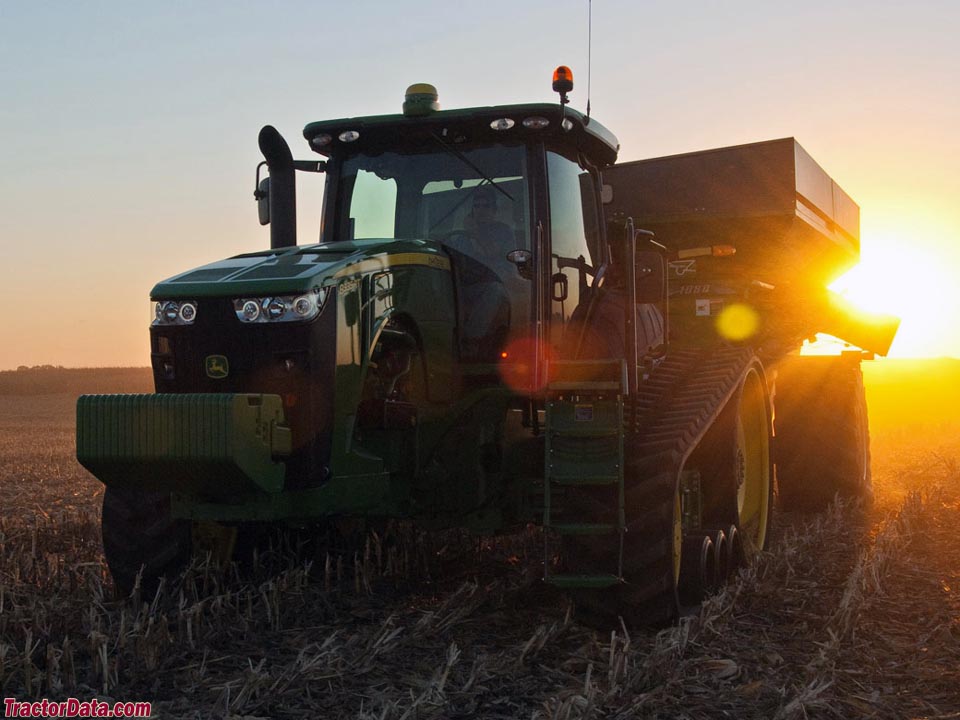

John Deere 8335RT
John Deere 8335RT — 8R Series · 335 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
335 hp
Max power
241.1 kW
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
The John Deere 8335RT was re-tested at Nebraska (Test 1999A) to reflect the new three-point lift capacity for the 2012 model year.Reference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
CommandView II cab standard with heat and air-conditioning.Reference
Variants

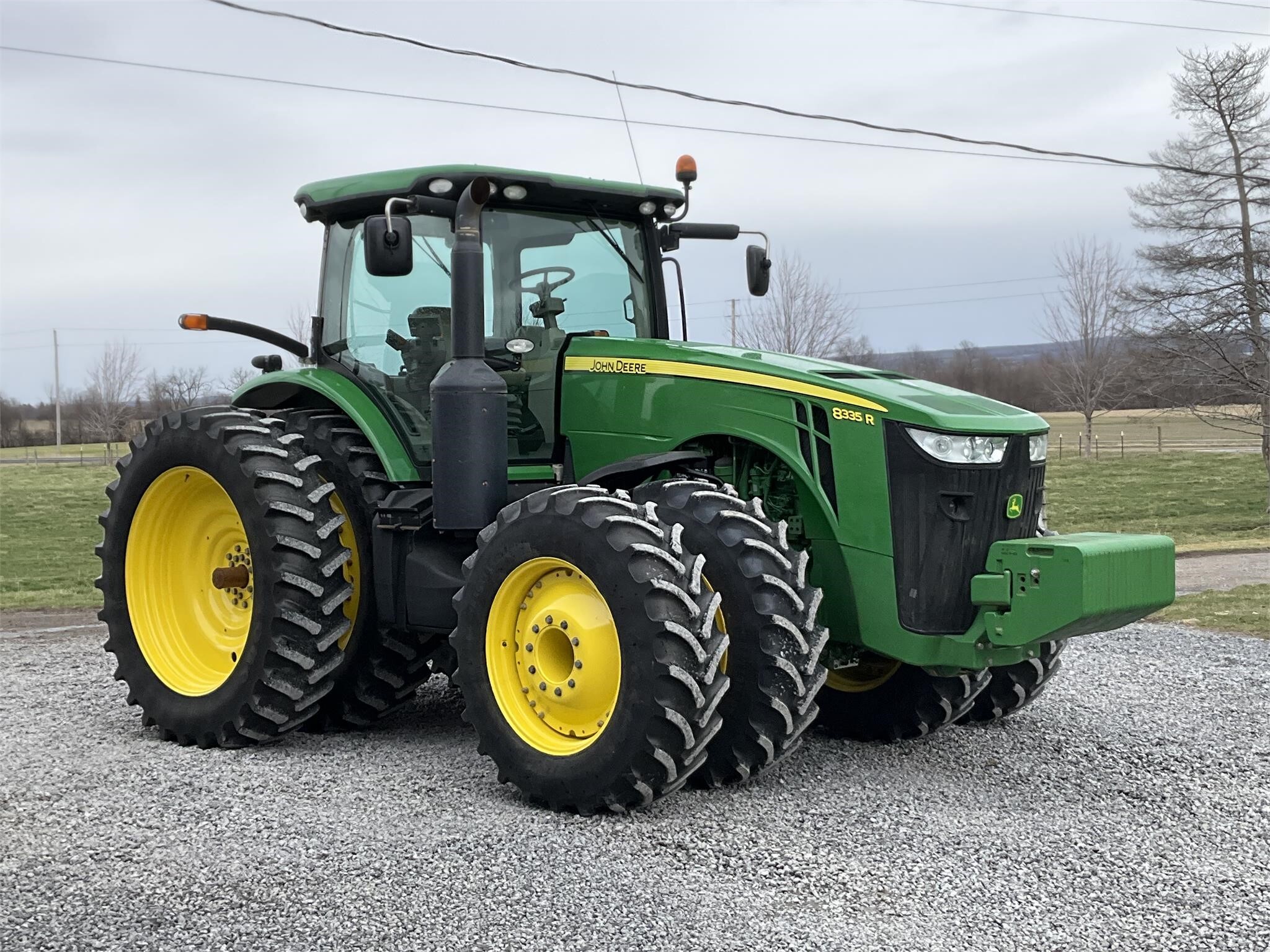

8335Rwheeled tractorReference
8335RTtracked tractorReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)249.8 kWReference
Engine (max)275.2 kWReference
Drawbar (tested)186.9 kWReference
John Deere PowerTech PSXReference
dual turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Optional engine Intelligent Power Management (IPM) adds 35 horsepower at rated speed.Reference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsInterim Tier IVReference
EmissionsStage IIIBReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)249.8 kWReference
Maximum Power (gross)275.2 kWReference
Maximum Power (gross)285.6 kWReference
Air cleanerdual stage with aspirationReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity25.0 LReference
Oil change250 hReference
Oil change500 h (with JD Plus-50 II)Reference
Coolant capacity41.0 LReference
Max power241.1 kWReference
Power at rated engine speed216.7 kWReference
Max power186.9 kWReference
Transmission
16-speed full power shiftReference
infinitely variable transmission (IVT)Reference
TransmissionJohn Deere Automatic PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
TransmissionJohn Deere AutoPowrReference
Typeinfinitely variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)199.8 kWReference
PTO (tested)241.1 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Rear valves3 to 5Reference
Pump flow132.5 lpmReference
Total flow227.1 lpmReference
Rear Type4N/3Reference
Rear lift (at 24"/610mm)8754 kgReference
Rear lift (at 24"/610mm)9072 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed235.2 kWReference
Dimensions
Wheelbase251 cmReference
16-inch tracksReference
Length688 cmReference
Width341 cmReference
Width443 cmReference
Height (cab)333 cmReference
Ballasted weight17690 kgReference
Max weight19958 kgReference
Clearance (drawbar)39 cmReference
8335RT Serial Number Location
Serial number on the right side of main tractor frame, below the engine.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 8335RT Tracks
Width40 cmReference
Width45 cmReference
Width60 cmReference
Width63 cmReference
Width76 cmReference
Test results
OECD 1999: diesel PowerShift crawlerReference
OECD 1999A: diesel PowerShift crawlerReference
Diesel PowerShift crawlerSeptember 15 - 27, 2011Link: OCED Tractor Test 1999 fileReference
PTO performanceReference
Fuel use65.5 l/hourReference
Fuel use60.6 l/hourReference
Fuel use64.7 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull15786 kgReference
Gear 4 used for pull test.Reference
Diesel PowerShift crawlerSeptember 15 - 27, 2011Link: OCED Tractor Test 1999A fileReference
Speeds
Speed R3 at 2300 RPM and R4 at 1500 RPM.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
