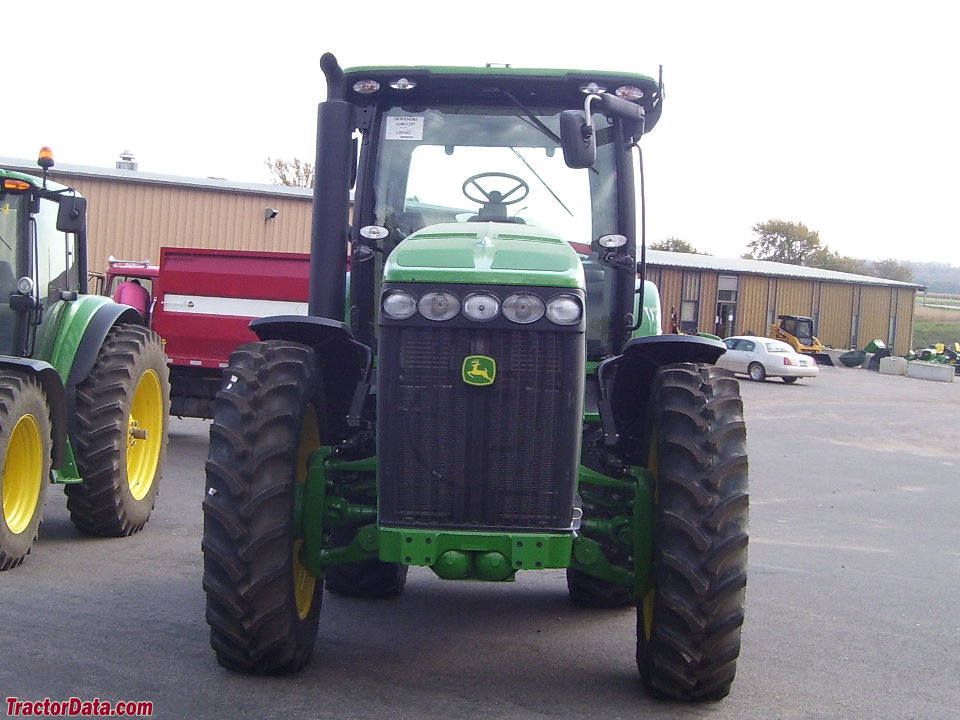

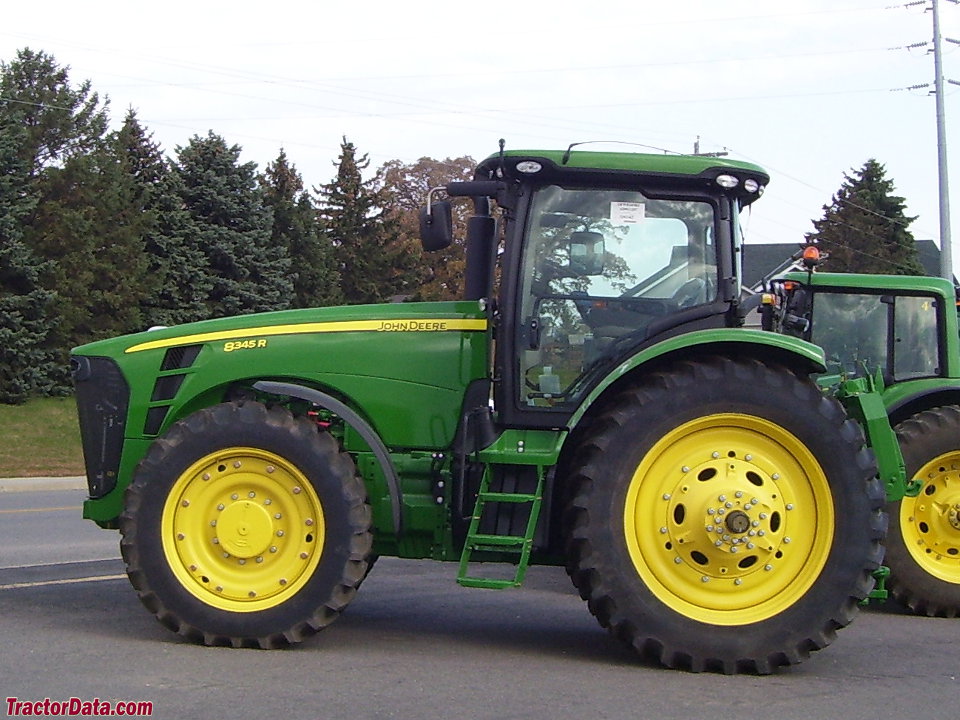

John Deere 8345R
John Deere 8345R — 8R Series · 345 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
345 hp
Max power
242.4 kW
Weight
25868 to 28902 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
CommandView cab standard with heat and air-conditioning. Optional automatic temperature controls, electronically-controlled mirrors, sun shades, instructor seat, and front/rear windshield wipers.Reference
Variants
8345RTcrawler tractorReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)257.3 kWReference
Engine (net)246.1 kWReference
Drawbar (tested)186.2 kWReference
John DeereReference
variable geometry turbocharger dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 3Reference
EmissionsStage IIIAReference
Rated Power (net)246.1 kWReference
Rated Power (gross)257.3 kWReference
Air cleanerdual paper elementsReference
Compression16.3:1Reference
Rated RPM2100Reference
Operating RPM1500-2100Reference
Starter volts12Reference
Coolant capacity40.0 LReference
Oil capacity27.9 LReference
Max power242.4 kWReference
Max power186.2 kWReference
PTO & Hydraulics
PTO (claimed)211.8 kWReference
PTO (tested)242.4 kWReference
Hydraulic system151.4 LReference
Hydraulic system159.0 LReference
Typeclosed center, pressrue and flow compensatedReference
Capacity151.4 LReference
Capacity159.0 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow132.5 lpmReference
Total flow166.5 lpmReference
Total flow227.1 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)8300 kgReference
Front Hitchoptional with ILSReference
Front lift4989 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Rear PTO Type540/1000 (1-3/8 optional)Reference
Capacities
Fuel681.3 LReference
Dimensions
Wheelbase305 cmReference
Wheelbase302 cmReference
Weight25868 to 28902 poundsReference
Front tire420/85R34Reference
Rear tire480/80R50Reference
Ag front420/85R34Reference
Ag rear480/80R50Reference
Length612 cmReference
Height (cab)324 cmReference
Shipping weight11733 kgReference
Shipping weight13109 kgReference
Ground clearance68 cmReference
Ground clearance58 cmReference
Front tread152 to 365 cmReference
8345R Serial Number Location
Serial number plate on the front-right of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel IVT 4WDMay 11 - June 4, 2010Link: OCED Tractor Test 1972 fileReference
PTO performanceReference
Fuel use65.5 l/hourReference
Drawbar performanceReference
Fuel use58.7 l/hourReference
Gear 5.6-MPH used for power test.Reference
Max pull12303 kgReference
Gear 3.5-MPH used for pull test.Reference
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)Reference
Gearsinfinite forward and reverseReference
Oil capacity151.4 LReference
Oil capacity159.0 LReference
The IVT is available with either a 40 km/h or 50 km/h maximum speed.Reference
Speeds
With 480/80R50 rear tires.Reference
