Tractor · 2009Unverified

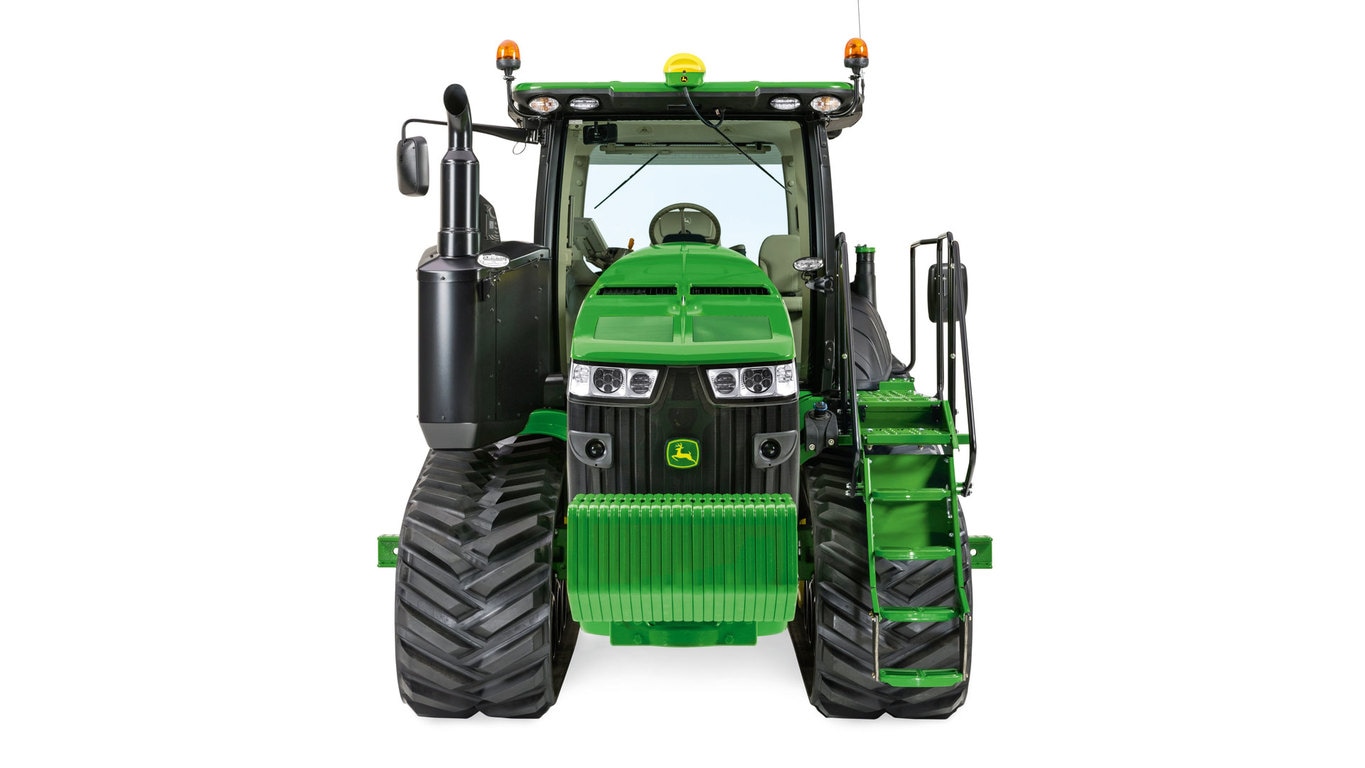

John Deere 8345RT
John Deere 8345RT — Agricultural Crawler tractor · 345 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
345 hp
Max power
237.8 kW
Weight
15585 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
Hydraulic wet disc brakesReference
CommandView cab standard with heat and air-conditioning. Optional automatic temperature control, mirros, and front/rear windshield wipers.Reference
Variants
8345Rwheeled tractorReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)257.3 kWReference
Engine (net)246.1 kWReference
Engine (max)281.9 kWReference
Drawbar (tested)179.1 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 3Reference
EmissionsStage IIIAReference
Rated Power (net)246.1 kWReference
Rated Power (gross)257.3 kWReference
Maximum Power (gross)281.9 kWReference
Air cleanerdual paper elementsReference
Compression16.3:1Reference
Rated RPM2100Reference
Operating RPM1500-2100Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity40.0 LReference
Oil capacity25.6 LReference
Oil change250 hReference
Oil change375 h (JD Plus-50 II oil)Reference
Max power237.8 kWReference
Power at rated engine speed207.9 kWReference
Max power179.1 kWReference
PTO & Hydraulics
PTO (claimed)209.5 kWReference
PTO (tested)237.8 kWReference
Hydraulic system258.5 LReference
Typeclosed center pressure-flow compensatedReference
Capacity258.5 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow132.5 lpmReference
Total flow166.5 lpmReference
Total flow227.1 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)8754 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed228.4 kWReference
Capacities
Fuel757.0 LReference
Dimensions
Wheelbase251 cmReference
Weight15585 kgReference
25-inch tracksReference
Length567 cmReference
Width381 cmReference
Height (cab)332 cmReference
Shipping weight15585 kgReference
Clearance (rear axle)62 cmReference
Clearance (drawbar)37 cmReference
8345RT Serial Numbers
Location:Right side of tractor.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 8345RT Tracks
Width63 cmReference
Width40 cmReference
Width45 cmReference
Width60 cmReference
Width76 cmReference
Test results
Diesel IVT crawlerMay 5 - 21, 2010Link: OCED Tractor Test 1973 fileReference
PTO performanceReference
Fuel use65.5 l/hourReference
Fuel use59.0 l/hourReference
Fuel use64.0 l/hourReference
Drawbar performanceReference
Fuel use58.3 l/hourReference
Gear 5.1-MPH used for power test.Reference
Max pull15518 kgReference
Gear 2.6-MPH used for pull test.Reference
Transmission
TransmissionInfinitely Variable Transmission (IVT)Reference
Gearsinfinite forward and reverseReference
Oil capacity258.6 LReference
Oil typeJD Hy-GardReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
